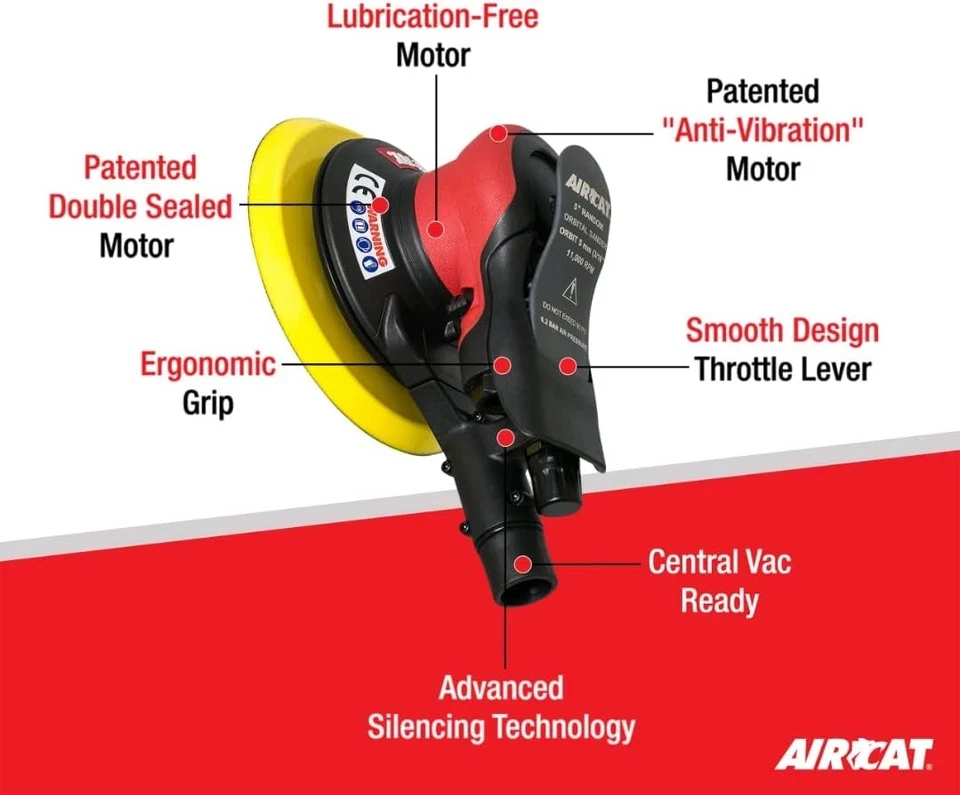

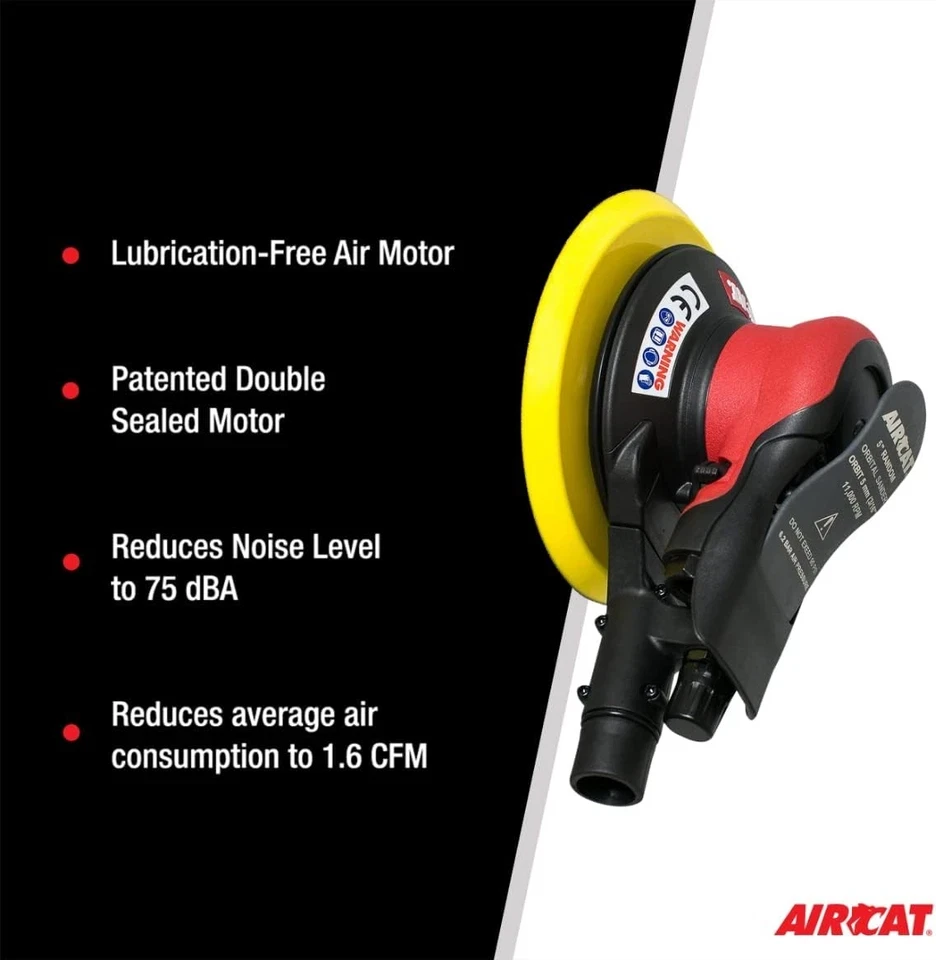

Built for professional surface preparation, blending, and finishing applications, the AIRCAT 6700-5-336 Non Vac Orbital Palm Sander delivers 11,000 RPM free speed with a larger 5" pad size for efficient sanding across automotive, fabrication, and maintenance surfaces. The 3/16" orbit provides a wider orbital sanding pattern suited for material removal, surface blending, and finishing operations, while the hook and loop attachment allows quick abrasive changes.
The AIRCAT 6700-5-336 features a non-vacuum orbital palm sander configuration designed for controlled sanding applications where external dust extraction is not required. Its 5" pad size provides broader surface coverage than smaller detail sanders, making it a practical option for technicians working on larger panels and general finishing tasks.
Type: Non Vac Orbital Palm Sander | Model: 6700-5-336 | Pad Size: 5" | Free Speed: 11,000 RPM | Orbit Diameter: 3/16" | Pad Attachment: Hook & Loop
Features:
- Non-vacuum orbital palm sander design provides a compact solution for general sanding and surface finishing work.

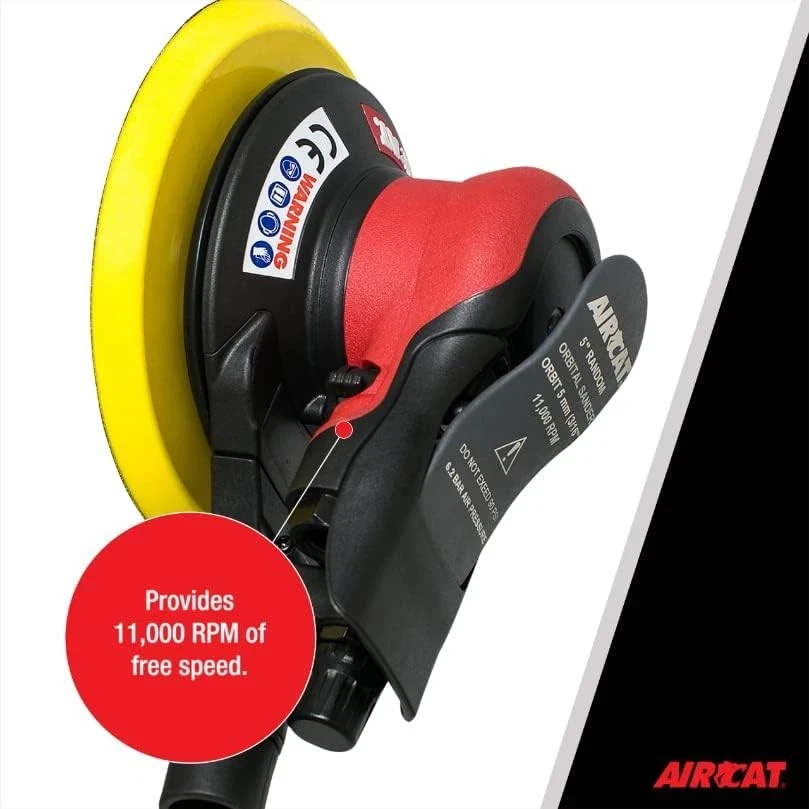

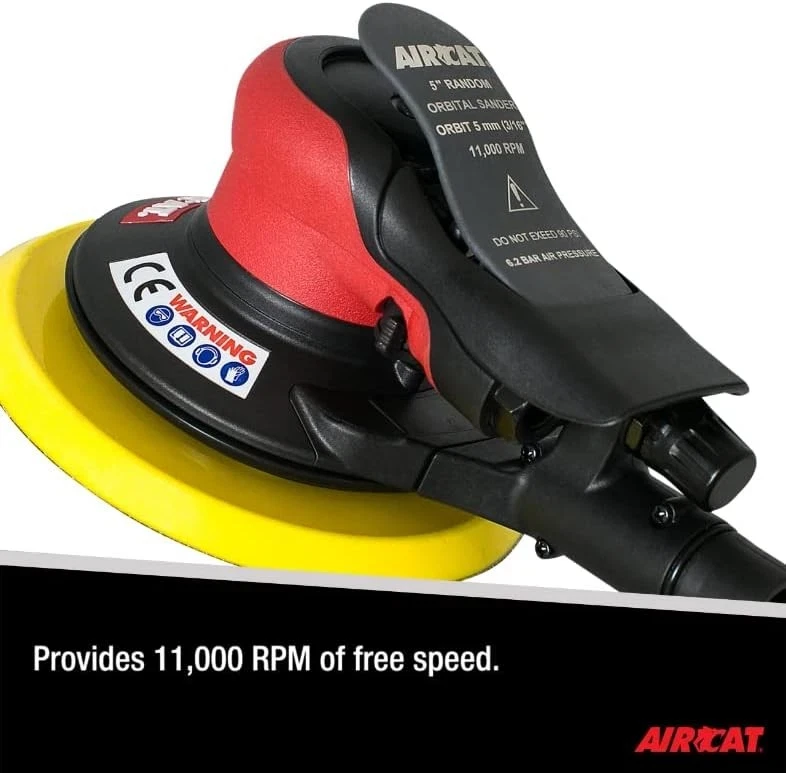

- 11,000 RPM free speed delivers rapid abrasive movement for sanding and blending applications.
- 5" pad size provides increased surface coverage for larger sanding areas compared with smaller detail pads.
- 3/16" orbit creates a broader sanding pattern for material removal and surface preparation tasks.
- Hook and loop pad attachment allows fast changes between compatible sanding discs.
- Palm-style configuration supports operator control during extended sanding applications.
Applications:
- Automotive refinishing: preparing panels, blending repair areas, and smoothing surfaces before coating applications.
- Body shops and restoration facilities: performing sanding operations on vehicle surfaces where controlled orbital action is required.
- Metal fabrication: finishing fabricated parts, removing surface imperfections, and preparing components for additional processing.
- Industrial maintenance and MRO: supporting surface preparation tasks on equipment parts and assemblies.
- General workshop projects: providing pneumatic sanding capability for repair, restoration, and finishing work.
FAQs:
- Q: What is the advantage of a 5" orbital palm sander?
A: A 5" pad provides a larger sanding surface compared with smaller pads, allowing technicians to cover more area during general surface preparation and finishing tasks. - Q: What does a 3/16" orbit mean on the AIRCAT 6700-5-336?
A: Orbit size describes the movement pattern of the sanding pad. A 3/16" orbit provides a wider sanding action suited for blending and material removal applications. - Q: What abrasives fit this AIRCAT sander?
A: The tool uses a 5" pad with hook and loop attachment. Use compatible 5" hook and loop sanding discs for the intended application. - Q: Is the AIRCAT 6700-5-336 a vacuum sander?
A: This model is identified as a non-vacuum orbital palm sander and does not include a vacuum extraction configuration.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |
Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Tools Impact Wrenches? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Orbital Palm Sander
- Pad Size (in.)
- 5
- Pad Thread (in.)
- 5/16 x 24
- Orbit (in.)
- 3/16
- Pad Type
- Hook & Loop
- RPM
- 11000
- Noise Level d(B)A
- 75
- Vibration m/sec2
- 1.8
