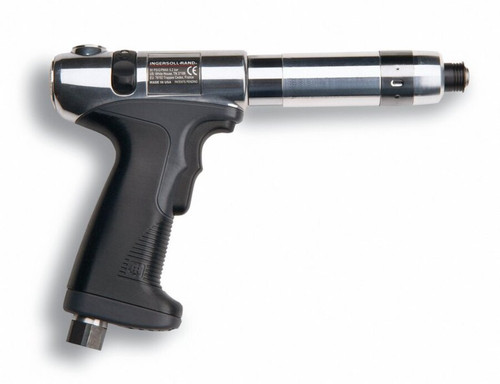

Ingersoll Rand QP1S10C1TD Pistol Grip Air Screwdriver is a pneumatic fastening tool engineered for precision assembly applications requiring repeatable torque and dependable fastening control. Featuring a 1,000 RPM free speed, a 2.7–39.8 in-lbs torque range, and an adjustable cushion clutch, this screwdriver is designed to deliver consistent fastening performance across repetitive production operations.
QP1S10C1TD combines a pistol-grip configuration with an adjustable cushion clutch that disengages smoothly when the preset torque is reached, helping improve fastening consistency and reducing the likelihood of overtightening. Its balanced operating speed and low-torque range make it well-suited for general industrial assembly, where precision and operator comfort are priorities.
Tool Type: Pistol Grip Air Screwdriver | Free Speed: 1,000 RPM | Torque Range: 2.7–39.8 in-lbs | Clutch Type: Adjustable Cushion Clutch
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring controlled low-torque fastening.
- Automotive component, electronics, and appliance manufacturing.
- Light mechanical assembly where repeatable torque output is essential.
- Production workstations performing repetitive screwdriving operations.
- Precision fastening applications that benefit from an adjustable cushion clutch.
FAQs:
- Q: What torque range does the QP1S10C1TD provide?
A: This pistol grip air screwdriver offers an adjustable torque range of 2.7–39.8 in-lbs. - Q: What is an adjustable cushion clutch?
A: An adjustable cushion clutch disengages smoothly as the preset torque is reached, helping provide controlled, repeatable fastening performance. - Q: What is the operating speed of this screwdriver?
A: The QP1S10C1TD operates at a free speed of 1,000 RPM. - Q: Why choose a pistol grip screwdriver?
A: The pistol grip configuration offers a comfortable hand position and improved control during repetitive assembly operations. - Q: What applications is this tool designed for?
A: It is intended for precision assembly and production fastening applications that require controlled torque, consistent fastening results, and reliable pneumatic performance.

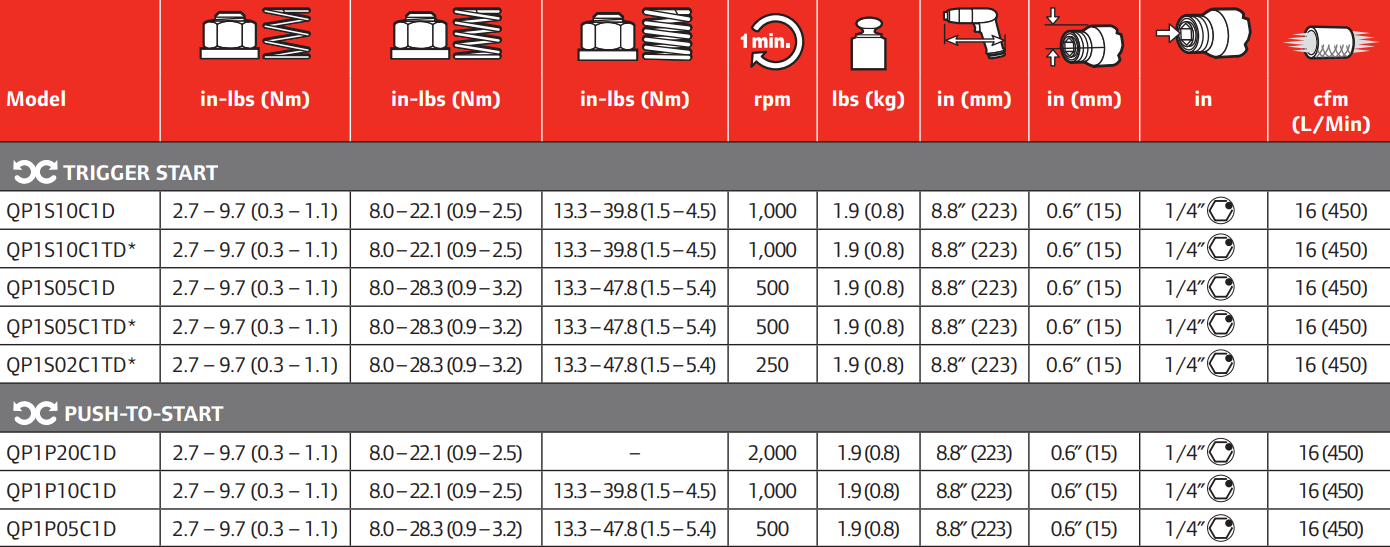

| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Chuck Diameter | Drive Size | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | CFM (L/MIN) | |
| Push-to-Start | |||||||||
| QP1P20C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger Start | |||||||||
| QP1S10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S10C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S02C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 250 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger + Push-to-Start | |||||||||
| QP1T10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
