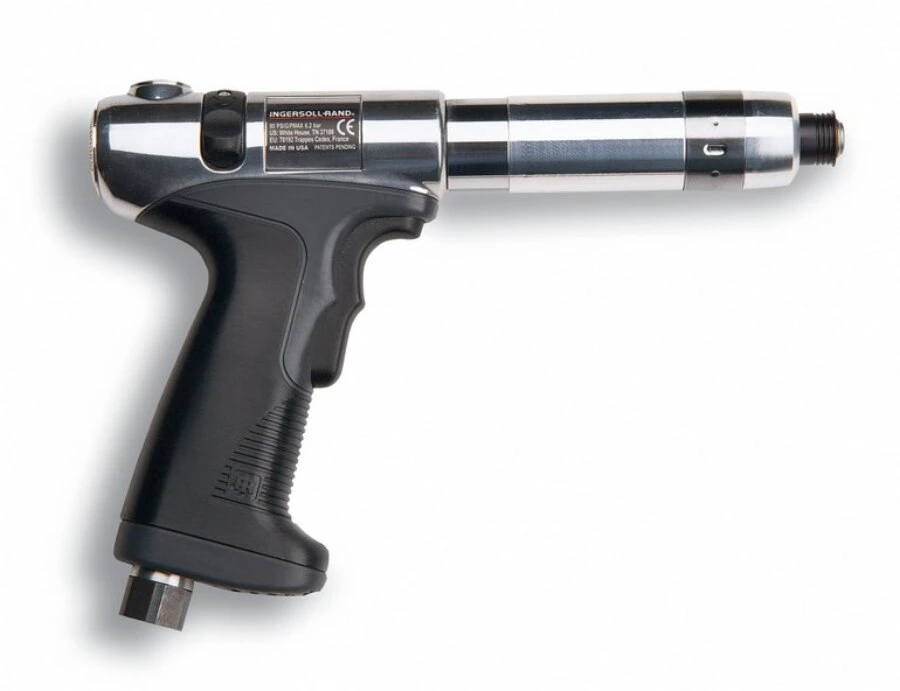

Ingersoll Rand QP1S05C1TD Pistol Grip Air Screwdriver is a pneumatic fastening tool designed for precision assembly applications where controlled speed and repeatable torque are essential. Equipped with a 500 RPM free speed, a 2.7–47.8 in-lbs torque range, and an adjustable cushion clutch, this screwdriver delivers smooth, consistent fastening performance for repetitive production environments.
QP1S05C1TD combines an ergonomic pistol grip with an adjustable cushion clutch that disengages gradually as the preset torque is reached, helping improve fastening consistency while reducing the potential for overtightening. Its lower operating speed provides increased control, making it well suited for precision fastening tasks in general industrial assembly.
Tool Type: Pistol Grip Air Screwdriver | Free Speed: 500 RPM | Torque Range: 2.7–47.8 in-lbs | Clutch Type: Adjustable Cushion Clutch
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring controlled low-speed fastening.
- Electronics, appliance, and automotive component manufacturing.
- Precision mechanical assembly where repeatable torque is important.
- Production workstations performing repetitive screwdriving operations.
- Assembly applications that benefit from the smooth engagement of an adjustable cushion clutch.
FAQs:
- Q: What torque range does the QP1S05C1TD provide?
A: This pistol grip air screwdriver offers an adjustable torque range of 2.7–47.8 in-lbs. - Q: What is the purpose of the adjustable cushion clutch?
A: The adjustable cushion clutch disengages smoothly at the preset torque, helping provide consistent fastening performance and improved torque control. - Q: What is the operating speed of this screwdriver?
A: The QP1S05C1TD operates at a free speed of 500 RPM. - Q: Why is a 500 RPM screwdriver suitable for precision assembly?
A: The lower free speed allows operators to maintain greater control during fastening, making it well suited for applications requiring accurate torque application. - Q: What applications is this tool intended for?
A: It is designed for precision assembly and repetitive production fastening operations that require controlled torque, dependable pneumatic performance, and consistent fastening results.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Chuck Diameter | Drive Size | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | CFM (L/MIN) | |
| Push-to-Start | |||||||||
| QP1P20C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger Start | |||||||||
| QP1S10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S10C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S02C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 250 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger + Push-to-Start | |||||||||
| QP1T10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Grip Style
- Pistol
- Actuation
- Trigger Start
- Torque Range (in-lbs)
- 2.7 - 47.8
- RPM
- 500
- Length (in.)
- 8.8
- Side to Center (in.)
- 0.6
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 75
- Air Inlet
- 1/4" NPT
- Hose Size (in.)
- 1/4
