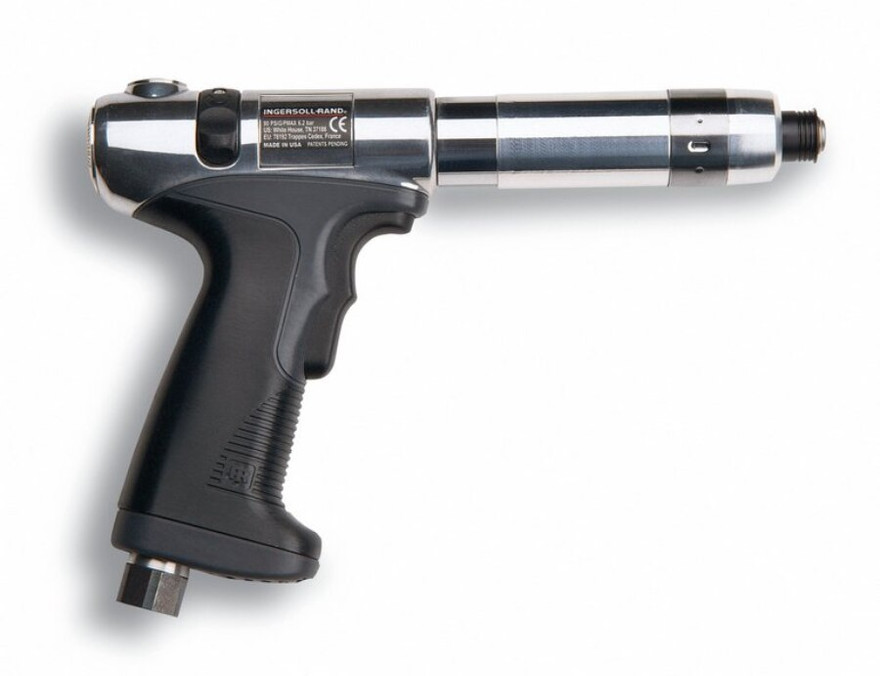

Ingersoll Rand QP1S02C1TD Pistol Grip Air Screwdriver is a pneumatic precision fastening tool designed for assembly applications that require maximum fastening control and repeatable low-torque performance. Equipped with a 250 RPM free speed, a 2.7–47.8 in-lbs torque range, and an adjustable cushion clutch, this screwdriver is well suited for precision production environments where controlled screw installation is essential.
QP1S02C1TD combines a comfortable pistol grip design with an adjustable cushion clutch that disengages smoothly as the preset torque is reached, helping deliver consistent fastening results. Its slower 250 RPM operating speed provides increased control during delicate assembly operations where accurate torque application is a priority.
Tool Type: Pistol Grip Air Screwdriver | Free Speed: 250 RPM | Torque Range: 2.7–47.8 in-lbs | Clutch Type: Adjustable Cushion Clutch
|
Features:
Made in USA: |
 |
Applications:
- Precision fastening in general industrial assembly operations.
- Electronics, appliance, and automotive component manufacturing.
- Light mechanical assembly requiring repeatable low-torque fastening.
- Production workstations performing controlled screwdriving operations.
- Assembly applications where slower operating speed enhances fastening accuracy.
FAQs:
- Q: What torque range does the QP1S02C1TD provide?
A: This pistol grip air screwdriver offers an adjustable torque range of 2.7–47.8 in-lbs. - Q: What is the advantage of the 250 RPM free speed?
A: The lower operating speed provides enhanced control for precision fastening applications where accurate screw installation is important. - Q: What does the adjustable cushion clutch do?
A: The adjustable cushion clutch disengages smoothly at the preset torque, helping improve fastening consistency and reduce the chance of overtightening. - Q: Is this tool suitable for repetitive production work?
A: Yes, it is designed for repetitive industrial assembly operations requiring controlled torque and consistent fastening performance. - Q: What applications is this screwdriver intended for?
A: It is intended for precision assembly and production fastening tasks where low-speed operation and repeatable torque are essential.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Chuck Diameter | Drive Size | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | CFM (L/MIN) | |
| Push-to-Start | |||||||||
| QP1P20C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger Start | |||||||||
| QP1S10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S10C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S02C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 250 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger + Push-to-Start | |||||||||
| QP1T10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
