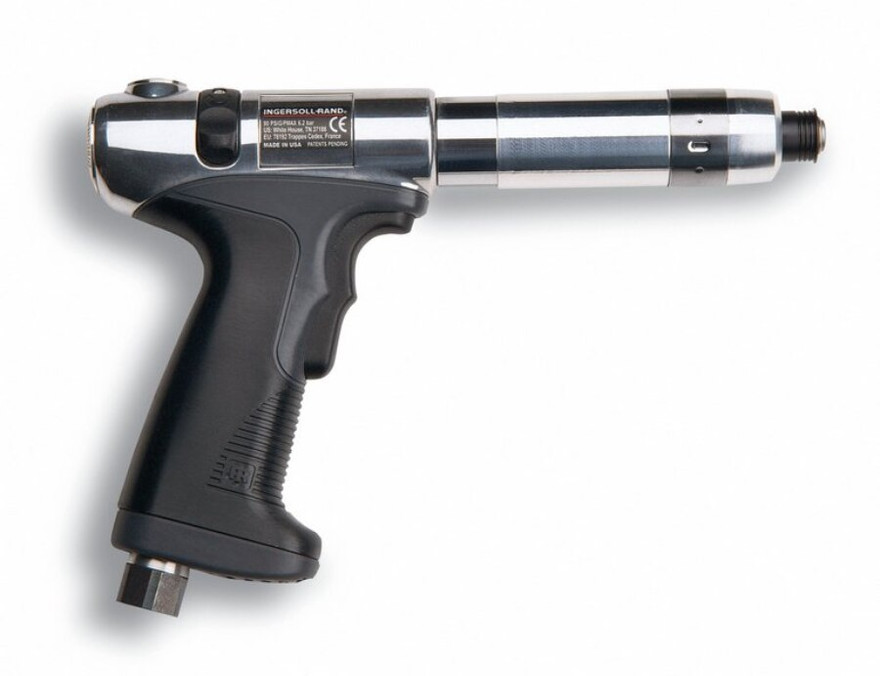

Ingersoll Rand QP1S10C1D Pistol Grip Air Screwdriver is a pneumatic fastening tool designed for precision assembly operations that require repeatable torque and operator control. Featuring a 1,000 RPM free speed, a 2.7–39.8 in-lbs torque range, and an adjustable cushion clutch, this screwdriver helps deliver consistent fastening performance while minimizing the risk of overtightening in repetitive production environments.
QP1S10C1D combines a comfortable pistol grip configuration with an adjustable cushion clutch, which gradually disengages as the preset torque is reached to provide smoother torque application. Its balanced speed and low-torque range make it well suited for general industrial assembly where precision fastening and operator comfort are important.
Tool Type: Pistol Grip Air Screwdriver | Free Speed: 1,000 RPM | Torque Range: 2.7–39.8 in-lbs | Clutch Type: Adjustable Cushion Clutch
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring controlled low-torque fastening.
- Automotive component, electronics, and appliance manufacturing.
- Light mechanical assembly where repeatable torque is important.
- Production workstations performing repetitive screwdriving operations.
- Precision fastening applications that benefit from adjustable clutch control.
FAQs:
- Q: What is the torque range of the QP1S10C1D?
A: This pistol grip air screwdriver has an adjustable torque range of 2.7–39.8 in-lbs. - Q: What is an adjustable cushion clutch?
A: An adjustable cushion clutch is designed to disengage smoothly as the preset torque is reached, helping provide controlled and repeatable fastening. - Q: What is the free speed of this screwdriver?
A: The QP1S10C1D operates at a free speed of 1,000 RPM. - Q: What are the benefits of the pistol grip design?
A: The pistol grip provides a natural hand position that enhances control and comfort during repetitive fastening tasks. - Q: What applications is this tool intended for?
A: It is designed for precision assembly and production fastening operations requiring controlled torque and consistent fastening performance.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Chuck Diameter | Drive Size | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | CFM (L/MIN) | |
| Push-to-Start | |||||||||
| QP1P20C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger Start | |||||||||
| QP1S10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S10C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S02C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 250 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger + Push-to-Start | |||||||||
| QP1T10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
