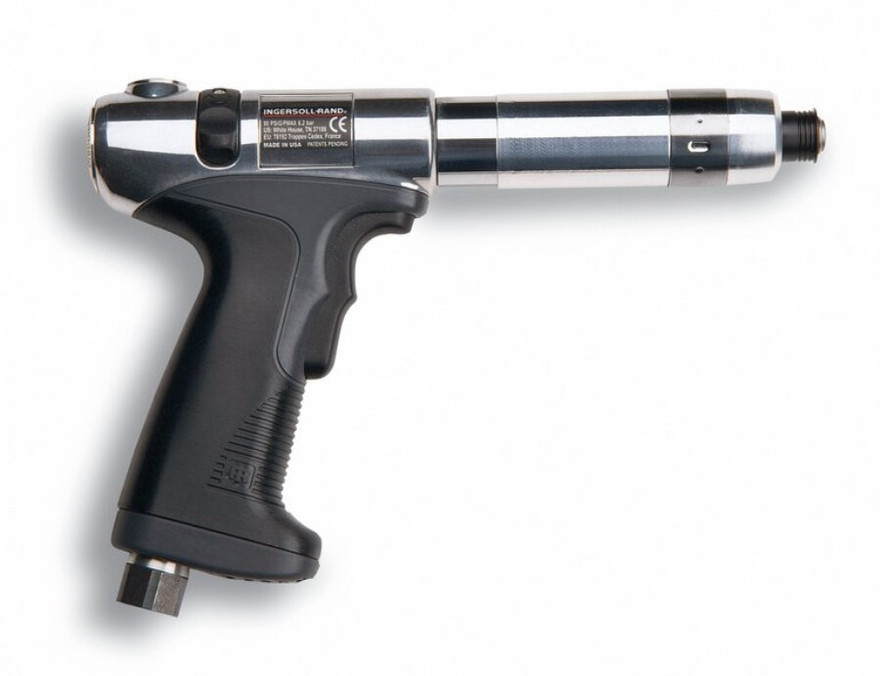

Ingersoll Rand QP1P10C1D Pistol Grip Air Screwdriver is a pneumatic precision fastening tool built for assembly applications that require reliable torque control and efficient production speeds. Featuring a 1,000 RPM free speed, a 2.7–39.8 in-lbs torque range, and an adjustable cushion clutch, this screwdriver is designed to deliver consistent fastening performance across repetitive industrial assembly operations.
QP1P10C1D combines an ergonomic pistol grip configuration with an adjustable cushion clutch that disengages smoothly as the preset torque is reached, helping improve fastening consistency while minimizing the possibility of overtightening. Its combination of controlled torque output and higher operating speed makes it well suited for precision fastening in general manufacturing environments.
Tool Type: Pistol Grip Air Screwdriver | Free Speed: 1,000 RPM | Torque Range: 2.7–39.8 in-lbs | Clutch Type: Adjustable Cushion Clutch
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring controlled low-torque fastening.
- Automotive component, electronics, and appliance manufacturing.
- Light mechanical assembly where repeatable fastening performance is essential.
- Production workstations performing repetitive screwdriving operations.
- Precision fastening applications benefiting from an adjustable cushion clutch.
FAQs:
- Q: What torque range does the QP1P10C1D provide?
A: This pistol grip air screwdriver offers an adjustable torque range of 2.7–39.8 in-lbs. - Q: What is the purpose of the adjustable cushion clutch?
A: The adjustable cushion clutch disengages smoothly at the preset torque to help improve fastening consistency and reduce the risk of overtightening. - Q: What is the operating speed of this screwdriver?
A: The QP1P10C1D operates at a free speed of 1,000 RPM. - Q: What are the benefits of the pistol grip configuration?
A: The pistol grip design provides a comfortable, ergonomic hand position that supports operator control during repetitive fastening tasks. - Q: What applications is this tool intended for?
A: It is designed for precision assembly and production fastening operations that require controlled torque, repeatable fastening performance, and reliable pneumatic operation.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Chuck Diameter | Drive Size | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | CFM (L/MIN) | |
| Push-to-Start | |||||||||
| QP1P20C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger Start | |||||||||
| QP1S10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S10C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S05C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1S02C1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 250 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| Trigger + Push-to-Start | |||||||||
| QP1T10C1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Grip Style
- Pistol
- Actuation
- Push to Start
- Torque Range (in-lbs)
- 2.7 - 39.8
- RPM
- 1000
- Length (in.)
- 8.8
- Side to Center (in.)
- 0.6
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 75
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 16
- Hose Size (in.)
- 1/4
