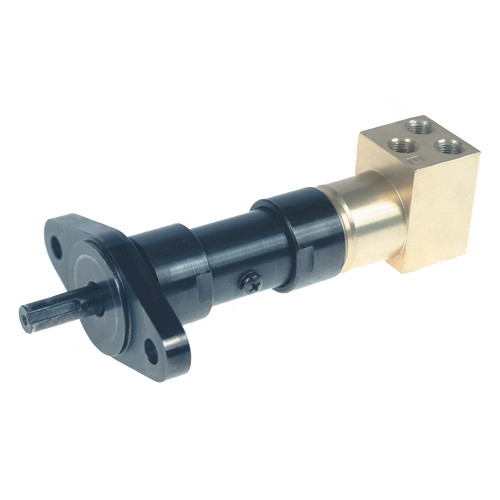

Ingersoll Rand M002RVR159AR3 Multi-Vane Reversible Air Motor | 0.11 HP | 132 RPM | 10.7 (ft-lbs) Starting Torque | 14.2 (ft-lbs) Stall Torque

Ingersoll Rand M002RVR159AR3 Multi-Vane Reversible Air Motor is configured for pneumatic drive applications where low rotational speed, higher torque capability, and bidirectional operation are key selection requirements. Rated at 0.11 HP and 132 RPM, this multi-vane air motor converts compressed-air energy into rotary motion for compatible machinery. Its reversible configuration supports equipment that requires both forward and reverse rotation during operation.

The M002RVR159AR3 develops 10.7 lb-ft starting torque, representing the torque available as the motor begins moving the connected load, and 14.2 lb-ft stall torque, representing torque developed when the load prevents rotation. Combined with its 132 RPM output, these specifications provide OEM designers, machine builders, and maintenance professionals with useful performance references when evaluating the motor for lower-speed pneumatic machinery or a compatible replacement installation.

Type: Multi-Vane Air Motor | Model: M002RVR159AR3 | Rotation: Reversible | Power: 0.11 HP | Speed: 132 RPM | Starting Torque: 10.7 lb-ft | Stall Torque: 14.2 lb-ft

Features:

• Multi-vane pneumatic design provides rotary output from a compatible compressed-air supply.
• Reversible configuration supports machinery requiring forward and reverse rotational operation.
• 0.11 HP rating provides a defined power specification for matching the motor to compatible driven equipment.
• 132 RPM output supports applications requiring low-speed pneumatic rotation.
• 10.7 lb-ft starting torque provides a reference for evaluating the motor's ability to initiate movement of the connected load.
• 14.2 lb-ft stall torque provides a reference for motor output when the applied load prevents rotation.

Made in USA:

Applications:

• OEM machinery requiring low-speed reversible pneumatic rotary power.
• Automated mechanisms that incorporate forward and reverse rotation into their operating sequence.
• Production equipment compatible with the motor's 132 RPM output and specified torque characteristics.
• Machine-building applications requiring compressed-air-powered bidirectional rotary motion.
• MRO replacement installations where the M002RVR159AR3 specifications and mechanical interfaces match the existing equipment.

FAQs:

• Q: Is the Ingersoll Rand M002RVR159AR3 reversible?
  A: Yes. The M002RVR159AR3 is specified as a reversible air motor for compatible machinery requiring rotation in either direction.
• Q: What is the operating speed of the M002RVR159AR3?
  A: The specified operating speed is 132 RPM.
• Q: How much starting torque does this air motor provide?
  A: The M002RVR159AR3 is rated at 10.7 lb-ft starting torque, representing the torque available as the motor begins moving the connected load.
• Q: What is the stall torque rating of this model?
  A: The specified stall torque is 14.2 lb-ft. Stall torque represents torque developed when the applied load prevents the motor output from rotating.
• Q: What should be checked before selecting the M002RVR159AR3 for an existing machine?
  A: Confirm that the required horsepower, operating speed, starting torque, stall torque, and reversible operation match the application. Shaft, mounting, dimensional, and compressed-air requirements should also be verified against the manufacturer catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
