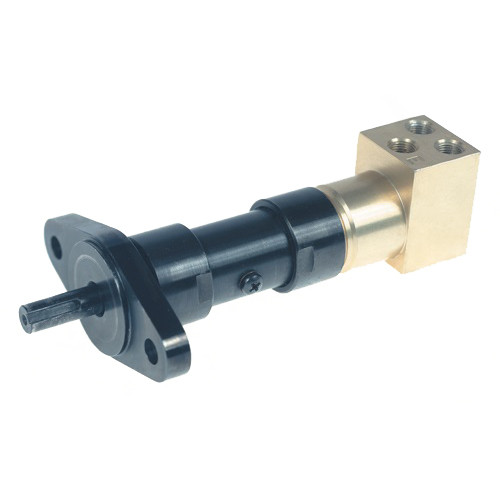

Ingersoll Rand M002RHR013AR3 Multi-Vane Non-Reversible Air Motor | 0.19 HP | 1,840 RPM | 1.36 (ft-lbs) Starting Torque | 1.82 (ft-lbs) Stall Torque

Ingersoll Rand M002RHR013AR3 Multi-Vane Non-Reversible Air Motor is configured for pneumatic rotary applications that require reduced operating speed with increased torque capability. Rated at 0.19 HP and 1,840 RPM, this multi-vane air motor converts compressed-air energy into continuous rotary motion for compatible machinery and equipment. Its non-reversible configuration is intended for installations where rotation is required in a single direction.

The M002RHR013AR3 develops 1.36 lb-ft starting torque, representing the torque available as the motor begins turning the connected load, and 1.82 lb-ft stall torque, representing torque at the point where rotation is stopped by the load. This combination of lower speed and higher torque characteristics makes the model relevant for OEM equipment, automated machinery, and replacement applications where its specific power and load ratings match the system requirements.

Type: Multi-Vane Air Motor | Model: M002RHR013AR3 | Rotation: Non-Reversible | Power: 0.19 HP | Speed: 1,840 RPM | Starting Torque: 1.36 lb-ft | Stall Torque: 1.82 lb-ft

Features:

• Multi-vane pneumatic design provides continuous rotary output from a compatible compressed-air supply.
• 0.19 HP rating provides a defined power specification for matching the motor to compatible machinery.
• 1,840 RPM speed supports applications that require lower-speed pneumatic rotary motion.
• 1.36 lb-ft starting torque helps determine whether the motor can initiate rotation of the connected load.
• 1.82 lb-ft stall torque provides a reference for evaluating motor output under a condition where the load prevents rotation.
• Non-reversible configuration is suited to systems requiring consistent single-direction operation.

Made in USA:

Applications:

• OEM machinery requiring lower-speed pneumatic rotary power.
• Automated equipment designed for continuous single-direction rotation.
• Machine-building applications compatible with the motor's specified horsepower, speed, and torque output.
• Production mechanisms and equipment powered by compressed air.
• MRO replacement installations where the M002RHR013AR3 specifications and mechanical interfaces match the existing system.

FAQs:

• Q: Is the Ingersoll Rand M002RHR013AR3 reversible?
  A: No. The M002RHR013AR3 is specified as a non-reversible air motor for applications requiring rotation in one direction.
• Q: What is the speed rating of the M002RHR013AR3?
  A: The supplied product information specifies an operating speed of 1,840 RPM.
• Q: How much starting torque does this air motor provide?
  A: The M002RHR013AR3 is rated at 1.36 lb-ft starting torque.
• Q: What is the stall torque rating?
  A: The specified stall torque is 1.82 lb-ft. Stall torque refers to torque developed when the motor output is prevented from rotating.
• Q: What should be checked when replacing an existing air motor with this model?
  A: Verify the required horsepower, speed, starting torque, stall torque, and non-reversible operation, along with the shaft, mounting, dimensions, and compressed-air requirements shown in the manufacturer catalog.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
