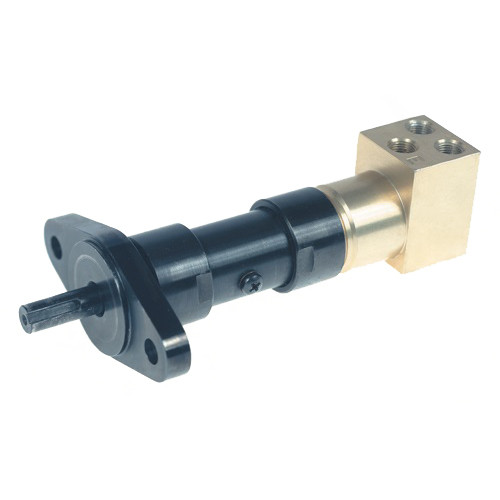

Ingersoll Rand M002RVR013AR3 Multi-Vane Reversible Air Motor | 0.14 HP | 1,645 RPM | 1.17 (ft-lbs) Starting Torque | 1.56 (ft-lbs) Stall Torque

Ingersoll Rand M002RVR013AR3 Multi-Vane Reversible Air Motor provides pneumatic rotary power for equipment that requires bidirectional operation at a reduced speed with increased torque compared with higher-speed configurations in the same motor family. Rated at 0.14 HP and 1,645 RPM, this multi-vane motor converts compressed-air energy into continuous rotary motion. Its reversible configuration supports machinery where changing the direction of rotation is required during operation.

The M002RVR013AR3 delivers 1.17 lb-ft starting torque, the torque available as the motor begins moving the connected load, and 1.56 lb-ft stall torque, the torque developed when the applied load prevents rotation. This combination of reversible operation, 1,645 RPM speed, and defined torque characteristics gives OEM designers and maintenance professionals useful selection data when matching an air motor to compatible machinery or replacing an existing pneumatic drive.

Type: Multi-Vane Air Motor | Model: M002RVR013AR3 | Rotation: Reversible | Power: 0.14 HP | Speed: 1,645 RPM | Starting Torque: 1.17 lb-ft | Stall Torque: 1.56 lb-ft

Features:

• Multi-vane pneumatic design converts compressed-air energy into continuous rotary output for compatible equipment.
• Reversible configuration accommodates machinery requiring rotation in either direction.
• 0.14 HP power rating provides a defined reference for matching the motor to the requirements of the driven mechanism.
• 1,645 RPM output supports applications requiring reduced-speed pneumatic rotary motion.
• 1.17 lb-ft starting torque helps determine whether the motor can initiate movement of the connected load.
• 1.56 lb-ft stall torque provides a reference for evaluating motor output when the applied load prevents rotation.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated mechanisms that use forward and reverse rotation during the operating cycle.
• Production equipment compatible with the motor's specified speed, horsepower, and torque characteristics.
• Machine-building applications where compressed air provides bidirectional rotary motion.
• MRO replacement installations where the M002RVR013AR3 performance ratings and mechanical interfaces match the existing system.

FAQs:

• Q: Can the Ingersoll Rand M002RVR013AR3 run in both directions?
  A: Yes. The M002RVR013AR3 is specified as a reversible air motor, allowing it to provide bidirectional rotation in compatible equipment.
• Q: What is the speed rating of this air motor?
  A: The supplied product information specifies a speed of 1,645 RPM.
• Q: How much starting torque does the M002RVR013AR3 provide?
  A: This model is rated at 1.17 lb-ft starting torque, representing the torque available as the motor begins moving the connected load.
• Q: What is the stall torque rating?
  A: The M002RVR013AR3 is specified at 1.56 lb-ft stall torque. Stall torque represents torque developed when the applied load prevents the motor output from rotating.
• Q: What should be checked before using the M002RVR013AR3 as a replacement motor?
  A: Confirm that the required horsepower, speed, starting torque, stall torque, and reversible operation match the existing application. Shaft, mounting, dimensional, and compressed-air requirements should also be verified against the manufacturer catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
