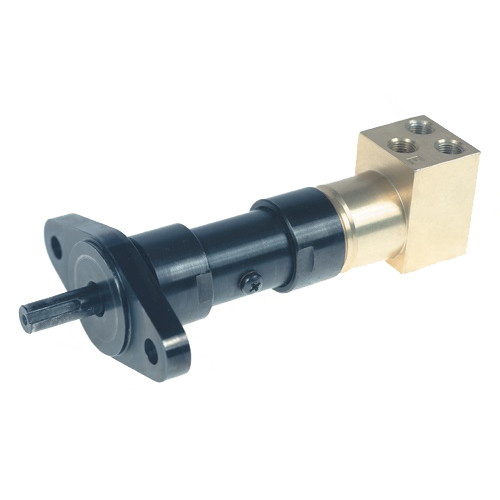

Ingersoll Rand M002RHR159AR3 Multi-Vane Non-Reversible Air Motor | 0.16 HP | 145 RPM | 13.1 (ft-lbs) Starting Torque | 17.5 (ft-lbs) Stall Torque

Ingersoll Rand M002RHR159AR3 Multi-Vane Non-Reversible Air Motor is configured for pneumatic drive applications requiring low rotational speed with increased torque capability. Rated at 0.16 HP and 145 RPM, this model uses a multi-vane design to convert compressed-air energy into continuous rotary output. Its non-reversible configuration is intended for machinery and equipment that require rotation in a single direction.

For machine builders and maintenance professionals evaluating low-speed air motor options, the M002RHR159AR3 provides 13.1 lb-ft starting torque and 17.5 lb-ft stall torque. Starting torque represents the torque available as the motor begins moving the connected load, while stall torque represents torque developed when the load prevents rotation. These ratings, combined with the 145 RPM output, provide key selection data for matching the motor to compatible OEM machinery, automated mechanisms, and replacement installations.

Type: Multi-Vane Air Motor | Model: M002RHR159AR3 | Rotation: Non-Reversible | Power: 0.16 HP | Speed: 145 RPM | Starting Torque: 13.1 lb-ft | Stall Torque: 17.5 lb-ft

Features:

• Multi-vane pneumatic motor design converts compressed-air energy into continuous rotary output.
• 0.16 HP rating provides a defined power specification for matching the motor to compatible driven equipment.
• 145 RPM output supports machinery requiring relatively low-speed pneumatic rotation.
• 13.1 lb-ft starting torque provides an important reference when evaluating the motor's ability to initiate movement of a connected load.
• 17.5 lb-ft stall torque helps machine designers assess motor output under a condition where the applied load prevents rotation.
• Non-reversible configuration supports equipment designed for continuous single-direction operation.

Made in USA:

Applications:

• OEM machinery requiring low-speed pneumatic rotary power.
• Automated mechanisms designed for continuous single-direction rotation.
• Production equipment compatible with the motor's 145 RPM output and specified torque characteristics.
• Machine-building applications where compressed air is used to power a rotary mechanism.
• MRO replacement installations where the M002RHR159AR3 performance ratings and mechanical interfaces match the existing equipment.

FAQs:

• Q: Is the Ingersoll Rand M002RHR159AR3 reversible?
  A: No. The M002RHR159AR3 is specified as a non-reversible air motor for applications requiring rotation in one direction.
• Q: What is the operating speed of the M002RHR159AR3?
  A: The supplied product information specifies an operating speed of 145 RPM.
• Q: How much starting torque does this air motor provide?
  A: The M002RHR159AR3 is rated at 13.1 lb-ft starting torque, representing the torque available as the motor begins moving the connected load.
• Q: What is the stall torque rating of this model?
  A: The specified stall torque is 17.5 lb-ft. Stall torque represents torque developed when the applied load prevents the motor output from rotating.
• Q: What should be verified before selecting the M002RHR159AR3?
  A: Confirm that the required horsepower, operating speed, starting torque, stall torque, and non-reversible operation match the application. Shaft, mounting, dimensional, and compressed-air requirements should also be verified against the manufacturer catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
