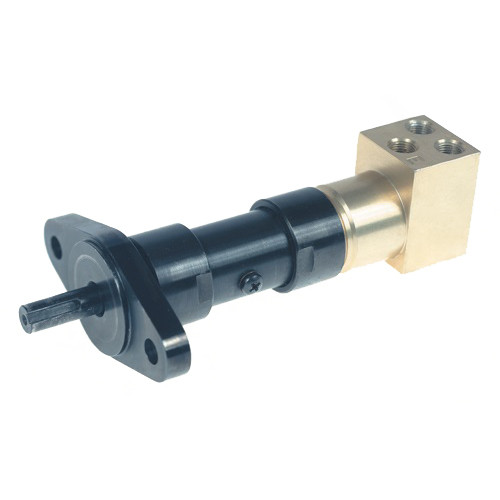

Ingersoll Rand M002RVR006AR3 Multi-Vane Reversible Air Motor | 0.17 HP | 3,860 RPM | 0.64 (ft-lbs) Starting Torque | 0.86 (ft-lbs) Stall Torque

Ingersoll Rand M002RVR006AR3 Multi-Vane Reversible Air Motor provides pneumatic rotary power for machinery requiring bidirectional operation with a balance of speed and torque. Rated at 0.17 HP and 3,860 RPM, this multi-vane motor converts compressed-air energy into continuous rotary motion. Its reversible configuration supports equipment and machine cycles where the direction of rotation must be changed during operation.

For OEM designers, machine builders, and maintenance professionals, the M002RVR006AR3 provides 0.64 lb-ft starting torque and 0.86 lb-ft stall torque. Starting torque identifies the torque available as the motor begins moving a connected load, while stall torque represents torque developed when the load prevents rotation. Together with the 3,860 RPM output, these ratings provide useful selection data for matching the motor to compatible automated equipment, production machinery, or replacement installations.

Type: Multi-Vane Air Motor | Model: M002RVR006AR3 | Rotation: Reversible | Power: 0.17 HP | Speed: 3,860 RPM | Starting Torque: 0.64 lb-ft | Stall Torque: 0.86 lb-ft

Features:

• Multi-vane pneumatic design converts compressed-air energy into continuous rotary output for compatible equipment.
• Reversible operation supports machinery that requires rotation in either direction as part of the operating cycle.
• 0.17 HP rating provides a defined power specification for matching the motor to the driven mechanism.
• 3,860 RPM speed provides a key reference when selecting the motor for compatible rotary equipment.
• 0.64 lb-ft starting torque helps determine whether the motor can initiate movement of the connected load.
• 0.86 lb-ft stall torque provides a reference for evaluating motor output when the applied load prevents rotation.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated mechanisms where bidirectional rotation is part of the machine cycle.
• Production equipment compatible with the motor's specified horsepower, speed, and torque characteristics.
• Machine-building applications using compressed air to provide reversible rotary motion.
• MRO replacement installations where the M002RVR006AR3 specifications and mechanical interfaces match the existing equipment.

FAQs:

• Q: Can the Ingersoll Rand M002RVR006AR3 operate in both directions?
  A: Yes. The M002RVR006AR3 is specified as a reversible air motor for compatible equipment requiring bidirectional rotary operation.
• Q: What is the speed rating of the M002RVR006AR3?
  A: The supplied product information specifies a speed of 3,860 RPM.
• Q: What starting torque does this model provide?
  A: The M002RVR006AR3 is rated at 0.64 lb-ft starting torque, which represents the torque available as the motor begins moving the connected load.
• Q: What is the stall torque of the M002RVR006AR3?
  A: The specified stall torque is 0.86 lb-ft. Stall torque represents torque developed when the applied load prevents the motor output from rotating.
• Q: What should be confirmed before using this motor as a replacement?
  A: Verify that the required horsepower, speed, starting torque, stall torque, and reversible operation match the existing application. Shaft, mounting, dimensional, and compressed-air requirements should also be checked against the manufacturer catalog before installation.
