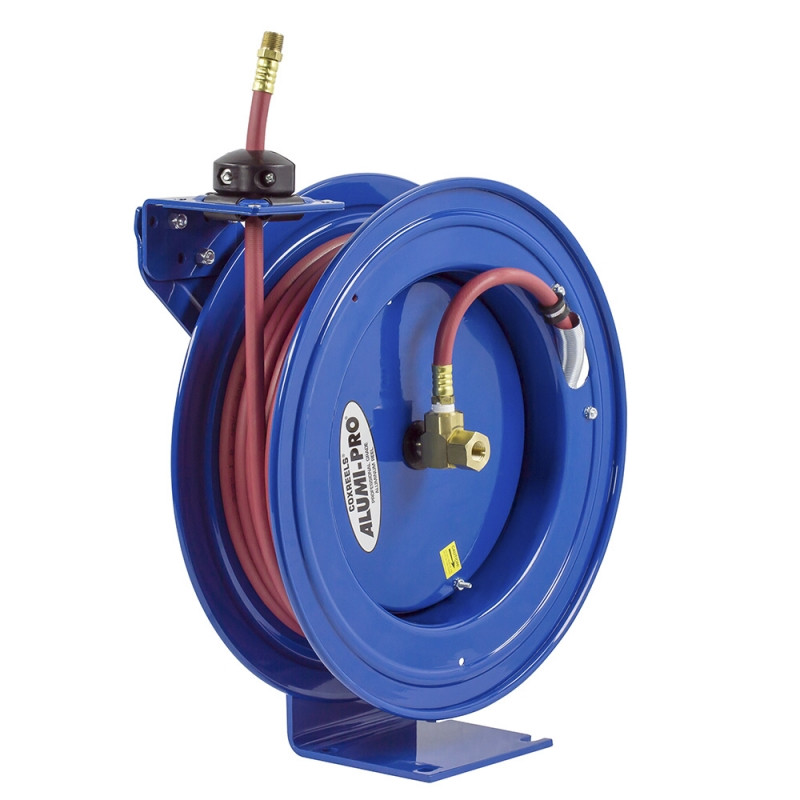

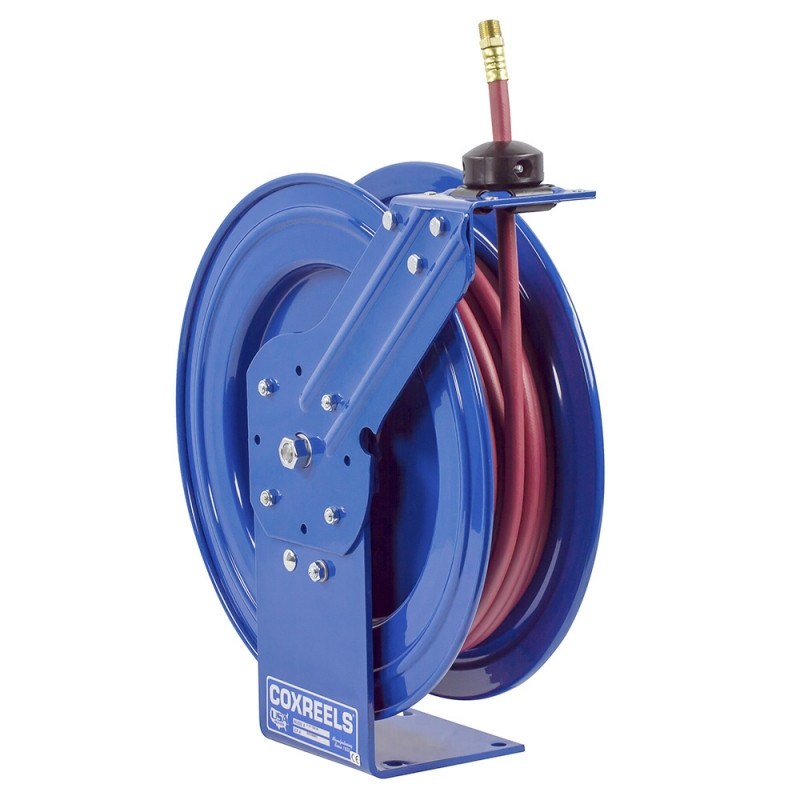

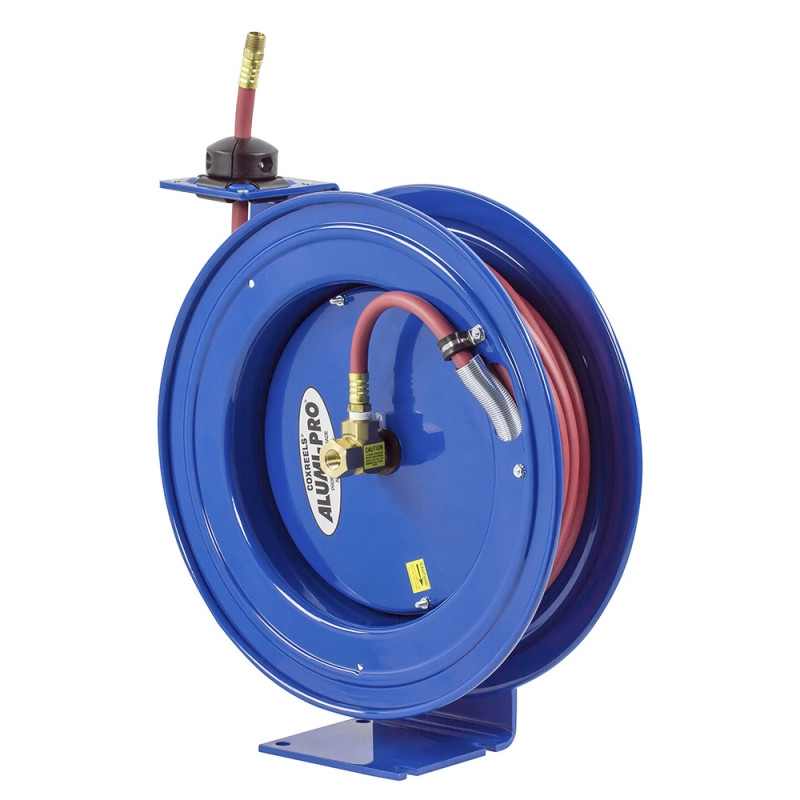

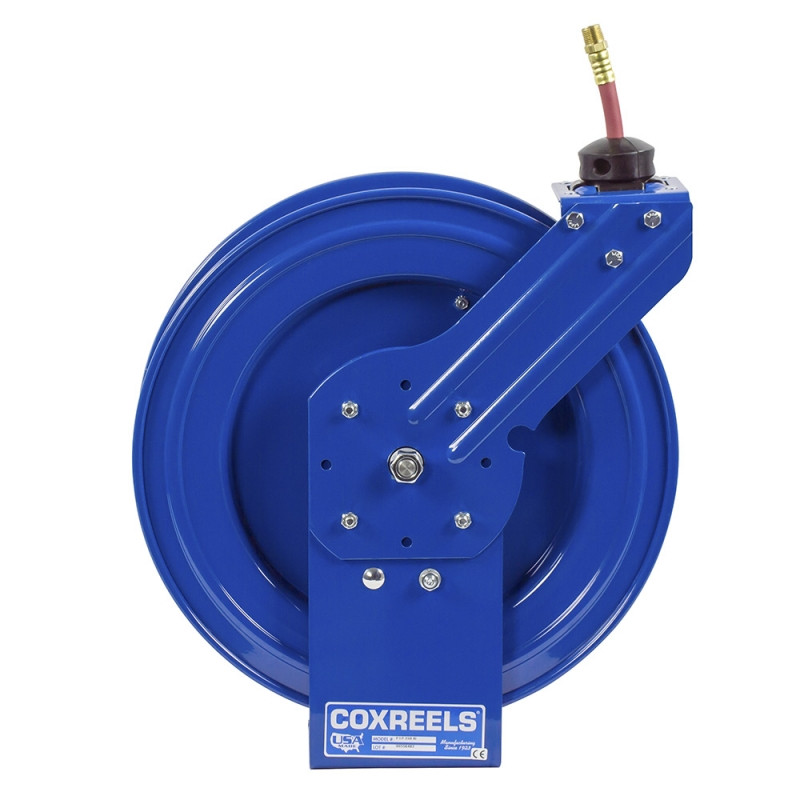

Designed for efficient hose management in demanding industrial environments, the Coxreels P-LPL-350-AL Spring Rewind Hose Reel combines lightweight corrosion-resistant construction with dependable automatic hose retrieval. As part of the Alumi-Pro Series, this reel is designed to accommodate 50 feet of 3/8" inside diameter hose and is rated for a maximum working pressure of 300 PSI. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps keep hoses neatly stored, reducing clutter, minimizing trip hazards, and promoting longer hose life.
This model is supplied in a Less Hose configuration, allowing users to install the hose best suited to their specific application requirements. The Alumi-Pro Series features a lightweight aluminum frame that provides outstanding corrosion resistance while reducing overall reel weight, making it an excellent choice for industrial facilities, maintenance departments, marine environments, and mobile service equipment.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: Alumi-Pro Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 50 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind mechanism provides smooth, controlled hose retraction after every use.
- Lightweight aluminum frame offers excellent corrosion resistance while reducing overall reel weight.
- Less hose configuration allows installation of a compatible 3/8-inch hose selected for the intended application.
- Designed to accommodate up to 50 feet of 3/8-inch inside diameter hose.
- Rated for working pressures up to 300 PSI when used with compatible hose and fittings.
- Suitable for wall, ceiling, bench, or vehicle-mounted installations where efficient hose management is required.
Made in USA:
Applications:
- Compressed air systems in manufacturing plants and industrial facilities.
- Maintenance departments requiring lightweight, corrosion-resistant hose management.
- Marine and coastal environments where aluminum construction offers improved corrosion resistance.
- Mobile service trucks and field service equipment.
- General-purpose compressed air and compatible low-pressure fluid transfer applications using customer-supplied hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without a hose, allowing you to install a compatible 3/8-inch hose that matches your application's requirements. - Q: What are the benefits of the Alumi-Pro Series?
A: The Alumi-Pro Series utilizes a lightweight aluminum frame that provides excellent corrosion resistance while reducing overall reel weight for both stationary and mobile installations. - Q: Does the hose retract automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, helping maintain an organized workspace and reducing manual hose handling. - Q: Can this reel be used for compressed air applications?
A: Yes. When paired with a properly rated hose and compatible fittings, the P-LPL-350-AL is suitable for compressed air and other compatible low-pressure applications up to its 300 PSI maximum working pressure.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE
|
||||||||
| P-LP-125-AL | 1/4" | 1/2" | 25 | 300 | 18 | P-LPL-125-AL | 15 | 1 |
| P-LP-150-AL | 1/4" | 1/2" | 50 | 300 | 25 | P-LPL-150-AL | 18 | 3 |
| P-LP-325-AL | 3/8" | 5/8" | 25 | 300 | 19 | P-LPL-325-AL | 16 | 2 |
| P-LP-350-AL | 3/8" | 5/8" | 50 | 300 | 27 | P-LPL-350-AL | 20 | 3 |
| P-LP-425-AL | 1/2" | 3/4" | 25 | 300 | 29 | P-LPL-425-AL | 22 | 4 |
| P-LP-430-AL | 1/2" | 3/4" | 30 | 300 | 31 | P-LPL-430-AL | 22 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
