Coxreels P-LPL-425-AL Spring Rewind Hose Reel | Alumi-Pro Series | 1/2" Hose Diameter | 25' Hose Length | 300 Max PSI | Less Hose

When a shop, service truck, or maintenance area needs organized hose storage without the added weight of a comparable steel reel, the Coxreels P-LPL-425-AL Alumi-Pro Series spring rewind hose reel provides a lightweight aluminum solution for low-pressure air, water, or oil service. This less hose model is built to accept a compatible 1/2" I.D. hose up to 25 ft long, with a 300 PSI maximum pressure rating for common low-pressure utility applications.

The Alumi-Pro Series is modeled after Coxreels' P Series platform and uses aluminum construction for buyers who want the strength of a professional spring rewind reel with reduced reel weight and corrosion resistance. Its spring rewind mechanism retracts the hose after use, while the adjustable guide arm helps match the hose pull direction for wall, floor, vehicle, or overhead installations.

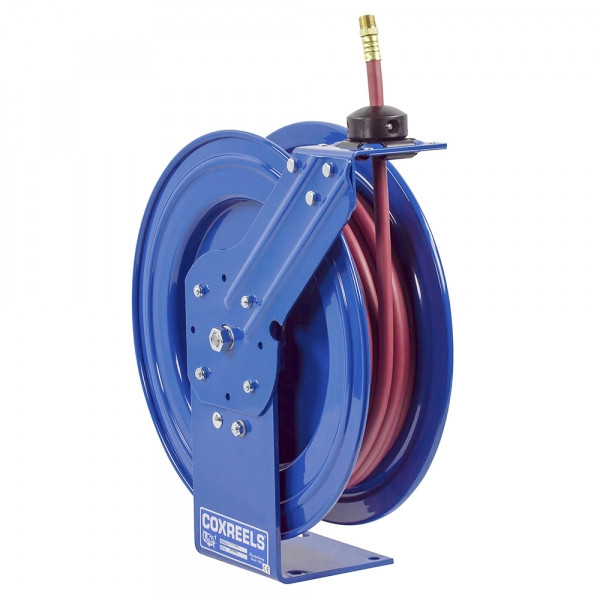

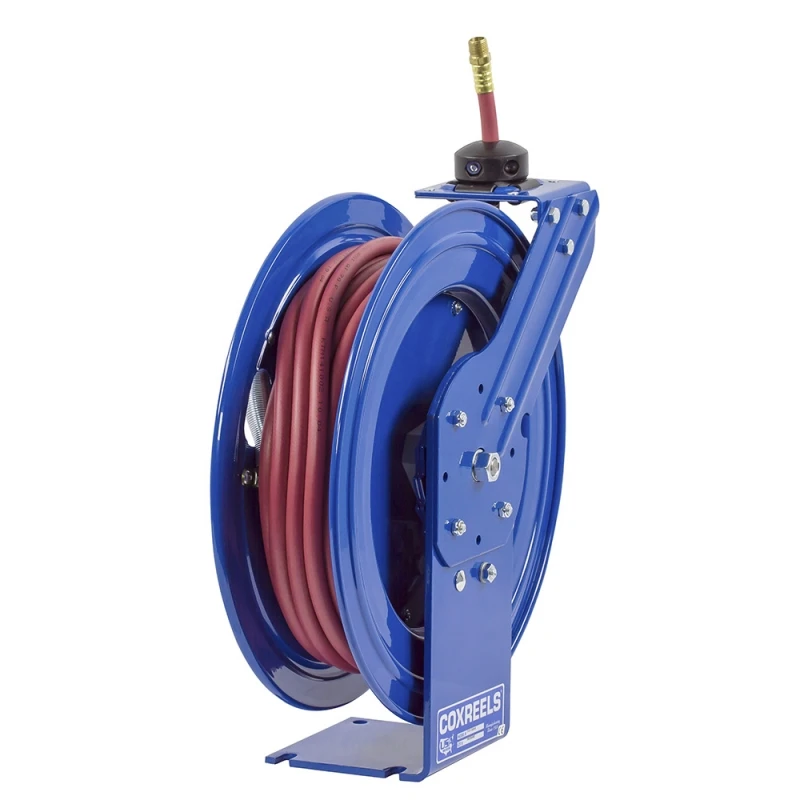

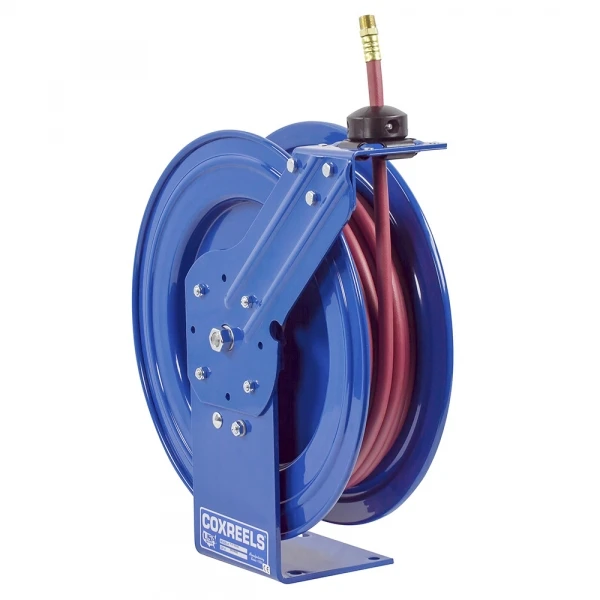

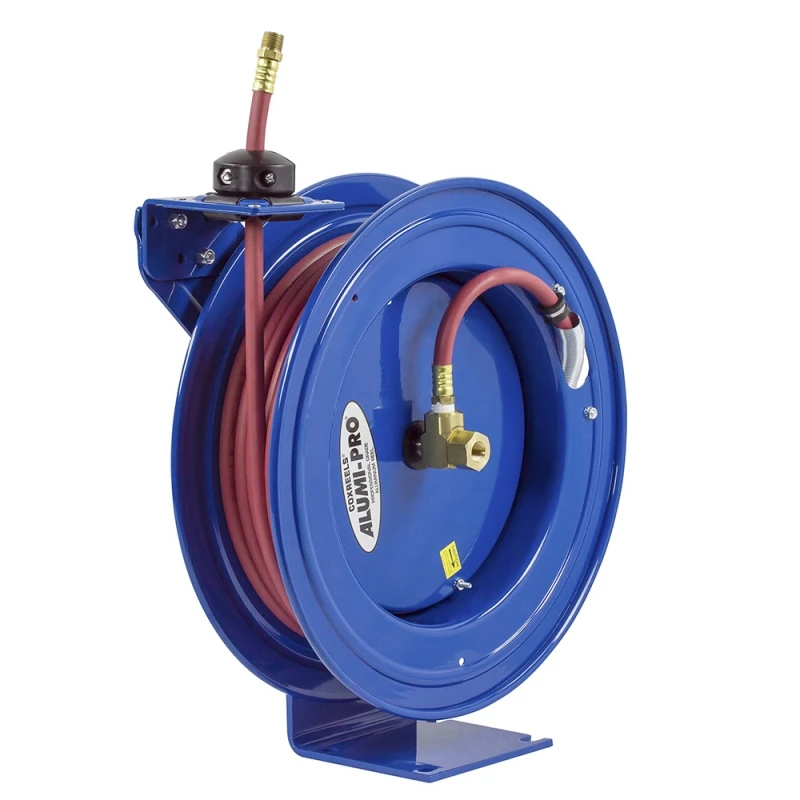

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: Alumi-Pro Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 25 ft | Max Pressure: 300 PSI | Hose Included: No | Approx. Weight: 22 lbs | Overall Dimensions: 7" W x 18-5/8" H x 17-1/8" L | Base: 6" x 6" | Mounting Pattern: 4" x 5" | Swivel Seals: Nitrile

Features:

• Alumi-Pro aluminum construction reduces reel weight while providing a professional spring rewind reel format for low-pressure hose handling.
• Less-hose configuration allows buyers to install their preferred compatible 1/2" I.D. hose for air, water, or oil service.
• Spring rewind operation retracts hose after use to help keep floors, benches, and truck compartments cleaner and better organized.
• Machined solid brass 90° full-flow NPT swivel inlet supports efficient fluid path routing and simplifies seal access during service.
• Nitrile swivel seals are used for the reel's low-pressure service configuration.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions to match the installation layout.
• CPC powder coated aluminum construction helps resist corrosion in shop, fleet, and mobile maintenance environments.
• 1" solid steel axle with lubricated precision bearings supports smooth reel rotation during payout and rewind.

Made in USA:

2 Year Warranty

Applications:

• Automotive and fleet service bays managing low-pressure air or water hose for cleaning, inflation, detailing, and general maintenance tasks.
• Service trucks and mobile repair units where an aluminum reel helps reduce mounted equipment weight while keeping hose ready for use.
• Industrial MRO workstations that need organized hose access near benches, assembly areas, and maintenance cells.
• Low-pressure oil service areas where the less-hose reel configuration allows the user to select hose suited to the application.
• Garage and workshop installations where spring rewind storage keeps compatible 1/2" hose contained between jobs.

FAQs:

• Q: What does less hose mean on the P-LPL-425-AL?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/2" I.D. hose separately, up to the reel's 25 ft capacity and within the 300 PSI pressure rating.
• Q: Can this reel be used for air, water, or oil?
  A: Yes, Coxreels lists the less-hose low-pressure models for air, water, or oil use. The hose selected by the buyer must also be compatible with the fluid, pressure, temperature, and fittings used in the system.
• Q: How is this different from the P-LP-425-AL?
  A: The P-LP-425-AL is furnished with hose, while the P-LPL-425-AL is supplied less hose. Choose the P-LPL version when you already have a preferred hose specification or need to match an existing shop standard.
• Q: Can the guide arm be adjusted for different mounting positions?
  A: Yes, the guide arm can be adjusted for wall, floor, vehicle, or overhead mounting. Confirm the mounting pattern, available clearance, and hose pull direction before installation.
• Q: Is this reel suitable for hydraulic pressure?
  A: No. This reel is rated for low-pressure service up to 300 PSI. Hydraulic applications should use a reel specifically rated for the required hydraulic pressure and fluid type.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
