Coxreels P-LPL-430-AL Spring Rewind Hose Reel | Alumi-Pro Series | 1/2" Hose Diameter | 30' Hose Length | 300 Max PSI | Less Hose

When a work bay or mobile service setup needs a longer 1/2" hose run without adding unnecessary reel weight, the Coxreels P-LPL-430-AL Alumi-Pro Series spring rewind hose reel provides organized low-pressure hose storage in a corrosion-resistant aluminum frame. This less hose model is built to accept a compatible 1/2" I.D. hose up to 30 ft long, giving technicians added reach around vehicles, benches, wash areas, and maintenance stations while staying within a 300 PSI maximum pressure rating.

The Alumi-Pro Series follows the Coxreels P Series reel platform but uses aluminum construction for applications where weight reduction and corrosion resistance matter. The spring rewind mechanism stores hose automatically after use, while the adjustable guide arm helps align the hose payout direction for wall, floor, bench, vehicle, or overhead mounting layouts.

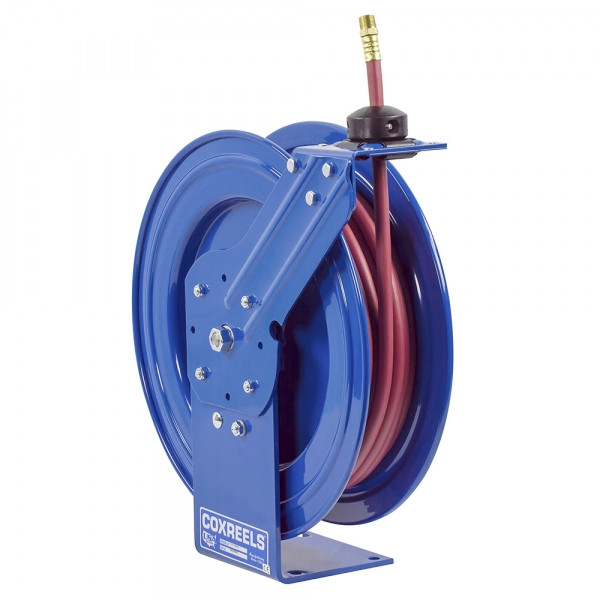

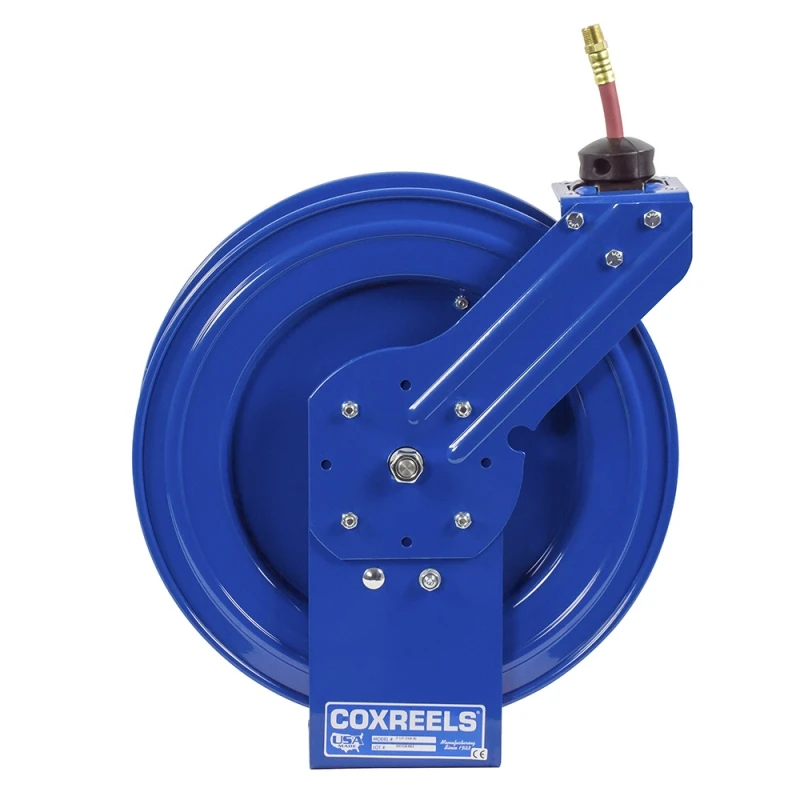

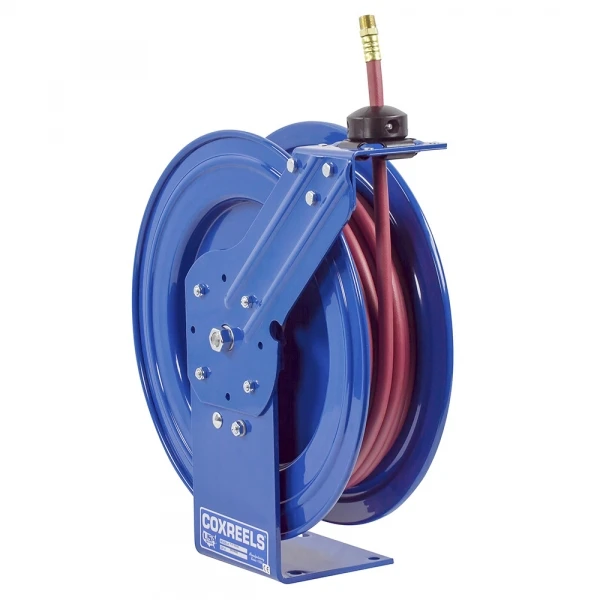

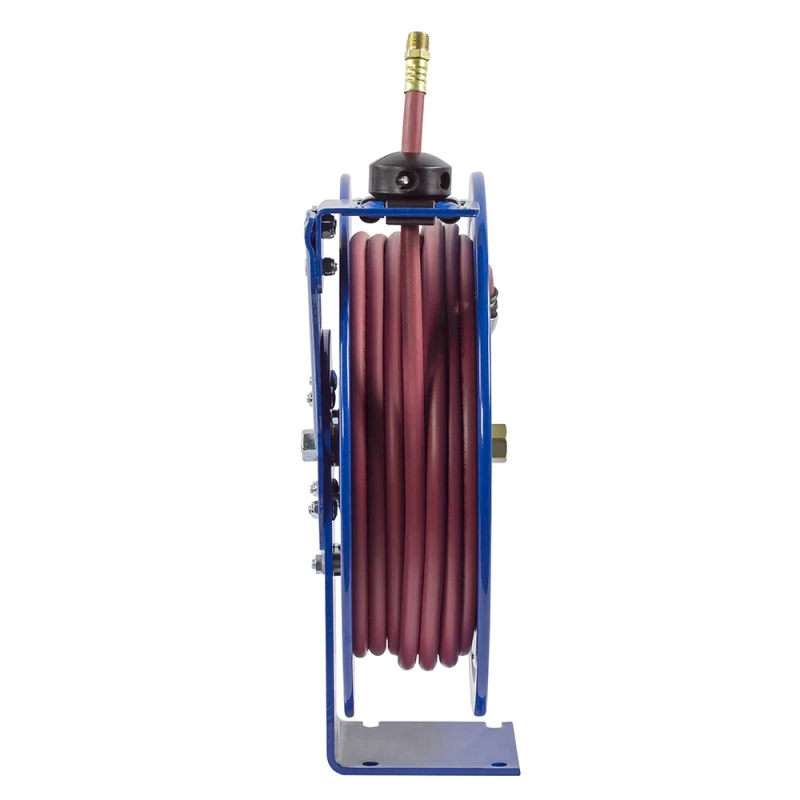

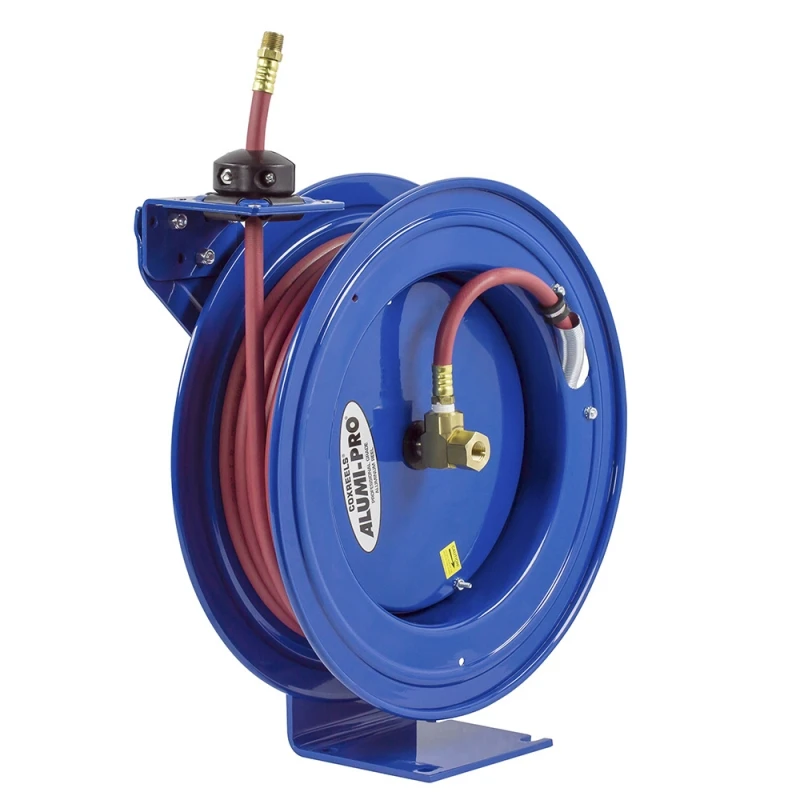

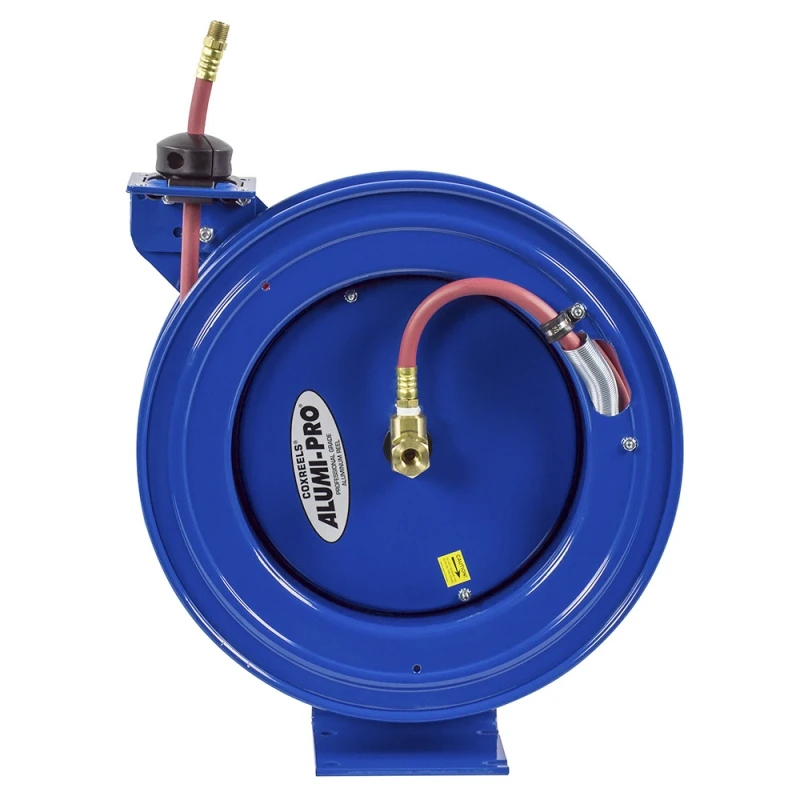

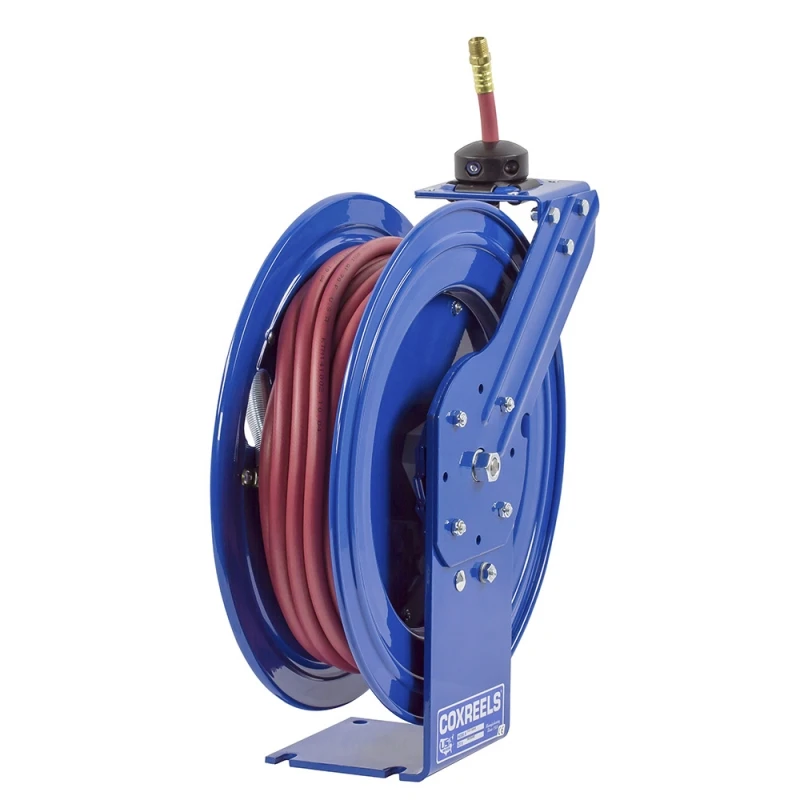

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: Alumi-Pro Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 30 ft | Max Pressure: 300 PSI | Hose Included: No | Approx. Weight: 40 lbs | Overall Dimensions: 7" W x 18-5/8" H x 17-1/8" L | Base: 6" x 6" | Mounting Pattern: 4" x 5" | Swivel Material: Brass | Swivel Seals: Nitrile

Features:

• Alumi-Pro aluminum construction reduces reel weight compared with steel reel designs while supporting professional hose storage in shop and mobile environments.
• Less-hose configuration lets the buyer install a compatible 1/2" I.D. hose selected for the specific air or water service requirements.
• 30 ft hose capacity provides additional working reach compared with shorter 25 ft models, helping cover larger bays, equipment areas, and service truck layouts.
• Spring rewind operation retracts hose after use to help reduce floor clutter and keep the hose stored neatly between jobs.
• Machined solid brass 90° full-flow NPT swivel inlet supports efficient fluid path routing through the reel.
• Nitrile swivel seals are used for the reel's low-pressure air and water service configuration.
• Adjustable guide arm supports wall, floor, vehicle, bench, and overhead mounting positions to better match the hose pull direction.
• CPC powder coated aluminum construction helps resist corrosion in maintenance, fleet, garage, and utility service environments.

Made in USA:

2 Year Warranty

Applications:

• Automotive and fleet service bays needing a 30 ft low-pressure hose reach for air tools, inflation, cleaning, and general utility work.
• Service trucks and mobile maintenance units where aluminum reel construction helps manage mounted equipment weight.
• Industrial MRO workstations where organized hose access supports routine maintenance, machine service, and bench-area utility tasks.
• Washdown and water service locations using compatible 1/2" hose within the reel’s 300 PSI pressure rating.
• Garage and workshop installations where spring rewind storage keeps longer hose runs contained and accessible between jobs.

FAQs:

• Q: What does less hose mean on the P-LPL-430-AL?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/2" I.D. hose separately, up to the reel's 30 ft capacity and within the 300 PSI pressure rating.
• Q: What is the difference between the P-LPL-425-AL and P-LPL-430-AL?
  A: Both are 1/2" I.D. less-hose Alumi-Pro spring rewind reels rated to 300 PSI. The P-LPL-430-AL provides 30 ft of hose capacity, while the P-LPL-425-AL is sized for 25 ft.
• Q: Can this reel be mounted on a wall or service vehicle?
  A: Yes, the adjustable guide arm supports wall, floor, vehicle, bench, and overhead mounting positions. Always confirm the mounting pattern, available clearance, and hose pull direction before installation.
• Q: Is hose included with this model?
  A: No. This model is supplied as a reel only. Select a hose that matches the 1/2" I.D. capacity, 3/4" O.D. allowance, pressure rating, fluid service, and fitting requirements of the system.
• Q: Can the P-LPL-430-AL be used for hydraulic service?
  A: No. This reel is rated for low-pressure service up to 300 PSI. Hydraulic applications require a hose reel specifically rated for the system pressure and hydraulic fluid compatibility.
