Coxreels P-LPL-150-AL Spring Rewind Hose Reel | Alumi-Pro Series | 1/4" Hose Diameter | 50' Hose Length | 300 Max PSI | Less Hose

Built for longer low-pressure hose runs without the weight of a comparable steel reel, the Coxreels P-LPL-150-AL Spring Rewind Hose Reel helps keep air, water, or oil hose organized in shops, service vehicles, and maintenance areas. Part of the Alumi-Pro Series, this reel is configured for 1/4" I.D. hose with 50 ft capacity and a 300 PSI maximum pressure rating, giving users more reach than shorter 25 ft models while retaining a compact single-pedestal footprint.

Alumi-Pro reels are constructed from powder coated aluminum for applications where reduced reel weight, corrosion resistance, and professional hose control are important. The spring rewind mechanism retracts hose after use, while the adjustable guide arm allows the reel to be positioned for wall, floor, vehicle, or overhead mounting. Less-hose configuration lets the buyer install a compatible hose suited to the application, fluid type, fitting style, and site preference.

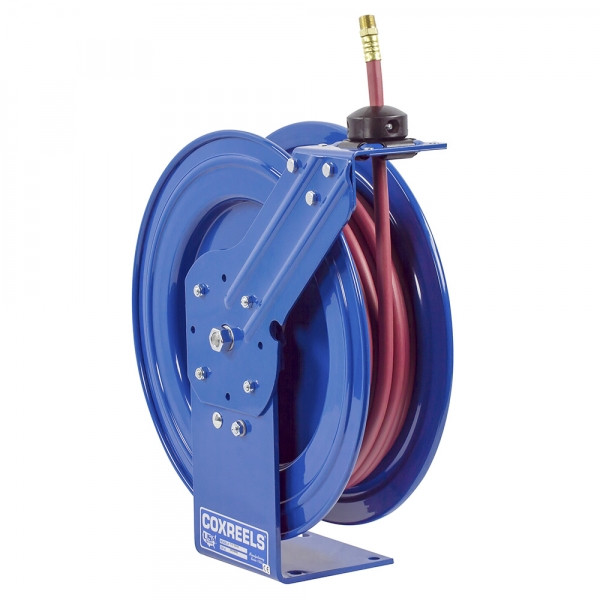

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: Alumi-Pro Series | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Hose Included: No | Service: Air, Water, Oil | Swivel: Machined solid brass 90° full-flow NPT swivel inlet | Swivel Seals: Nitrile | Overall Dimensions: 6-3/4" W x 18-5/8" H x 17-1/8" L | Mounting Pattern: 4" x 5" | Base: 6" x 6" | Weight: 18 lbs

Features:

• Industrial strength CPC powder coated aluminum construction provides hose reel strength while reducing overall reel weight.
• Spring rewind operation retracts hose after use to help keep floors, benches, and vehicle compartments clear of loose hose.
• Single pedestal reel format suits applications that require professional hose control without unnecessary reel weight.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions for layout flexibility.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet keeps the service connection accessible.
• Nitrile swivel seals support compatible air, water, and oil service in low-pressure applications.
• 1" solid steel axle and lubricated precision bearings promote smooth reel rotation during payout and rewind.
• Multi-position lock ratchet mechanism secures hose at the desired working length during use.

Made in USA:

2 Year Warranty

Applications:

• Automotive dealerships and service bays needing a longer 1/4" air hose reach for inflation, blow-off, and light tool support.
• Fleet maintenance and tire service centers where controlled hose storage reduces floor clutter around work areas.
• Service and mechanic trucks where the aluminum reel construction helps reduce mounted equipment weight.
• Industrial maintenance benches and MRO stations using low-pressure air, water, or oil hose for routine service tasks.
• DIY garages and small workshops where a 50 ft spring rewind reel gives extra reach across the work area without loose hose storage.

FAQs:

• Q: What does less hose mean on the P-LPL-150-AL?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hose separately and should not exceed the listed 1/2" hose O.D. if the full 50 ft capacity is required.
• Q: Can this reel be used with oil as well as air and water?
  A: Yes, Coxreels lists less-hose Alumi-Pro models for air, water, or oil service. The installed hose, fittings, and seals must still be compatible with the specific fluid and pressure being used.
• Q: How is this different from the P-LPL-125-AL?
  A: The P-LPL-150-AL is sized for 50 ft of 1/4" I.D. hose, while the P-LPL-125-AL is sized for 25 ft. The 50 ft model uses a larger frame with a 6" x 6" base and 4" x 5" mounting pattern.
• Q: What is the advantage of the Alumi-Pro construction?
  A: The aluminum construction reduces reel weight and offers corrosion-resistant performance for users who want a stronger alternative to plastic or polypropylene reels without the added weight of a full steel frame.
• Q: Where can this spring rewind reel be mounted?
  A: The adjustable guide arm allows wall, floor, vehicle, and overhead mounting positions. The mounting surface must support the reel, the installed hose, fittings, and pulling forces created during use.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
