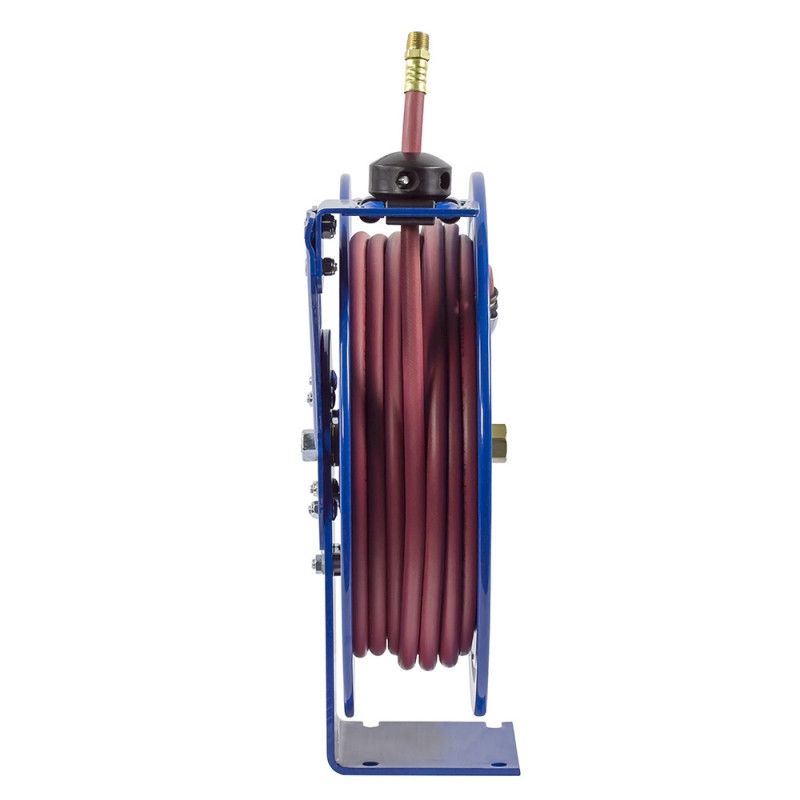

Engineered for dependable hose management in industrial and commercial environments, the Coxreels P-LP-325-AL Spring Rewind Hose Reel combines lightweight corrosion-resistant construction with smooth automatic hose retrieval. As part of the Alumi-Pro Series, this reel comes equipped with 25 feet of 3/8" inside diameter hose and is rated for a maximum working pressure of 300 PSI. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps reduce manual hose handling, minimizes hose wear, and keeps work areas safer and more organized.
The Alumi-Pro Series features a durable aluminum frame that provides excellent corrosion resistance while reducing overall reel weight. Its compact design makes it well suited for manufacturing plants, maintenance facilities, automotive service bays, and mobile service vehicles where reliable hose storage and lightweight equipment are important.
Type: Spring Rewind Hose Reel | Series: Alumi-Pro Series | Hose I.D.: 3/8" | Hose Length: 25 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind mechanism provides smooth, controlled hose retraction after every use.
- Lightweight aluminum frame offers excellent corrosion resistance while reducing reel weight.
- Supplied with 25 feet of 3/8-inch inside diameter hose for immediate installation and operation.
- Rated for working pressures up to 300 PSI when operated within the manufacturer's specified service conditions.
- Compact reel design helps minimize hose kinking, abrasion, and unnecessary wear.
- Suitable for wall, ceiling, bench, or vehicle-mounted installations where efficient hose management is required.
Made in USA:
Applications:
- Compressed air systems in manufacturing and industrial facilities.
- Automotive repair shops, fleet maintenance centers, and commercial service bays.
- Mobile service vehicles where lightweight, corrosion-resistant equipment is beneficial.
- Maintenance departments requiring organized hose storage and rapid hose deployment.
- General-purpose compressed air and compatible low-pressure fluid transfer applications.
FAQs:
- Q: Does this reel include a hose?
A: Yes. Since this model is not designated as "Less Hose," it is supplied with a 25-foot, 3/8-inch hose as specified by the manufacturer. - Q: What makes the Alumi-Pro Series different?
A: The Alumi-Pro Series utilizes a lightweight aluminum frame that provides excellent corrosion resistance while reducing overall reel weight, making it ideal for both stationary and mobile applications. - Q: Does the hose rewind automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, helping improve workplace safety and keeping the hose properly stored. - Q: Can this reel be used for compressed air service?
A: Yes. The P-LP-325-AL is suitable for compressed air and other compatible low-pressure applications up to its 300 PSI maximum working pressure when used according to the manufacturer's recommendations.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE
|
||||||||
| P-LP-125-AL | 1/4" | 1/2" | 25 | 300 | 18 | P-LPL-125-AL | 15 | 1 |
| P-LP-150-AL | 1/4" | 1/2" | 50 | 300 | 25 | P-LPL-150-AL | 18 | 3 |
| P-LP-325-AL | 3/8" | 5/8" | 25 | 300 | 19 | P-LPL-325-AL | 16 | 2 |
| P-LP-350-AL | 3/8" | 5/8" | 50 | 300 | 27 | P-LPL-350-AL | 20 | 3 |
| P-LP-425-AL | 1/2" | 3/4" | 25 | 300 | 29 | P-LPL-425-AL | 22 | 4 |
| P-LP-430-AL | 1/2" | 3/4" | 30 | 300 | 31 | P-LPL-430-AL | 22 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
