Coxreels P-LPL-125-AL Spring Rewind Hose Reel | Alumi-Pro Series | 1/4" Hose Diameter | 25' Hose Length | 300 Max PSI | Less Hose

Built for air and water hose management where weight savings matter, the Coxreels P-LPL-125-AL Spring Rewind Hose Reel gives shops, service trucks, and maintenance areas a compact reel for organizing 1/4" I.D. hose in a 25 ft capacity. Part of the Alumi-Pro Series, this reel uses aluminum construction to reduce reel weight while maintaining a 300 PSI maximum pressure rating for low-pressure air and water service.

The spring rewind mechanism retracts hose automatically after use, helping keep walkways, benches, and vehicle service bays clear of loose hose. Its external fluid path and machined solid brass 90° full-flow NPT swivel provide a dependable connection point, while nitrile swivel seals support common air and water applications when the reel is paired with compatible hose.

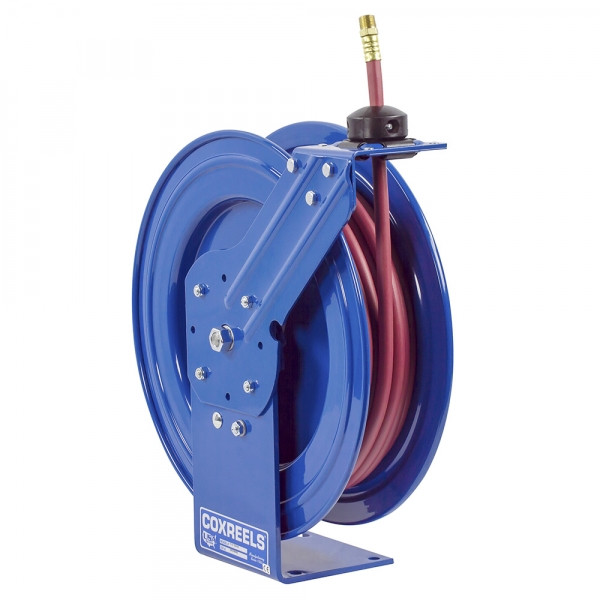

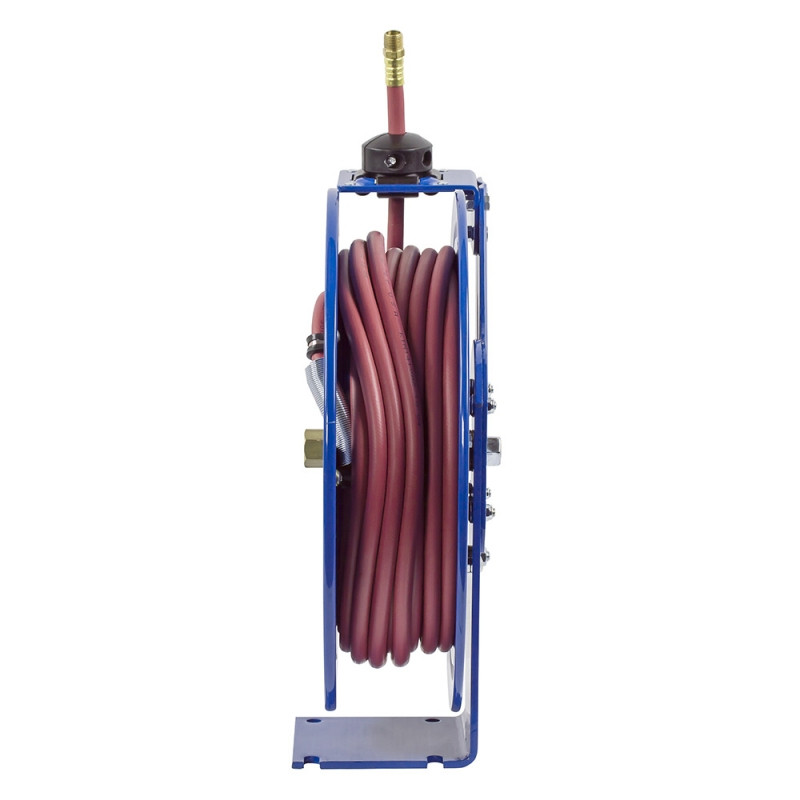

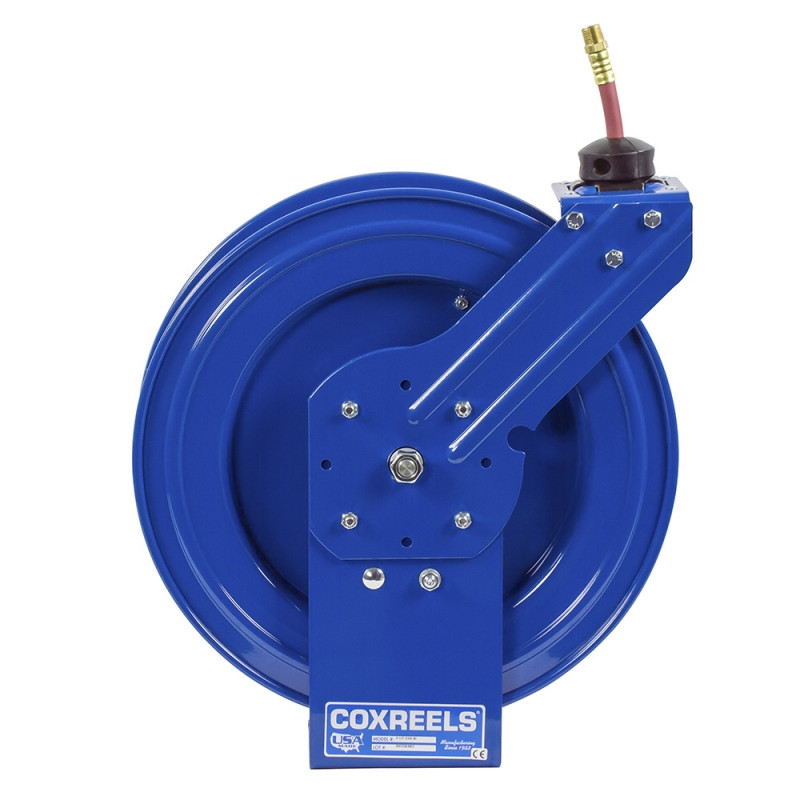

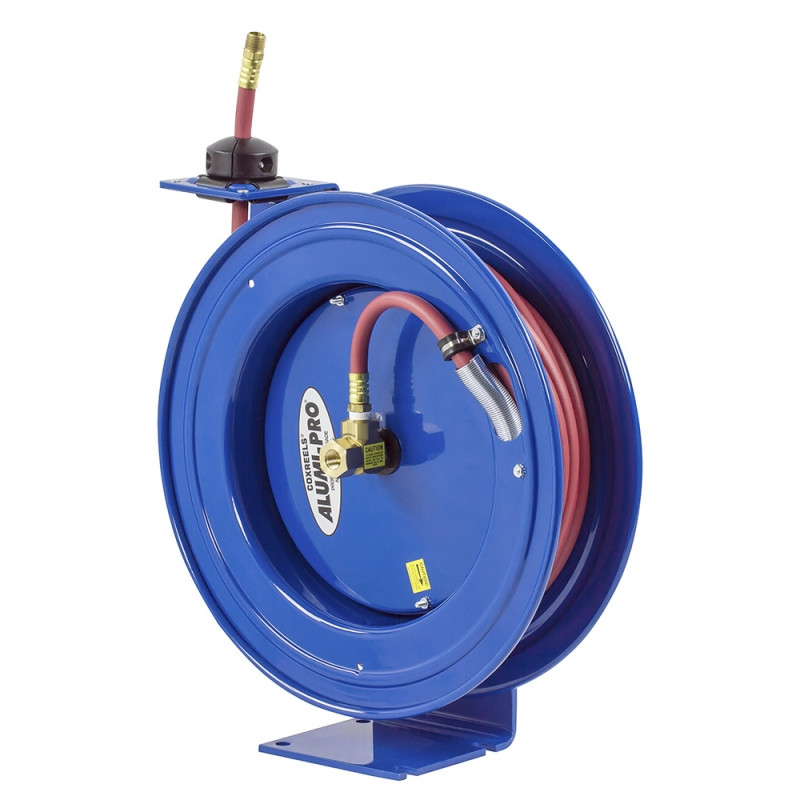

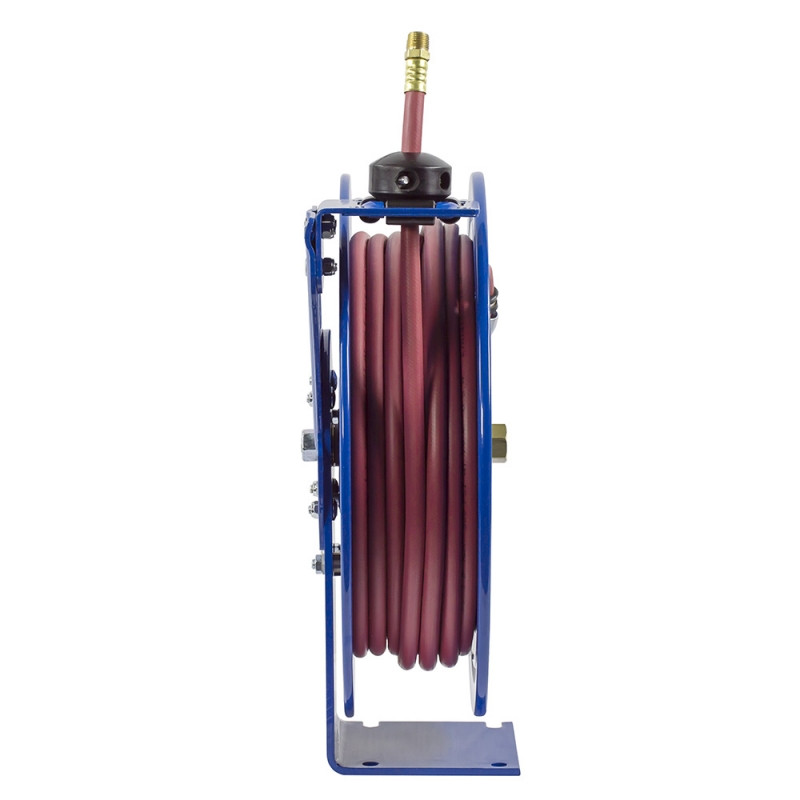

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: Alumi-Pro Series | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 25 ft | Max Pressure: 300 PSI | Hose Included: No | Swivel: Machined solid brass 90° full-flow NPT swivel | Swivel Seals: Nitrile | Overall Dimensions: 5.88" W x 14.88" H x 13.5" L | Mounting Pattern: 3" x 5" | Base: 5" x 6" | Ship Weight: 15 lbs

Features:

• Aluminum construction reduces reel weight for service trucks, carts, and wall-mounted air or water stations.
• Spring rewind operation retracts hose after use to help reduce hose clutter in work areas.
• External fluid path keeps the hose connection accessible for installation, inspection, and service.
• Machined solid brass 90° full-flow NPT swivel supports smooth fluid transfer through the reel connection.
• Nitrile swivel seals are suitable for common low-pressure air and water service applications.
• Compact single-pedestal layout fits benches, work cells, service bays, and small equipment rooms.
• CPC powder coated aluminum finish helps protect the reel surface in shop and mobile service environments.
• Less-hose configuration allows the buyer to install a compatible hose that matches the application, fitting style, and site preference.

Made in USA:

2 Year Warranty

Applications:

• Automotive service bays using short-run air hose for inflation, blow-off, and light pneumatic tool support.
• Maintenance benches and repair stations where a compact 25 ft hose capacity keeps air or water close to the work area.
• Mobile service trucks and utility vehicles where reduced reel weight helps conserve payload space and mounting flexibility.
• Manufacturing work cells needing controlled hose storage for low-pressure air or washdown water access.
• DIY garages and small workshops where a spring rewind reel helps keep hose off the floor between tasks.

FAQs:

• Q: What does less hose mean on the P-LPL-125-AL?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hose separately and should keep the hose outside diameter at 1/2" to match the reel capacity.
• Q: What is the benefit of the Alumi-Pro Series?
  A: The Alumi-Pro Series uses aluminum construction to reduce reel weight compared with similar steel reel formats. This is helpful for mobile service vehicles, carts, and mounting locations where lower weight is preferred.
• Q: Can this reel be used for shop air?
  A: Yes, when the installed hose, fittings, and air system are compatible with the reel's 1/4" hose size and 300 PSI maximum pressure rating. Always verify the complete hose assembly rating before pressurizing the system.
• Q: Is hose included with this model?
  A: No. The LPL configuration is the less-hose version, so hose must be ordered separately based on the application, desired fitting ends, and fluid service.
• Q: Where can this reel be mounted?
  A: This compact spring rewind reel can be mounted on suitable walls, benches, service vehicles, carts, or equipment frames. The mounting surface must support the reel, hose, fittings, and pulling forces during use.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
