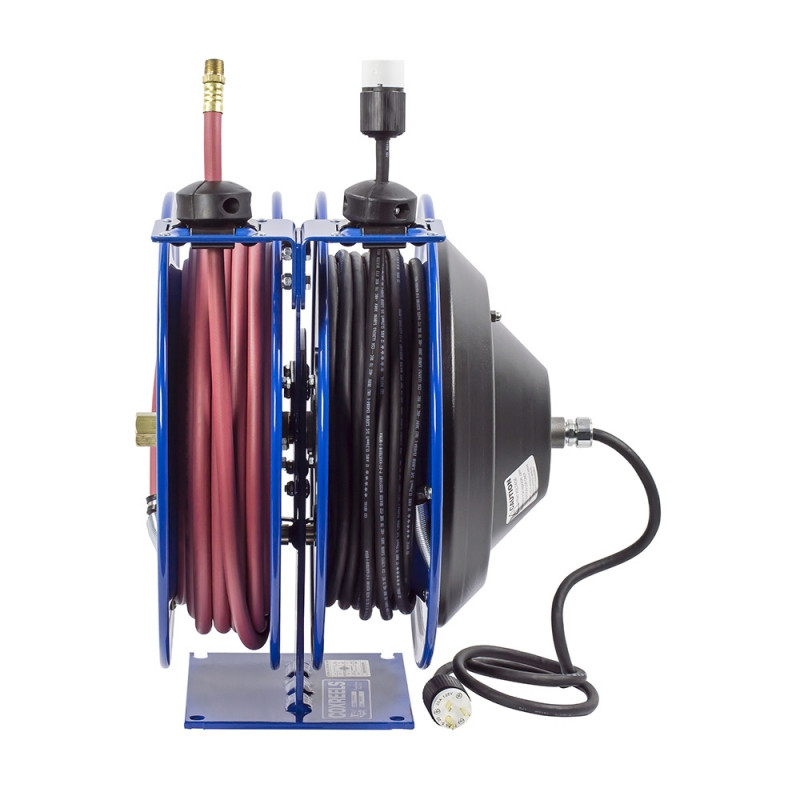

For indoor workstations that need compressed air and electrical cord access from one mounted reel assembly, the Coxreels C-L350-5016-X Dual Purpose Electric/Air spring rewind reel combines a low-pressure air hose reel and electric cord reel in the C Air-Electric Series platform. This model includes 50 ft of 3/8" I.D. hose, is rated for 300 PSI, and includes a 16/3 AWG, 50 ft SJO cord with a 13 amp electrical rating. The X suffix identifies a with-hose, with-cord, less-accessory configuration, making it useful when the electrical end accessory will be selected or finished separately.
The C-L350-5016-X uses spring rewind, a spring-powered retraction system that returns the hose and cord after use. Coxreels C Series combination reels operate as two independent self-retracting assemblies in one compact unit, helping reduce mounting space compared with installing separate air and electric reels. The single expanded steel mounting base provides one mounting pattern, while the multi-position lock ratchet, enclosed cartridge-style spring motor, adjustable guide arm, solid brass full-flow NPT swivel, nitrile swivel seals, 1" solid steel axle, and CPC powder coat finish help keep air and electrical access organized in shop, repair, maintenance, and service environments.
Type: Dual Purpose Electric/Air Spring Rewind Reel | Series: C Air-Electric Series | SKU: C-L350-5016-X | Hose Included: Yes | Cord Included: Yes | Electrical Accessory: Less Accessory | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Cord: 16/3 AWG, 50 ft SJO | Electrical Rating: 115 V, 13 Amps, 60 Hz Single Phase | Service: Air, Electric | Rewind Type: Spring Rewind | Ship Weight: 93 lb | Overall Dimensions: 16" W x 18.63" H x 17" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y
Features:
- Dual purpose C Air-Electric Series design combines air hose and electrical cord management in one compact reel assembly.
- With-hose, with-cord, less-accessory configuration allows the electrical end accessory to be selected or completed separately for the workstation requirements.
- Independent spring rewind assemblies allow the air hose and electric cord to be pulled out and retracted separately from the same mounted station.
- Single expanded 1/4" steel mounting base adds stability and reduces installation time compared with mounting two separate reels.
- Multi-position lock ratchet mechanism secures the hose or cord at the desired working length during use.
- Enclosed factory tuned cartridge-style spring motor is designed for controlled rewind operation and service accessibility.
- External air path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Includes 5 ft lead cable and grounding plug, except on less-cord models.
- Guide arm adjusts for wall, floor, and overhead mounting positions.
- CPC powder coat finish, rolled ribbed discs, 1" solid steel axle, and lubricated precision bearings support smooth rotation and routine shop use.
Made in USA:
Applications:
- Indoor repair bays and service stations where compressed air and electrical cord access are needed from the same mounted location.
- Fleet maintenance garages where a single reel assembly helps organize air hose and power cord reach at service points.
- Production benches, maintenance cells, and assembly areas where shared air and electric access helps reduce loose hose and cord around the workstation.
- Automotive, equipment, and facility maintenance areas where 50 ft of 3/8" air hose reach supports compatible low-pressure pneumatic tasks.
- Installations where the buyer wants hose and cord supplied but plans to select the electrical accessory separately.
- Wall, floor, bench, or overhead installations where one combined spring rewind reel is preferred over two separate reel assemblies.
FAQs:
- Q: Does the Coxreels C-L350-5016-X include hose?
A: Yes. This model includes 50 ft of 3/8" I.D. hose and is rated for 300 PSI low-pressure air service. - Q: Does this model include an electrical cord?
A: Yes. The C-L350-5016-X includes a 16/3 AWG, 50 ft SJO cord with a 13 amp electrical rating. - Q: What does less accessory mean on this model?
A: It means the reel is supplied with hose and cord, but without a listed end accessory such as a receptacle or light. The electrical accessory should be selected and installed according to the application and code requirements. - Q: How is the C-L350-5016-X different from the C-L350-5016-F?
A: Both models include 50 ft of 3/8" hose and 16/3 AWG cord with a 13 amp rating. The C-L350-5016-F includes a duplex G.F.C.I. metal industrial receptacle, while the C-L350-5016-X is supplied less accessory. - Q: Is this reel for indoor or outdoor use?
A: The manufacturer catalog identifies the C Series air/electric models for indoor use only. Installation should follow applicable national and local electrical codes. - Q: Is this reel suitable for pressure washing?
A: No. The hose side is rated for 300 PSI low-pressure air service. Pressure washing requires a reel, hose, fittings, and accessories rated for the pressure washer's operating pressure.
| HOSE & CORD | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | AWG / NO COND. |
CORD FT. |
TYPE | AMPS. | I.D. | O.D. | FT. | PSI | APRX. LBS. |
|
|
FOR INDOOR USE ONLY!Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies. All Models rated: 115 volts, 3*conductors, 60hz single phase.
|
|||||||||||
| C-L350-5016-A | Single Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-A | Single Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5012-B | Quad “4 Plug” Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 85 | 1 |
| C-L350-5016-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5016-E | Caged Drop Light with Tool Tap Plug† |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-H | Industrial Duty LED Light† |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-K | Super-Bright LED Light with Tool Tap on Handle |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-M | Compact Super-Bright LED Light |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-X | With Hose, With Cord, Less Accessory |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 78 | 1 |
| C-L350-5012-X | With Hose, With Cord, Less Accessory |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 83 | 1 |
| C-L350-5012-4 | With Hose, With Cord, Less Accessory |
12 / 4 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 86 | |
| C-L350L-5016L-X | Less Hose, Less Cord, Less Accessory |
16 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
| C-L350L-5012L-X | Less Hose, Less Cord, Less Accessory |
12 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
