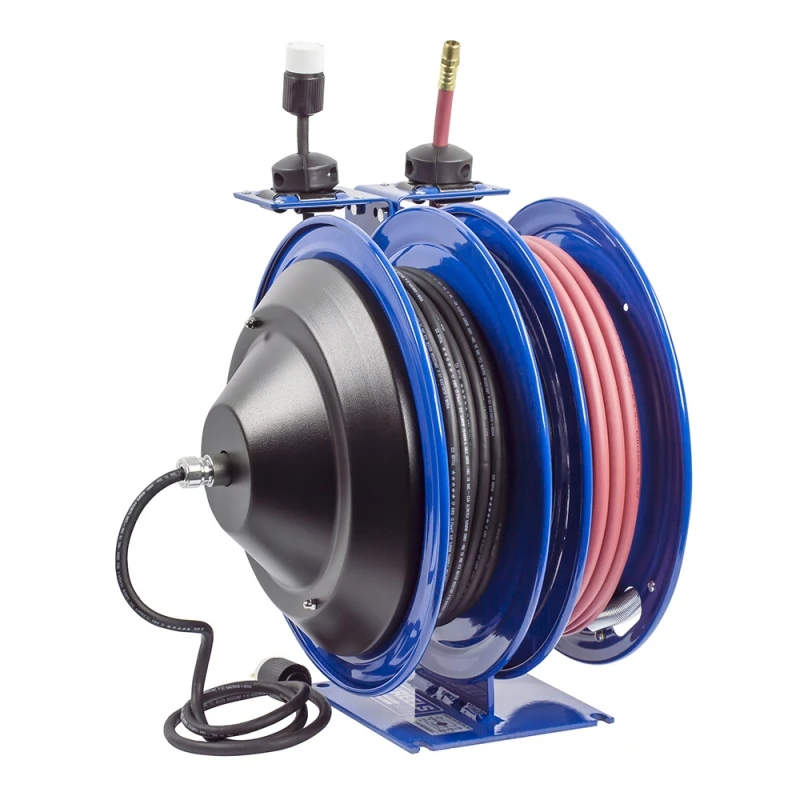

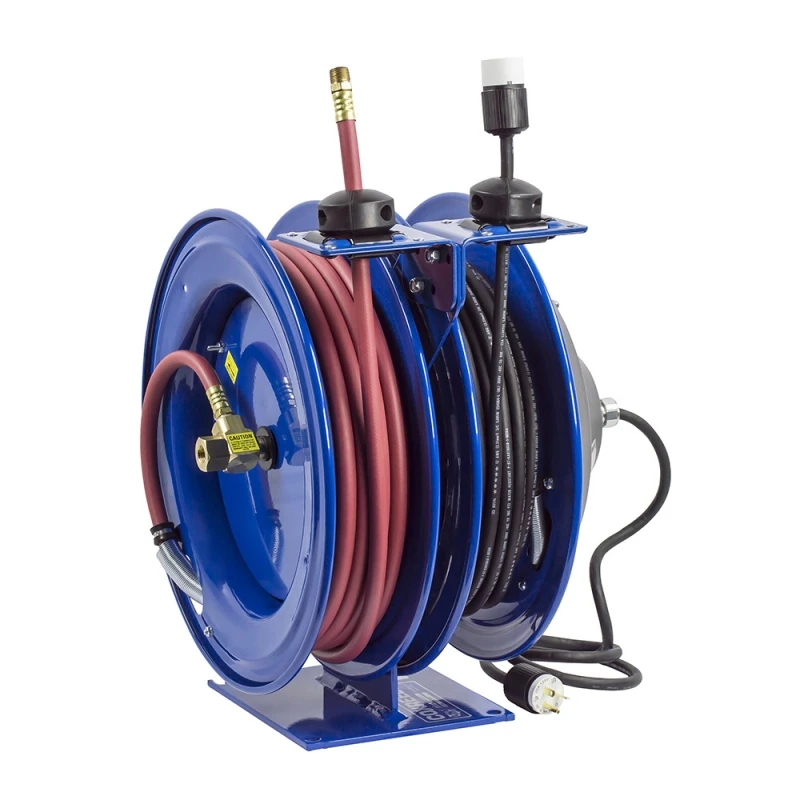

Coxreels C-L350-5016-K is a dual purpose electric/air spring rewind reel from the C Series, built to combine retractable compressed-air hose and retractable electrical cord storage in one compact mounted assembly. This model includes a 50 ft hose length with 3/8" hose I.D., a 300 PSI maximum pressure rating, and a 50 ft 16/3 SJTO cord rated for 13 amps at 115 volts. The supplied super-bright LED light with tool tap on handle gives indoor work areas air service, task lighting, and compatible cord-end power access from one reel station.
The C-L350-5016-K uses two independent self-retracting assemblies, allowing the air hose and electrical cord to be pulled out, locked, and rewound separately. This configuration helps reduce loose hose and cord across floors, benches, and service areas while keeping both pneumatic and electrical access close to the point of work.
Type: Dual Purpose Electric/Air Spring Rewind Reel | Series: C Series | Model: C-L350-5016-K | Configuration: With Hose, With Cord, Super-Bright LED Light with Tool Tap on Handle | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Cord Size: 16/3 AWG | Cord Type: SJTO | Cord Length: 50 ft | Amps: 13 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: Spring Rewind | Use: Indoor Use Only | Overall Dimensions: 16" W x 18.63" H x 17" L | Mounting Pattern: 7" x 8" | Base: 8" x 9" | Approx. Ship Weight: 79 lbs
Features:
- Dual purpose air/electric reel combines one retractable air hose reel and one retractable power cord reel in a compact two-reel assembly.
- Independent hose and cord operation lets users pull out only the air hose, only the light cord, or both depending on the task.
- 50 ft of 3/8" I.D. hose provides practical compressed-air reach for service bays, maintenance benches, repair stations, and production work areas.
- 300 PSI pressure rating supports compatible air service when the air supply, fittings, hose, and connected pneumatic equipment match the reel rating.
- 50 ft of 16/3 SJTO cord provides retractable electrical reach for the supplied LED light and tool tap handle configuration.
- Super-bright LED light with tool tap on handle provides localized task lighting while also supporting compatible cord-end power access at the work area.
- 13 amp and 115 volt rating supports compatible electrical loads when the connected equipment and power source remain within the reels listed capacity.
- Single combined mounting footprint helps save space compared with installing separate air hose and power cord or light reels at the same workstation.

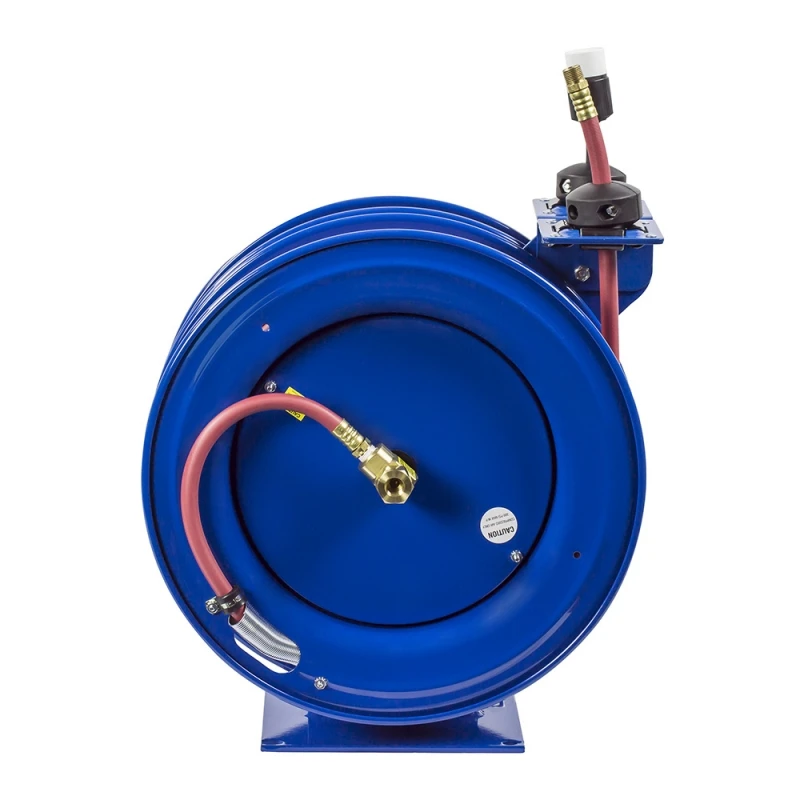

- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports air delivery and routine service access.
- External CPC powder coated steel component cover allows easier access to the electrical slip ring area for routine maintenance.
- Guide arm adjusts for wall, floor, and overhead mounting positions to match the installation location and payout direction.
- Enclosed factory-tuned cartridge-style spring motors retract the hose and cord after use.
- Multi-position lock ratchet mechanisms secure the hose and cord at the selected working lengths during operation.
Made in USA:
Applications:
- Automotive, fleet, and equipment service bays where technicians need compressed air, retractable task lighting, and compatible cord-end power access from one location.
- Maintenance shops and MRO departments where one mounted station can help manage both pneumatic hose and electrical cord storage.
- Manufacturing, assembly, and repair workstations that need organized point-of-use air access with lighting at the work surface.
- Garages, warehouses, and indoor industrial workspaces where retractable hose and cord storage helps reduce floor clutter around benches and equipment.
- Service areas with limited mounting space where a dual purpose reel can replace two separately installed reels.
FAQs:
- Q: Does the Coxreels C-L350-5016-K include both hose and cord?
A: Yes. This model includes 50 ft of 3/8" I.D. hose and 50 ft of 16/3 SJTO cord. - Q: What accessory is supplied with this model?
A: The C-L350-5016-K is configured with a super-bright LED light with tool tap on handle. - Q: Do the air hose and electrical cord rewind separately?
A: Yes. The C Series air/electric reel uses two independent self-retracting assemblies, so the hose and cord can be pulled out, locked, and rewound separately. - Q: What air hose size and pressure rating does this reel provide?
A: This model includes 50 ft of 3/8" I.D. hose with a 300 PSI maximum pressure rating. Confirm that the air system, fittings, and connected pneumatic equipment are compatible before use. - Q: What electrical rating does this model have?
A: The C-L350-5016-K is rated for 13 amps at 115 volts, 60 Hz single phase. Connected equipment used through the tool tap must remain within the reels electrical rating. - Q: What does SJTO cord mean?
A: SJTO is a flexible service cord type used for portable electrical cord applications. In this reel, it identifies the 16/3 cord supplied with the light and tool tap handle. - Q: How is the C-L350-5016-K different from the C-L350-5016-H?
A: Both models include 50 ft of 3/8" hose and 50 ft of 16/3 SJTO cord. The C-L350-5016-K includes a super-bright LED light with tool tap on handle, while the C-L350-5016-H is listed with an industrial duty LED light. - Q: Can this reel be used outdoors?
A: No. Coxreels lists C Series air/electric reels for indoor use only. - Q: When should I choose a dual air/electric reel?
A: Choose a dual purpose reel when a workstation needs both compressed air and electrical cord access from the same mounted location and a single combined footprint is preferred over separate reels.
| HOSE & CORD | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | INLET OUTLET |
AWG / NO COND. |
CORD FT. |
TYPE | AMPS. | I.D. | O.D. | FT. | PSI | APRX. LBS. |
|
|
FOR INDOOR USE ONLY!Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies. All Models rated: 115 volts, 3*conductors, 60hz single phase.
|
||||||||||||
| C-L350-5016-A | Single Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 | |
| C-L350-5012-A | Single Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 | |
| C-L350-5012-B | Quad “4 Plug” Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 85 | 1 | |
| C-L350-5016-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 | |
| C-L350-5012-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 | |
| C-L350-5016-E | Caged Drop Light with Tool Tap Plug† |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 | |
| C-L350-5016-H | Industrial Duty LED Light† |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 | |
| C-L350-5016-K | Super-Bright LED Light with Tool Tap on Handle |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 | |
| C-L350-5016-M | Compact Super-Bright LED Light |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 | |
| C-L350-5016-X | With Hose, With Cord, Less Accessory |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 78 | 1 | |
| C-L350-5012-X | With Hose, With Cord, Less Accessory |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 83 | 1 | |
| C-L350-5012-4 | With Hose, With Cord, Less Accessory |
12 / 4 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 86 | ||
| C-L350L-5016L-X | Less Hose, Less Cord, Less Accessory |
16 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 | |
| C-L350L-5012L-X | Less Hose, Less Cord, Less Accessory |
12 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
