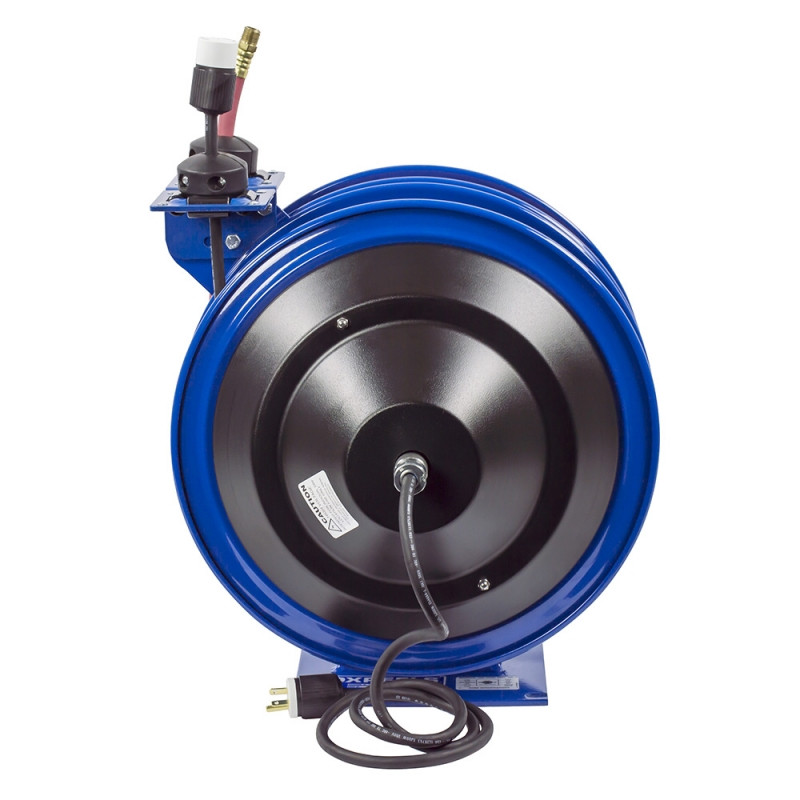

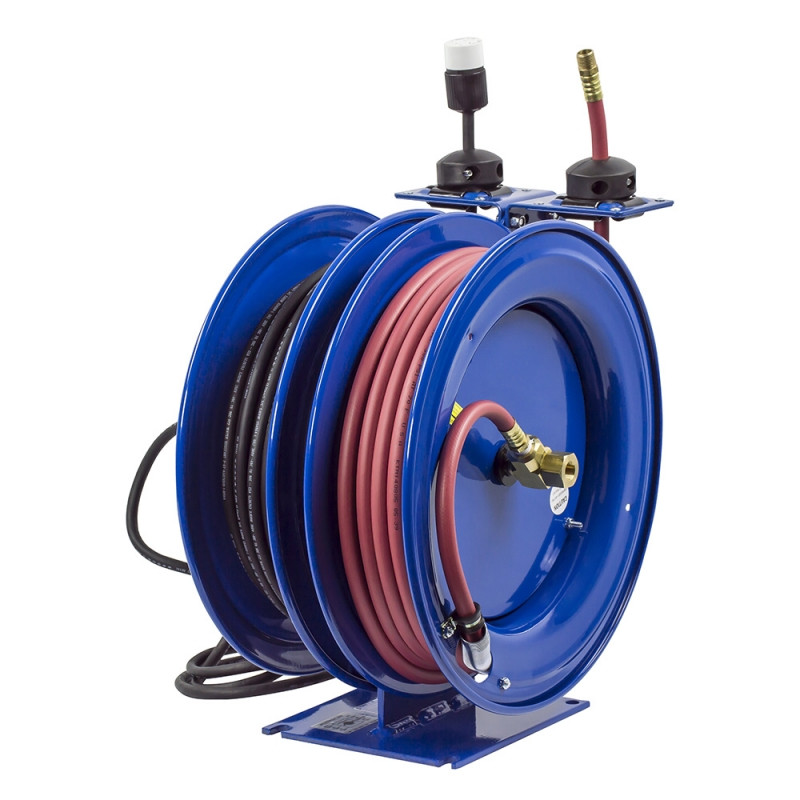

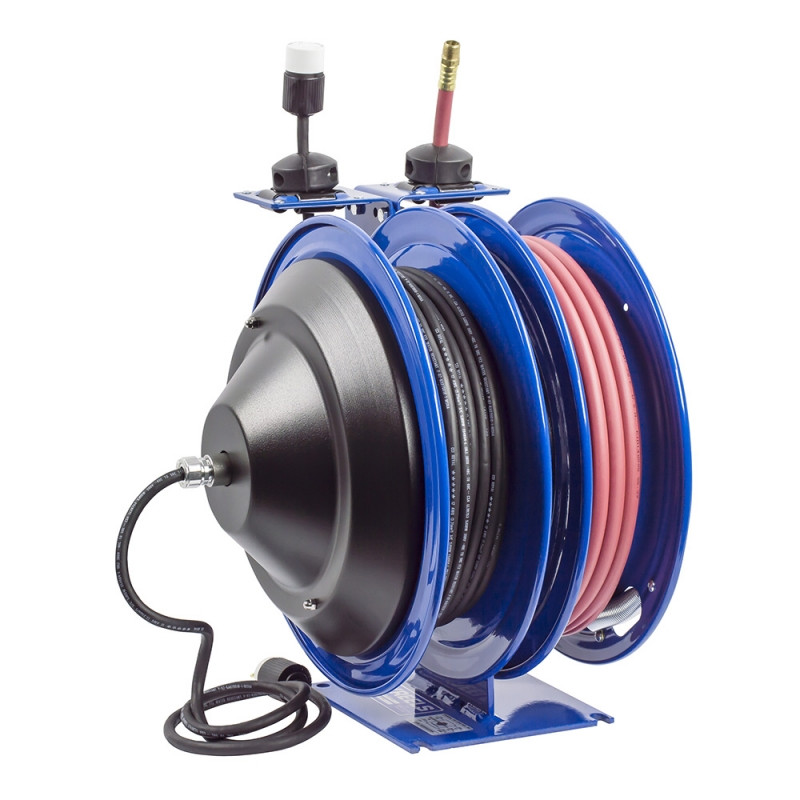

For indoor workstations that need compressed air and G.F.C.I.-protected electrical access from one mounted reel assembly, the Coxreels C-L350-5016-F Dual Purpose Electric/Air spring rewind reel combines a low-pressure air hose reel and electric cord reel in the C Air-Electric Series platform. This model includes 50 ft of 3/8" I.D. hose, is rated for 300 PSI, and includes a 16/3 AWG, 50 ft SJO cord with a 13 amp electrical rating. G.F.C.I. stands for ground fault circuit interrupter, a receptacle style designed to interrupt power when a ground fault is detected.
The C-L350-5016-F uses spring rewind, a spring-powered retraction system that returns the hose and cord after use. Coxreels C Series combination reels operate as two independent self-retracting assemblies in one compact unit, helping reduce mounting space compared with installing separate air and electric reels. The single expanded steel mounting base provides one mounting pattern, while the multi-position lock ratchet, enclosed cartridge-style spring motor, adjustable guide arm, solid brass full-flow NPT swivel, nitrile swivel seals, and CPC powder coat finish help keep air and electrical access organized in shop, repair, maintenance, and service environments.
Type: Dual Purpose Electric/Air Spring Rewind Reel | Series: C Air-Electric Series | SKU: C-L350-5016-F | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Electrical Accessory: Duplex G.F.C.I. Metal Industrial Receptacle | Cord: 16/3 AWG, 50 ft SJO | Electrical Rating: 115 V, 13 Amps, 60 Hz Single Phase | Service: Air, Electric | Rewind Type: Spring Rewind | Ship Weight: 79 lb | Overall Dimensions: 16" W x 18.63" H x 17" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y
Features:
- Dual purpose C Air-Electric Series design combines air hose and electrical cord management in one compact reel assembly.
- Duplex G.F.C.I. metal industrial receptacle configuration supports indoor workstations where ground-fault protection is needed for the electrical accessory side.
- Independent spring rewind assemblies allow the air hose and electric cord to be pulled out and retracted separately from the same mounted station.
- Single expanded 1/4" steel mounting base adds stability and reduces installation time compared with mounting two separate reels.
- Multi-position lock ratchet mechanism secures the hose or cord at the desired working length during use.
- Enclosed factory tuned cartridge-style spring motor is designed for controlled rewind operation and service accessibility.
- External air path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Includes 5 ft lead cable and grounding plug, except on less-cord models.
- Guide arm adjusts for wall, floor, and overhead mounting positions.
- CPC powder coat finish, rolled ribbed discs, 1" solid steel axle, and lubricated precision bearings support smooth rotation and routine shop use.
Made in USA:
Applications:
- Indoor repair bays and service stations where compressed air and G.F.C.I.-protected electrical access are needed at the same work area.
- Fleet maintenance garages where a single mounted reel assembly helps organize air hose and power cord access.
- Production benches, maintenance cells, and assembly areas where shared air and electric access helps reduce loose hose and cord around the workstation.
- Automotive, equipment, and facility maintenance areas where 50 ft of 3/8" air hose reach supports compatible low-pressure pneumatic tasks.
- Wall, floor, bench, or overhead installations where one combined reel is preferred over two separate reel assemblies.
FAQs:
- Q: Does the Coxreels C-L350-5016-F include hose?
A: Yes. This model includes 50 ft of 3/8" I.D. hose and is rated for 300 PSI low-pressure air service. - Q: What electrical accessory comes with this model?
A: The C-L350-5016-F is listed with a duplex G.F.C.I. metal industrial receptacle and a 16/3 AWG, 50 ft SJO cord. - Q: What does the 13 amp rating apply to?
A: The 13 amp rating applies to the electrical side of the reel. The electrical circuit, receptacle, cord configuration, and connected equipment should be checked for compatibility before use. - Q: How is the C-L350-5016-F different from the C-L350-5012-F?
A: Both models use a duplex G.F.C.I. metal industrial receptacle and include 50 ft of 3/8" hose rated to 300 PSI. The C-L350-5016-F uses 16/3 AWG cord with a 13 amp rating, while the C-L350-5012-F uses 12/3 AWG cord with a 20 amp rating. - Q: Is this reel for indoor or outdoor use?
A: The manufacturer catalog identifies the C Series air/electric models for indoor use only. Installation should follow applicable national and local electrical codes. - Q: Is this reel suitable for pressure washing?
A: No. The hose side is rated for 300 PSI low-pressure air service. Pressure washing requires a reel, hose, fittings, and accessories rated for the pressure washer's operating pressure.
| HOSE & CORD | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | AWG / NO COND. |
CORD FT. |
TYPE | AMPS. | I.D. | O.D. | FT. | PSI | APRX. LBS. |
|
|
FOR INDOOR USE ONLY!Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies. All Models rated: 115 volts, 3*conductors, 60hz single phase.
|
|||||||||||
| C-L350-5016-A | Single Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-A | Single Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5012-B | Quad “4 Plug” Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 85 | 1 |
| C-L350-5016-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5016-E | Caged Drop Light with Tool Tap Plug† |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-H | Industrial Duty LED Light† |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-K | Super-Bright LED Light with Tool Tap on Handle |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-M | Compact Super-Bright LED Light |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-X | With Hose, With Cord, Less Accessory |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 78 | 1 |
| C-L350-5012-X | With Hose, With Cord, Less Accessory |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 83 | 1 |
| C-L350-5012-4 | With Hose, With Cord, Less Accessory |
12 / 4 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 86 | |
| C-L350L-5016L-X | Less Hose, Less Cord, Less Accessory |
16 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
| C-L350L-5012L-X | Less Hose, Less Cord, Less Accessory |
12 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
