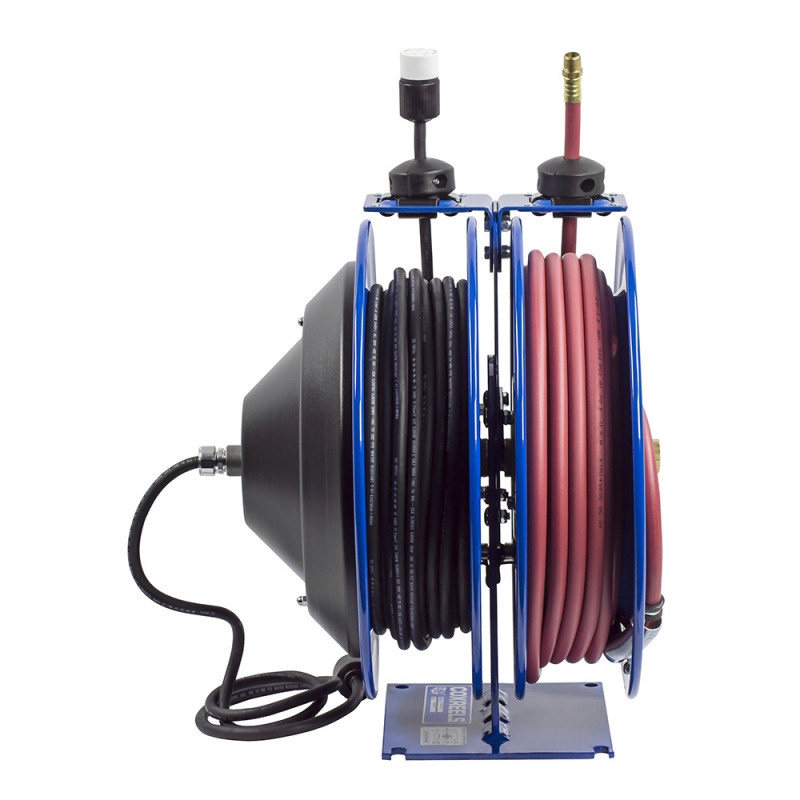

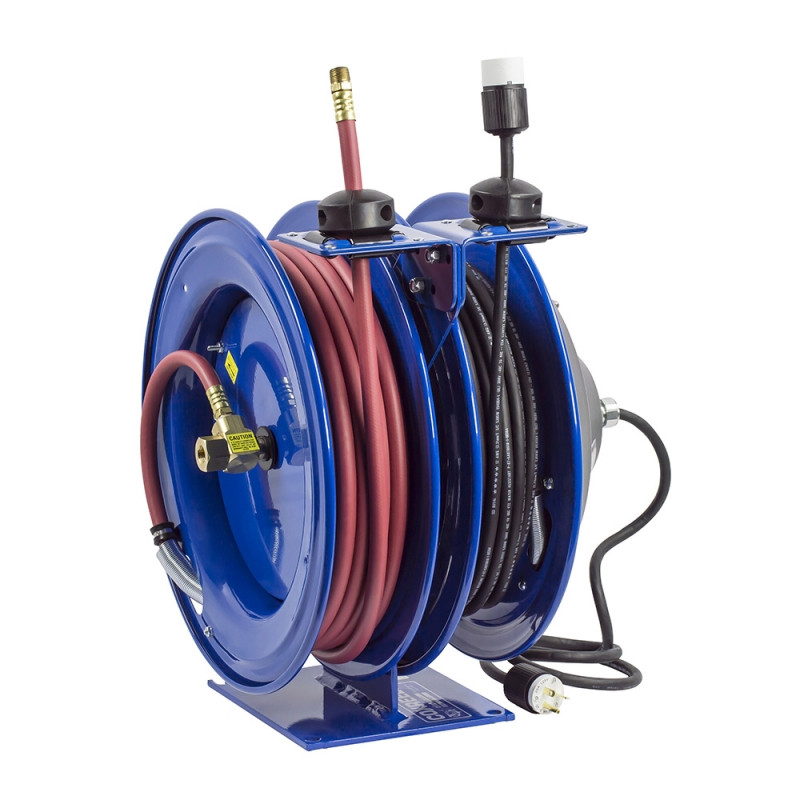

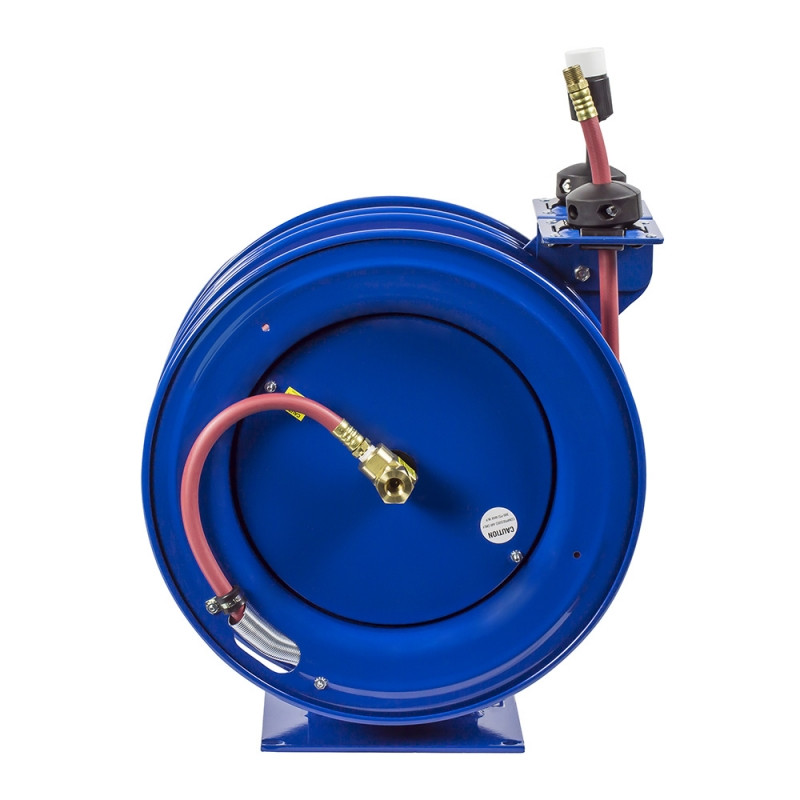

For workstations that need both compressed air and electrical access from one mounted reel assembly, the Coxreels C-L350-5012-A Dual Purpose Electric/Air spring rewind reel combines a low-pressure air hose reel and power cord reel in the C Series platform. This model includes 50 ft of 3/8" I.D. hose, is rated for 300 PSI, and is listed with a 20 amp electrical rating, making it a practical choice for shops, service bays, maintenance areas, fleet garages, and work cells where air and power are commonly used together.
The C-L350-5012-A uses spring rewind, a spring-powered retraction system that returns the hose and cord after use. Coxreels C Series combination reels place two reels in one compact assembly, helping reduce the space and installation time required compared with mounting separate air and electric reels. The single expanded mounting base adds stability and provides one mounting pattern, while the multi-position lock ratchet, enclosed spring motor, guide arm design, and CPC powder coat finish help keep the hose and cord organized, accessible, and easier to manage in busy service environments.
Type: Dual Purpose Electric/Air Spring Rewind Reel | Series: C Series | SKU: C-L350-5012-A | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Electrical Rating: 20 Amps | Service: Air, Electric | Rewind Type: Spring Rewind | Ship Weight: 84 lb | Overall Dimensions: 16" W x 18.63" H x 17" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y
Features:
- Dual purpose C Series design combines air hose and electrical cord management in one compact reel assembly.
- Spring rewind operation retracts the hose and cord after use to help reduce loose hose and cord around workstations, benches, and service bays.
- Single expanded mounting base adds stability and allows one mounting pattern instead of installing two separate reels.
- Multi-position lock ratchet mechanism lets the operator secure the hose or cord at the desired working length.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- Low-pressure air hose configuration supports compatible 300 PSI compressed air service when connected to a properly rated air system.
- Compact 16" overall reel width helps place air and electric access in areas where separate reels would take more mounting space.
- CPC powder coat finish supports routine use in shop, garage, fleet, maintenance, and industrial work areas.
Made in USA:
Applications:
- Service bays and repair stations where compressed air and electrical power are used together at the same work area.
- Fleet maintenance garages where a single mounted reel assembly helps keep air hose and power cord access organized.
- Production benches, maintenance cells, and assembly areas where shared air and electric access helps reduce floor clutter.
- Automotive, equipment, and facility maintenance areas where 50 ft of 3/8" air hose reach supports compatible low-pressure air tasks.
- Wall, bench, floor, ceiling, or vehicle-mounted locations where one combined reel is preferred over two separate installations.
FAQs:
- Q: Does the Coxreels C-L350-5012-A include hose?
A: Yes. This model includes 50 ft of 3/8" I.D. hose and is rated for 300 PSI low-pressure air service. - Q: What makes this a dual purpose reel?
A: The C Series air/electric configuration combines an air hose reel and an electrical cord reel into one compact assembly, reducing the need to mount two separate reels. - Q: What does the 20 amp rating refer to?
A: The 20 amp rating applies to the electrical side of the reel. The electrical circuit, plug, receptacle, and connected equipment should be checked for compatibility before use. - Q: Can this reel be used for water service?
A: This model is listed as an air/electric combination reel. Use it for compressed air and electrical service as specified, and select a hose reel specifically rated for water if water service is required. - Q: Is this reel suitable for pressure washing?
A: No. The hose side is rated for 300 PSI low-pressure air service. Pressure washing requires a reel, hose, fittings, and accessories rated for the pressure washer's operating pressure.
| HOSE & CORD | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | AWG / NO COND. |
CORD FT. |
TYPE | AMPS. | I.D. | O.D. | FT. | PSI | APRX. LBS. |
|
|
FOR INDOOR USE ONLY!Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies. All Models rated: 115 volts, 3*conductors, 60hz single phase.
|
|||||||||||
| C-L350-5016-A | Single Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-A | Single Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5012-B | Quad “4 Plug” Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 85 | 1 |
| C-L350-5016-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5016-E | Caged Drop Light with Tool Tap Plug† |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-H | Industrial Duty LED Light† |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-K | Super-Bright LED Light with Tool Tap on Handle |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-M | Compact Super-Bright LED Light |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-X | With Hose, With Cord, Less Accessory |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 78 | 1 |
| C-L350-5012-X | With Hose, With Cord, Less Accessory |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 83 | 1 |
| C-L350-5012-4 | With Hose, With Cord, Less Accessory |
12 / 4 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 86 | |
| C-L350L-5016L-X | Less Hose, Less Cord, Less Accessory |
16 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
| C-L350L-5012L-X | Less Hose, Less Cord, Less Accessory |
12 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
