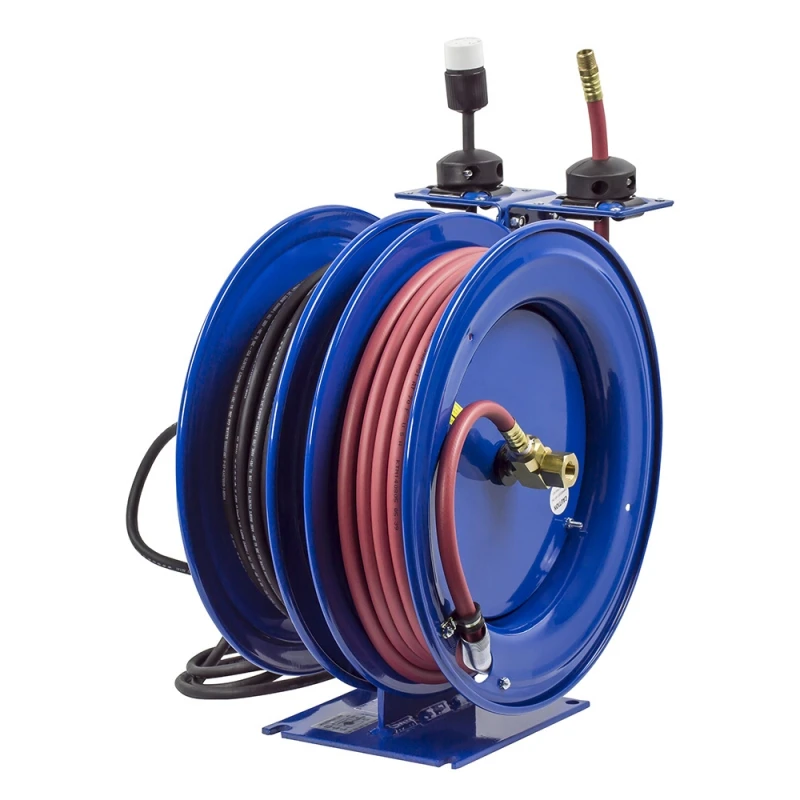

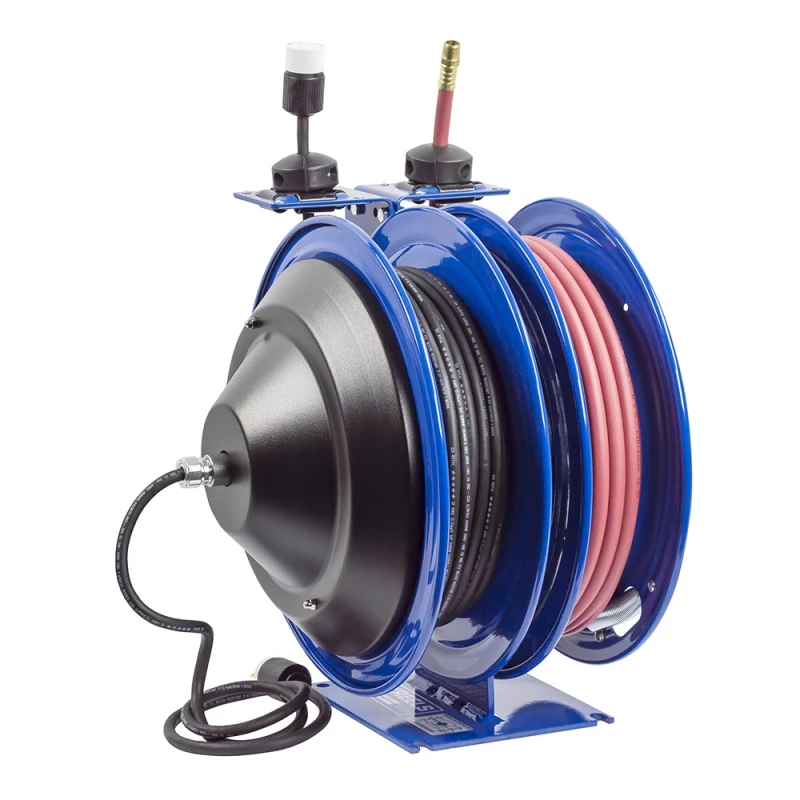

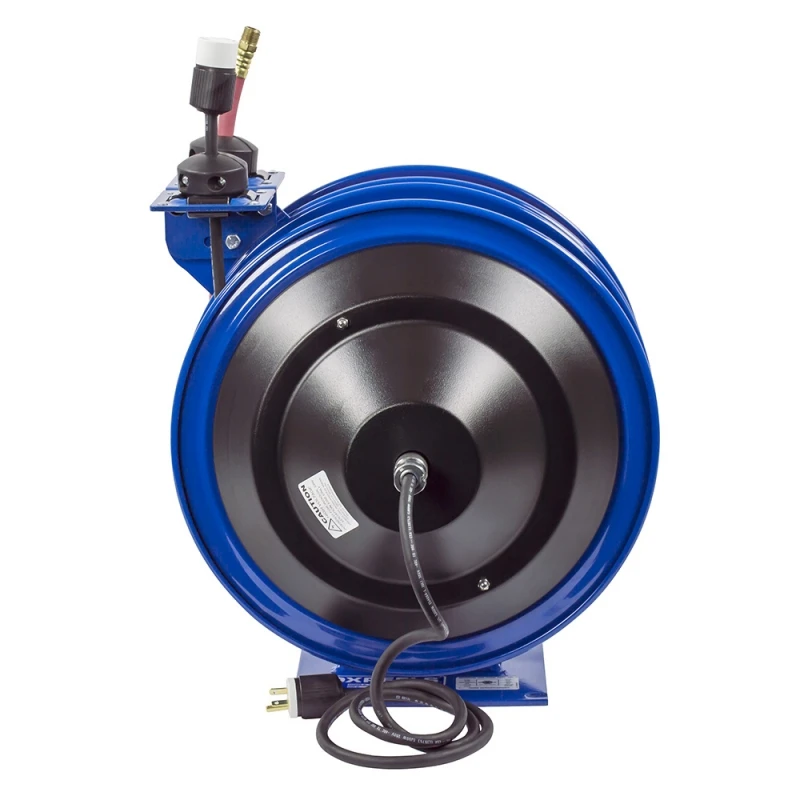

Coxreels C-L350-5016-H is a dual purpose electric/air spring rewind reel from the C Series, built to combine retractable compressed-air hose and retractable electrical cord storage in one compact mounted assembly. This model includes a 50 ft hose length with 3/8" hose I.D., a 300 PSI maximum pressure rating, and a 50 ft 16/3 SJTO cord with an industrial duty LED light, giving indoor service areas one organized reel station for air, power cord management, and task lighting.
The C-L350-5016-H uses two independent self-retracting assemblies, so the air hose and electrical cord can be pulled out, locked, and rewound separately depending on the job. The industrial duty LED light configuration is a good fit for work areas where users need localized illumination along with compressed-air access. The combined mounting base helps conserve space compared with installing separate hose and cord reels at the same workstation.
Type: Dual Purpose Electric/Air Spring Rewind Reel | Series: C Series | Model: C-L350-5016-H | Configuration: With Hose, With Cord, Industrial Duty LED Light | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Cord Size: 16/3 AWG | Cord Type: SJTO | Cord Length: 50 ft | Amps: 0.17 | Volts: 115 | Rewind Type: Spring Rewind | Overall Dimensions: 16" W x 18.63" H x 17" L | Mounting Pattern: 7" x 8" | Base: 8" x 9" | Approx. Ship Weight: 79 lbs
Features:
- Dual purpose air/electric reel combines one retractable air hose reel and one retractable power cord reel in a compact two-reel assembly.
- Independent hose and cord reels allow users to pull out only the air hose, only the cord and light, or both as needed for the task.
- 50 ft of 3/8" I.D. hose provides practical compressed-air reach for service bays, maintenance benches, repair areas, and production workstations.
- 300 PSI pressure rating supports compatible air service when the system pressure, fittings, hose, and connected pneumatic tools match the reel rating.
- 50 ft of 16/3 SJTO cord provides retractable electrical reach for the supplied industrial duty LED light.
- Industrial duty LED light helps provide localized task lighting at the point of work while keeping the light cord retractable between tasks.
- 0.17 amp and 115 volt electrical rating supports the listed LED light configuration when connected to a compatible 115 volt power source.
- Single combined mounting base helps save space compared with mounting separate air hose and lighting cord reels in the same work area.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports air delivery and routine service access.
- External CPC powder coated steel component cover allows easier access to the electrical slip ring area for routine maintenance.
- Guide arm adjusts for wall, floor, and overhead mounting positions to match the installation location and payout direction.
- Enclosed factory-tuned cartridge-style spring motors retract the hose and cord after use.
- Multi-position lock ratchet mechanisms secure the hose and cord at the selected working lengths during operation.
Made in USA:
Applications:
- Automotive, fleet, and equipment service bays where technicians need compressed air and retractable task lighting from one mounted reel location.
- Maintenance shops and MRO departments where one station can help manage both pneumatic hose and LED work light cord storage.
- Manufacturing, assembly, and repair workstations that need organized point-of-use air access and localized lighting.
- Garages, warehouses, and indoor industrial work areas where retractable hose and cord storage helps reduce floor clutter around benches and equipment.
- Service areas with limited mounting space where one dual purpose reel may be preferred over separately mounted air hose and cord reels.
FAQs:
- Q: Does the Coxreels C-L350-5016-H include both hose and cord?
A: Yes. This model includes 50 ft of 3/8" I.D. hose and 50 ft of 16/3 SJTO cord with an industrial duty LED light. - Q: What light is supplied with this model?
A: The C-L350-5016-H is listed with an industrial duty LED light. - Q: Do the air hose and light cord operate independently?
A: Yes. The C Series air/electric reel uses two independent self-retracting assemblies, so the hose and cord can be pulled out and rewound separately. - Q: What air hose size and pressure rating does this reel provide?
A: This model includes 50 ft of 3/8" I.D. hose with a 300 PSI maximum pressure rating. Confirm that the air system, fittings, and connected pneumatic equipment are compatible before use. - Q: What electrical rating does this LED light reel have?
A: The C-L350-5016-H is listed at 0.17 amps and 115 volts for the industrial duty LED light configuration. Use it only with a compatible 115 volt power source. - Q: What does SJTO cord mean?
A: SJTO is a flexible service cord type used for portable electrical cord applications. In this model, it identifies the 16/3 cord supplied with the LED light side of the reel. - Q: How is the C-L350-5016-H different from the C-L350-5016-E?
A: Both models include 50 ft of 3/8" hose and 50 ft of 16/3 SJTO cord. The C-L350-5016-H is configured with an industrial duty LED light, while the C-L350-5016-E is configured with an incandescent caged drop light with tool tap plug. - Q: When should I choose a dual air/electric reel?
A: Choose a dual purpose reel when a workstation needs both compressed air and retractable electrical cord access from the same location and a single mounting base is preferred over two separate reels.
| HOSE & CORD | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | AWG / NO COND. |
CORD FT. |
TYPE | AMPS. | I.D. | O.D. | FT. | PSI | APRX. LBS. |
|
|
FOR INDOOR USE ONLY!Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies. All Models rated: 115 volts, 3*conductors, 60hz single phase.
|
|||||||||||
| C-L350-5016-A | Single Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-A | Single Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5012-B | Quad “4 Plug” Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 85 | 1 |
| C-L350-5016-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5012-F | Duplex G.F.C.I. Metal Industrial Receptacle† |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 84 | 1 |
| C-L350-5016-E | Caged Drop Light with Tool Tap Plug† |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-H | Industrial Duty LED Light† |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-K | Super-Bright LED Light with Tool Tap on Handle |
16 / 3 | 50 | SJTO | 13 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-M | Compact Super-Bright LED Light |
16 / 3 | 50 | SJTO | .17 | 3/8" | 5/8" | 50 | 300 | 79 | 1 |
| C-L350-5016-X | With Hose, With Cord, Less Accessory |
16 / 3 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 78 | 1 |
| C-L350-5012-X | With Hose, With Cord, Less Accessory |
12 / 3 | 50 | SJO | 20 | 3/8" | 5/8" | 50 | 300 | 83 | 1 |
| C-L350-5012-4 | With Hose, With Cord, Less Accessory |
12 / 4 | 50 | SJO | 13 | 3/8" | 5/8" | 50 | 300 | 86 | |
| C-L350L-5016L-X | Less Hose, Less Cord, Less Accessory |
16 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
| C-L350L-5012L-X | Less Hose, Less Cord, Less Accessory |
12 / 3 | 50 | N/A | 25 | 3/8" | 5/8" | 50 | 300 | 71 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Electric/Air Spring Rewind Reel
- Series
- C Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 50
- Hose Included
- Yes
- Maximum Working Pressure (PSI)
- 300
- Amps (A)
- 0.17
