Coxreels 1175-6-200-ED Electric DC Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

Built for powered retrieval of long, large-diameter hose in locations where a standard electric motor may not be suitable, the Coxreels 1175-6-200-ED uses a 12V DC, 1/2 HP explosion-proof reversible motor. The reel stores up to 200 ft of 1" I.D. hose, providing substantial reach for mobile fluid-delivery equipment, industrial service stations, water trucks, construction operations, and properly evaluated hazardous-location installations.

The motor turns the drum through a reliable chain-and-sprocket drive, reducing the manual effort required to retrieve a fully extended hose. The reel's fluid path carries a 3,000 PSI maximum pressure rating when paired with correctly rated hose, fittings, and system components. Its larger 1175 Series chassis accommodates the specified hose volume, while the low-profile outlet riser and open drum slot help produce flat, smooth wraps during rewind.

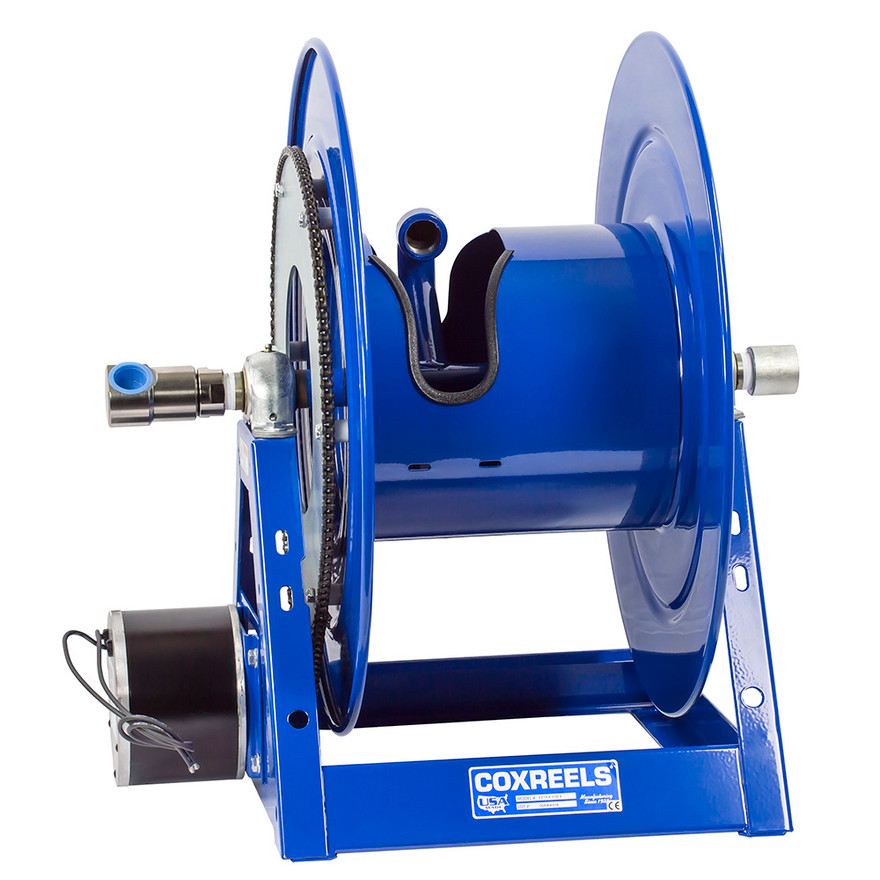

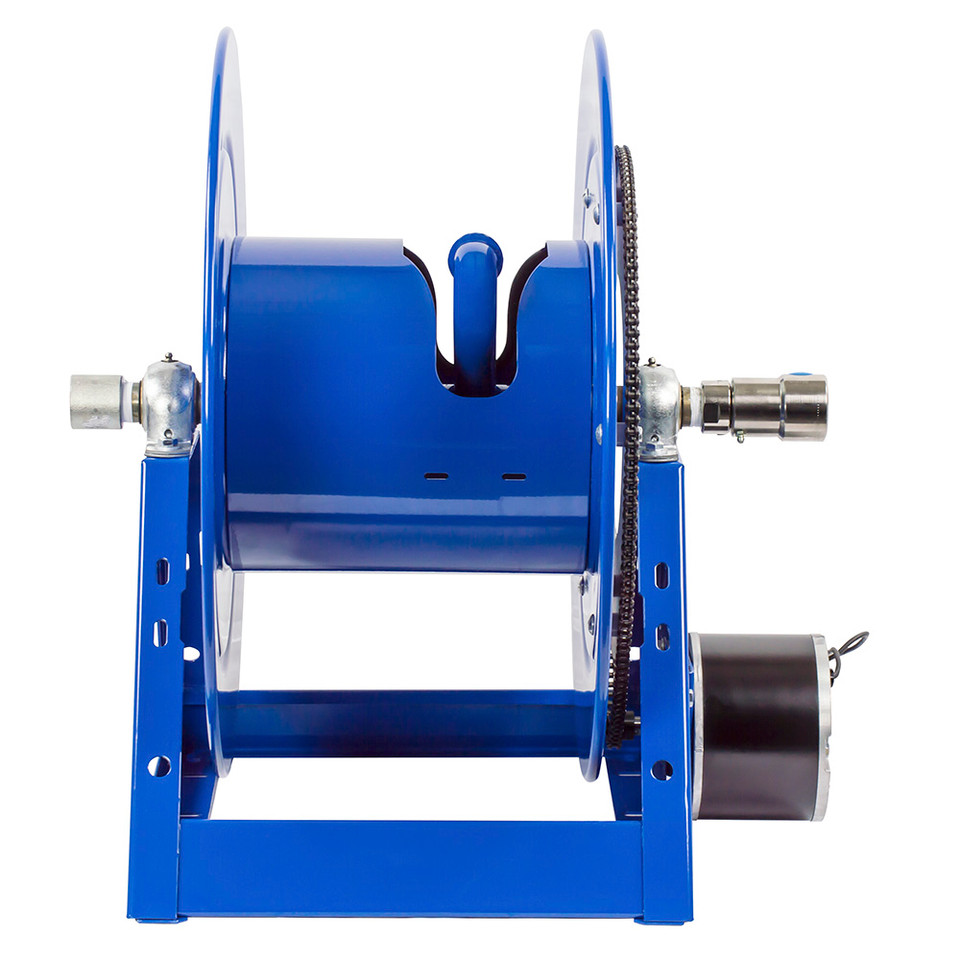

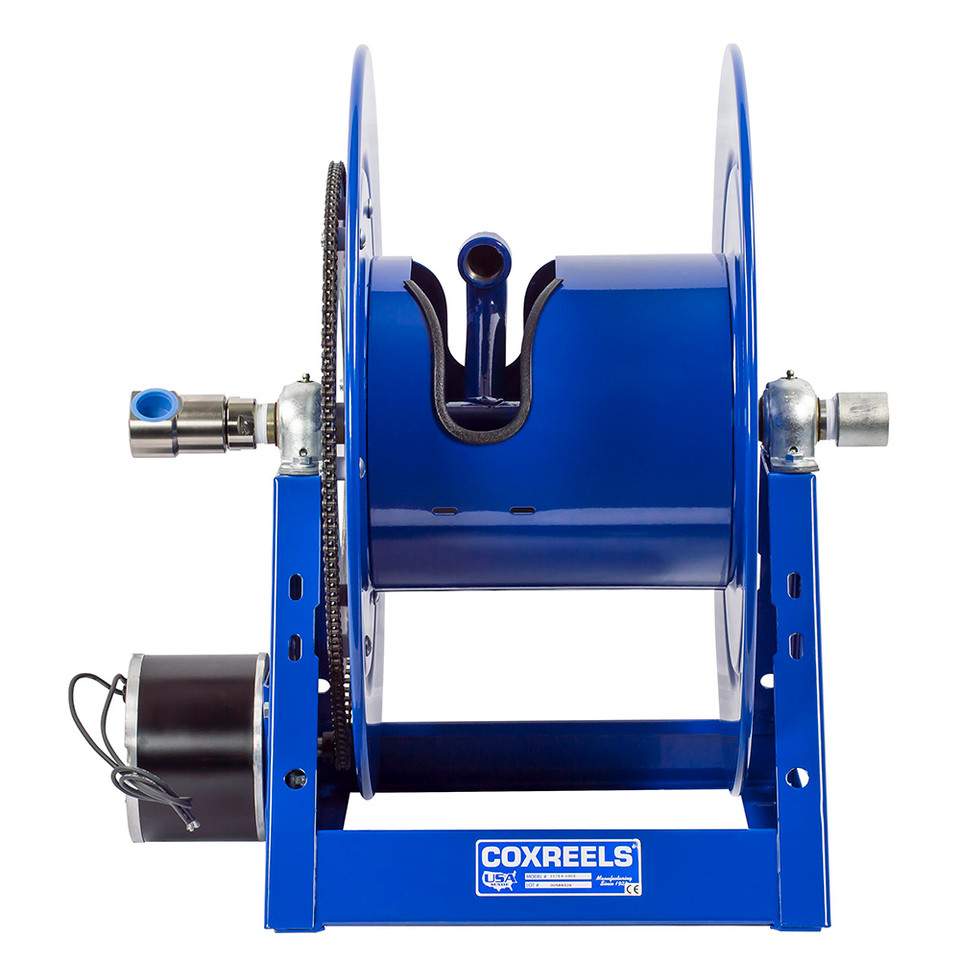

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric DC Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-200-ED | Configuration: Less Hose | Motor: 12V DC, 1/2 HP, Explosion-Proof, Reversible | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 200 ft | Optional Hose Capacity: 300 ft of 3/4" I.D. hose with reducer | Inlet Swivel Assembly: 1" Female NPT, 90° | Outlet Riser: 1" Female NPT | Maximum Pressure: 3,000 PSI

Features:

• 12V DC, 1/2 HP explosion-proof reversible motor provides powered hose retrieval for appropriately evaluated installations.

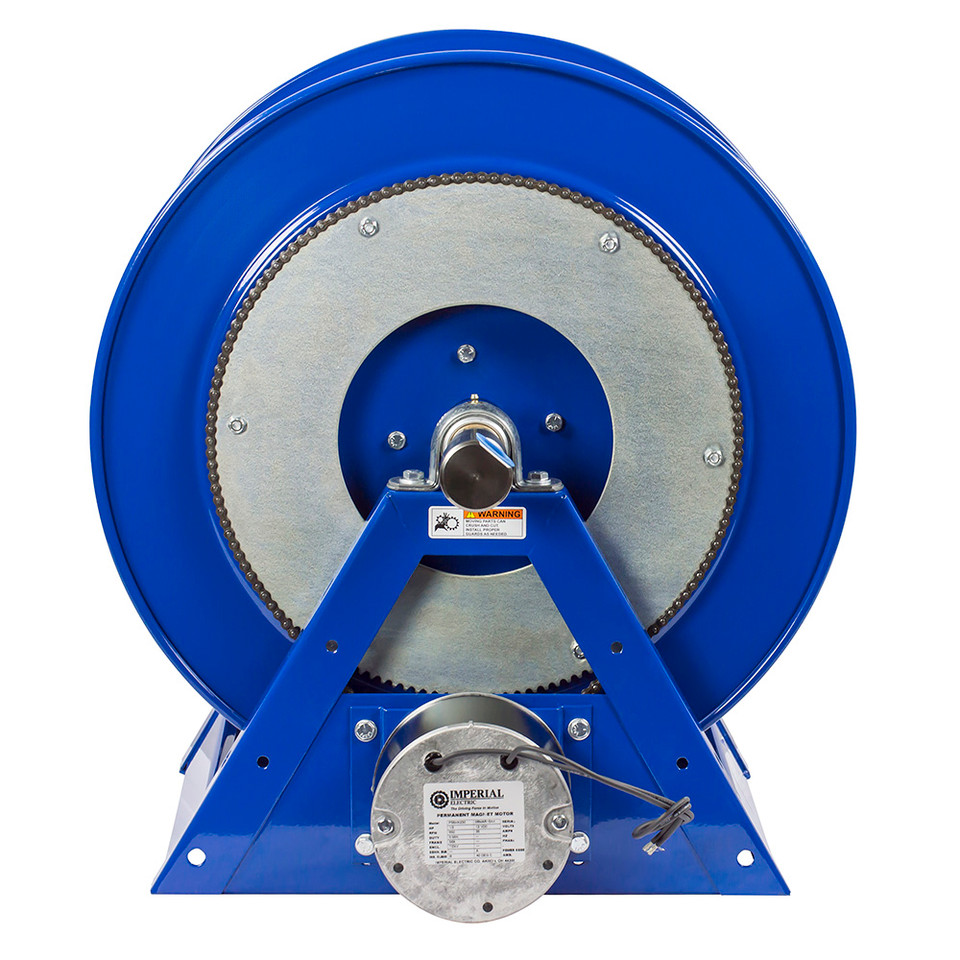

• Reliable chain-and-sprocket drive transfers motor output to the reel drum.
• Larger 1175 Series chassis accommodates greater hose capacities and larger hose diameters.

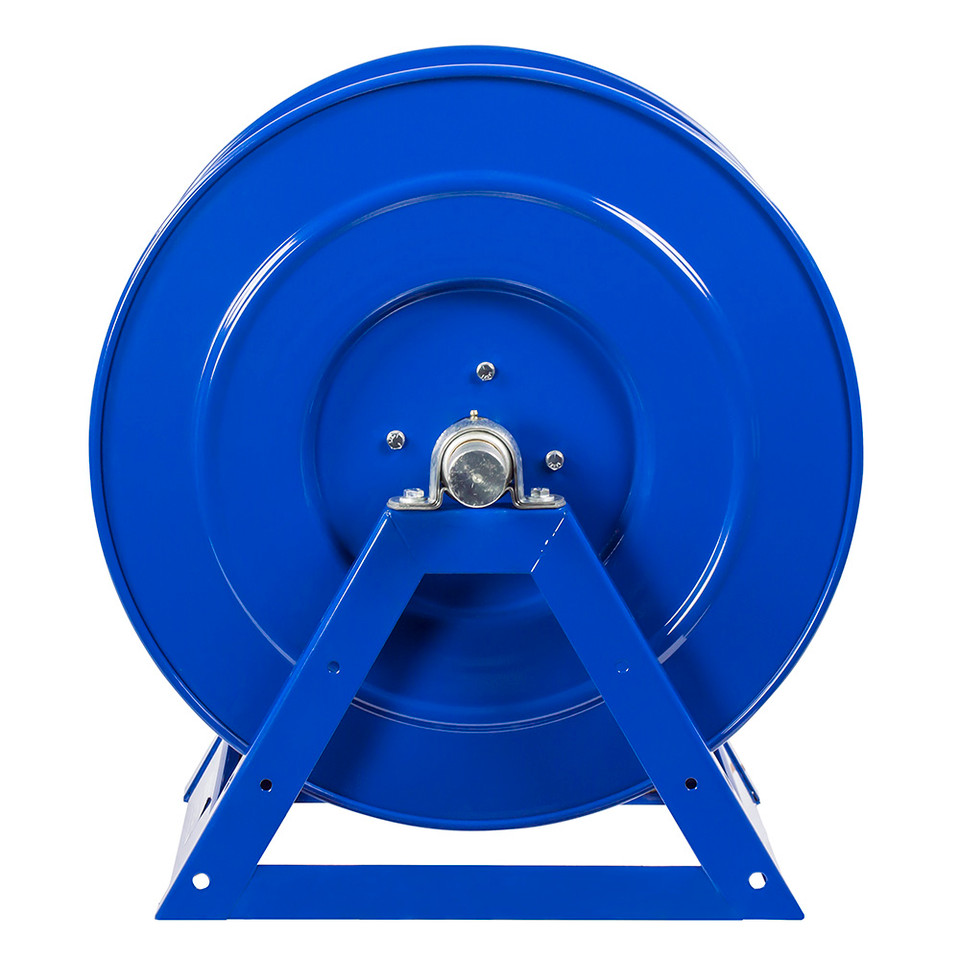

• All-welded steel 'A' frame construction provides a stable reel structure for mobile or stationary mounting.
• Nickel-plated steel 90-degree full-flow NPT swivel inlet supports an unrestricted fluid path through the reel.
• AFLAS swivel seals are used with the standard reel fluid-path configuration.
• Optional stainless steel 304 fluid path is available for applications requiring that material configuration.
• Low-profile outlet riser and open drum slot promote flat, smooth hose wrapping without a sharp bend at the connection point.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation.
• Adjustable tension brake helps prevent uncontrolled free-wheeling during hose payout.
• Rolled edges and ribbed discs add structural strength while reducing exposed sharp-edge contact points.
• Durable proprietary CPC powder-coat finish helps protect the steel reel structure.

Made in USA:

2 Year Warranty

Applications:

• Mobile fluid-delivery equipment equipped with a compatible 12V DC electrical system.
• Water trucks and utility vehicles requiring powered retrieval of long, large-diameter hose.
• Petroleum and compatible fluid-transfer installations where the complete electrical system is approved for the classified location.
• Construction and industrial service equipment that requires powered rewind without access to standard AC power.
• Agricultural watering, spraying, and bulk-fluid handling systems operating within the reel's pressure limits.
• Lubricant or chemical-fluid transfer systems using hose, seals, fittings, and wetted components verified for the conveyed material.

FAQs:

• Q: Does the Coxreels 1175-6-200-ED include hose?
  A: No. This model is supplied as a reel only. Hose must be selected separately according to the required diameter, working pressure, temperature range, bend radius, and fluid compatibility.
• Q: What does the 'ED' suffix mean?
  A: The 'ED' suffix identifies a 12V DC, 1/2 HP explosion-proof reversible motor. It differs from the standard 'E' option, which uses a 12V DC, 1/3 HP reversible motor that is not listed as explosion-proof.
• Q: Does the explosion-proof motor make the complete reel installation automatically suitable for a hazardous location?
  A: No. The motor is identified as explosion-proof, but the complete installation must meet the applicable location classification, wiring, control, enclosure, grounding, and electrical code requirements. Suitability should be confirmed by a qualified professional before installation.
• Q: How much hose can this reel store?
  A: The standard capacity is 200 ft of 1" I.D. hose with a 1-7/16" outside diameter. The reel can alternatively hold up to 300 ft of 3/4" I.D. hose with a 1-1/4" outside diameter when the appropriate reducer is used.
• Q: Does the 3,000 PSI rating apply to the electric motor?
  A: No. The 3,000 PSI rating applies to the reel's fluid-handling path. The motor operates from a separate 12V DC electrical system and must be connected using properly rated wiring, controls, and circuit protection.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
