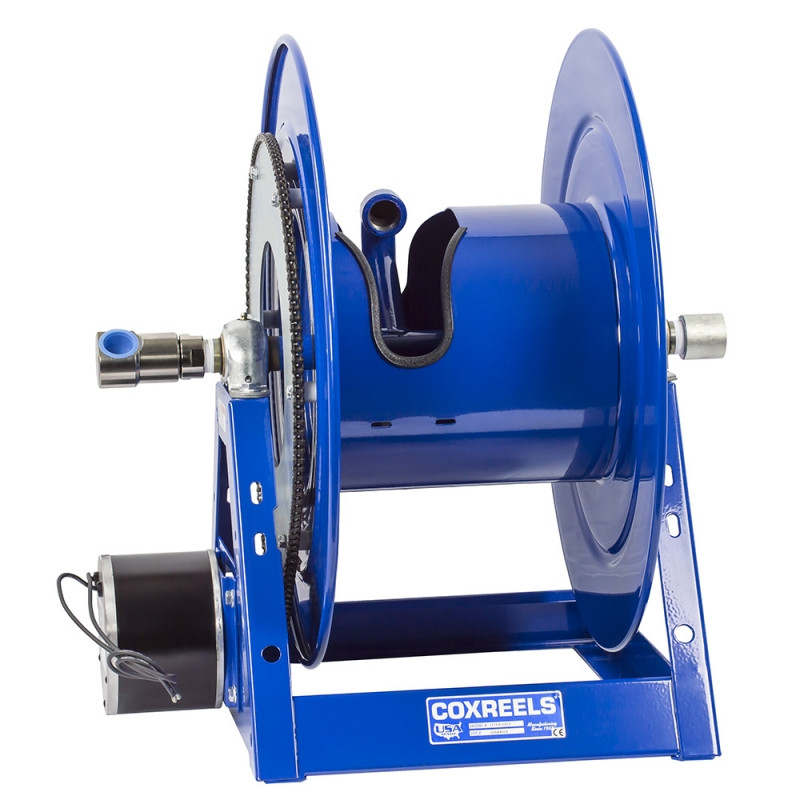

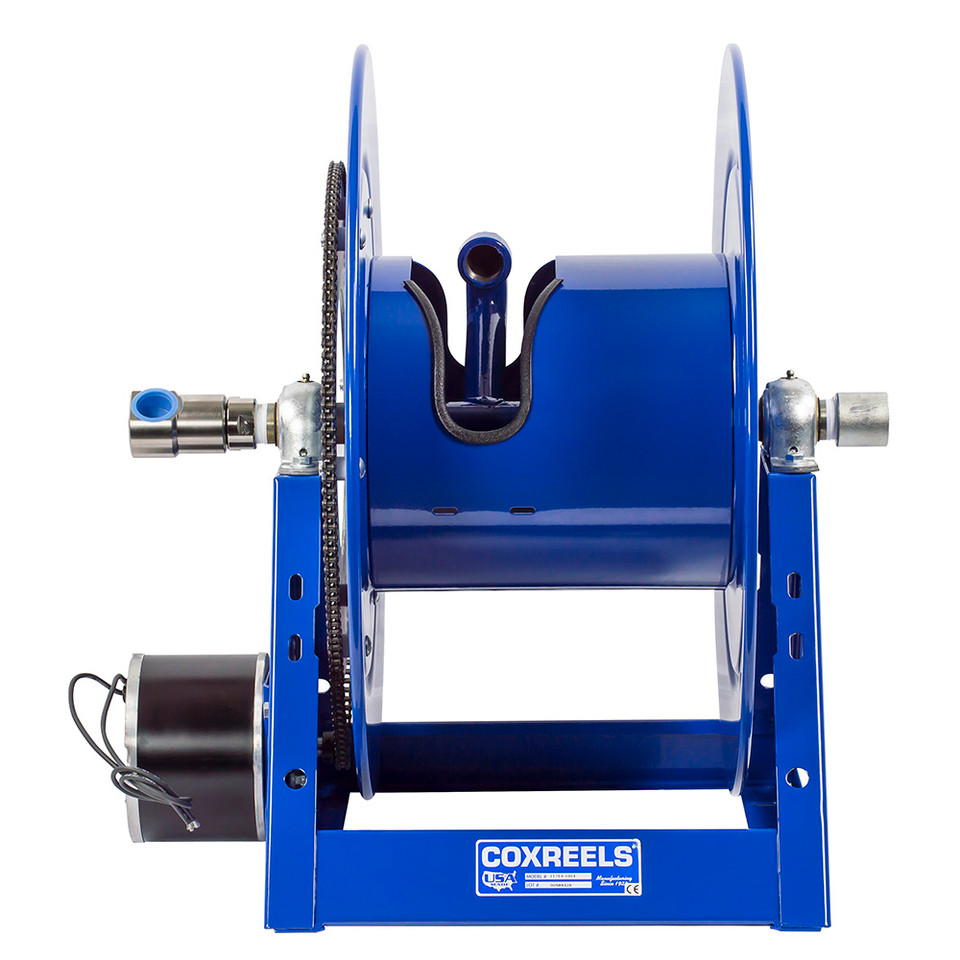

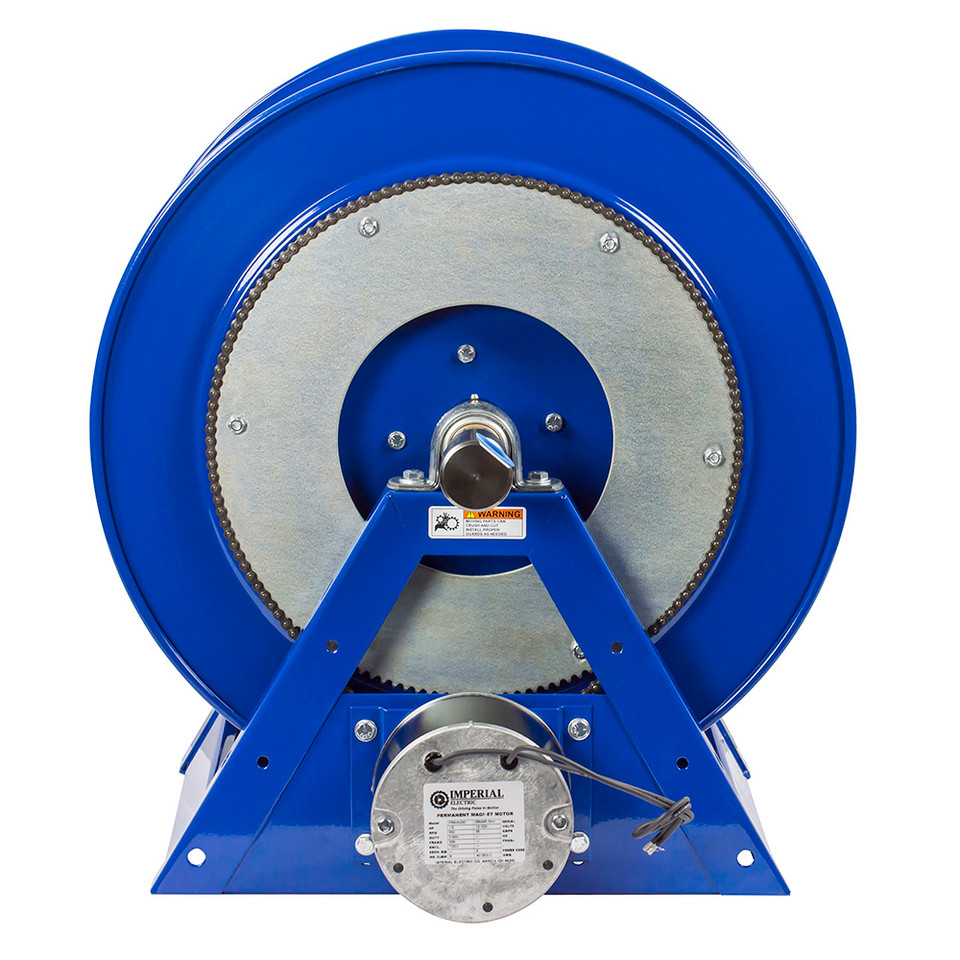

Coxreels 1175-6-200-EJ Electric 230V AC Explosion Proof Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

Large classified-area facilities refineries, offshore platforms, chemical processing plants, and heavy industrial installations outside North America sometimes need a motorized hose reel that covers 200 feet of reach, operates in a hazardous location, and connects directly to 230-volt AC infrastructure without a step-down transformer. The Coxreels 1175-6-200-EJ puts a 230V AC, 1/2 HP explosion-proof reversible AC-rectified motor (an AC-powered drive whose supply is internally converted to direct current for the motor windings, enabling powered hose pay-out and retraction from a standard 230V circuit in a classified hazardous location) on the maximum-capacity 1175 Series drum 200 feet of 1-inch ID hose at 3,000 PSI, mounted directly into the facility's existing 230V single-phase service with no additional power conversion. At this capacity and voltage combination, the 1175-6-200-EJ is the highest-reach 230V explosion-proof option in the 1175 Series, covering the large bay distances, extended piping corridors, and wide deck areas that shorter drums cannot reach from a single fixed installation point. AFLAS swivel seals, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and the all-welded 12-gauge steel A-frame bring the same construction depth as every motorized variant in this series scaled to the demands of the largest drum at the highest-specification motor option.

Type: Electric Motor Rewind Hose Reel | Series: 1175 | Motor Type: 230V AC, 1/2 HP, Explosion Proof, Reversible AC Rectified | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 200 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 26.13 | Length (in.): 24 | Mounting Pattern M (in.): 23.31 | Mounting Pattern N (in.): 13.75 | Base X (in.): 25.5 | Base Y (in.): 20.13 | Approx. Weight (lbs.): 109

Features

• 230V AC, 1/2 HP explosion-proof reversible AC-rectified motor with chain & sprocket drive connects directly to 230V single-phase circuits in classified hazardous locations without voltage conversion equipment
• Reversible AC-rectified motor operation AC supply internally converted to DC for motor windings, enabling powered hose pay-out and retraction across the full 200-foot drum capacity from a single 230V circuit and control switch
• 200-foot maximum capacity the longest single-drum reach in the 1175 Series, covering large bays, extended piping corridors, wide offshore decks, and large classified-area installations from a single fixed reel station
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet rated to 250°F with broad chemical resistance suited to petroleum, solvent, and process chemical environments
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap across all 200 feet of drum capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, ceiling, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation under the full weight of a loaded 200-foot drum
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• International petrochemical & refinery installations large classified-area facilities outside North America running 230V single-phase AC distribution where 200 feet of reach is required and 115V-rated reels are not compatible with the available circuit
• Offshore platforms & marine classified zones vessels and production platforms with 230V AC ship's service power operating in classified areas, where a single deck-mount reel must supply tools or fluid across large open areas
• Large chemical & solvent processing plants classified zones in facilities with 230V AC infrastructure where the combination of hazardous-area motor rating and 200-foot hose reach eliminates the need for multiple shorter-reach reel stations
• Oil & gas production & processing facilities wellhead areas, compressor stations, and processing plants with 230V classified-area electrical distribution where maximum reach from a fixed overhead installation covers widely spaced equipment
• Heavy industrial MRO in large 230V classified bays refineries, paper mills, and large process facilities where 230V facility distribution and classified-area requirements both apply, and a single 200-foot reel station serves the full bay width

FAQs

Q: What is the difference between the 200-foot -EJ and the 200-foot -EA?
A: The -EA and -EJ are functionally identical both are 1/2 HP explosion-proof reversible AC-rectified motors on the 200-foot 1175 Series drum with AFLAS seals and chain and sprocket drive. The only difference is supply voltage: the -EA runs on 115V AC (standard North American shop circuits) and the -EJ runs on 230V AC. Choose the -EJ when the installation circuit is 230V single-phase and installing a step-down transformer to run a 115V motor is not practical or desired.

Q: When should I choose the 200-foot -EJ over the 135-foot -EJ?
A: The motor, pressure rating, swivel construction, and explosion-proof certification are identical between the two lengths the choice is purely about reach and physical size. Choose the 200-foot model when the installation requires more than 135 feet of hose from a single fixed point. Note that the 200-foot drum is taller (26.13 inches versus 22.875 inches) and deeper (24 inches versus 20 inches); confirm ceiling clearance, wall depth, and structural load capacity before ordering.

Q: Is the 230V AC motor compatible with North American 240V single-phase service?
A: North American 240V single-phase service is nominally compatible with a 230V-rated motor within typical industrial motor voltage tolerance bands (generally ±10% of nameplate). However, in a classified hazardous location the installation must comply fully with NEC Article 501 or 502 (or the applicable international standard) for all circuit components not just the motor. Confirm compatibility and full circuit compliance with a licensed electrician experienced in hazardous location wiring before installation.

Q: What wiring and conduit requirements apply in a classified hazardous location?
A: The motor enclosure is explosion-proof rated, but a compliant installation requires that all conduit, wiring methods, junction boxes, and switching devices in the complete circuit also meet the applicable hazardous location standard NEC Article 501 or 502 for US installations, or IEC 60079 for ATEX-classified international sites. Verify that the specific NEC Class, Division, and Group rating of the motor matches the classification of your installation area before mounting. Coxreels does not publish these classification details in the catalog motor options table; contact Coxreels directly to confirm the motor's specific hazardous location rating.

Q: Does the reel come with hose included?
A: No the 1175-6-200-EJ ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 200 feet. Select hose rated for your working pressure, media, and temperature (up to 3,000 PSI and 250°F) and compatible with your specific process fluid. In chemical or petroleum environments, verify hose compound compatibility before installation.
