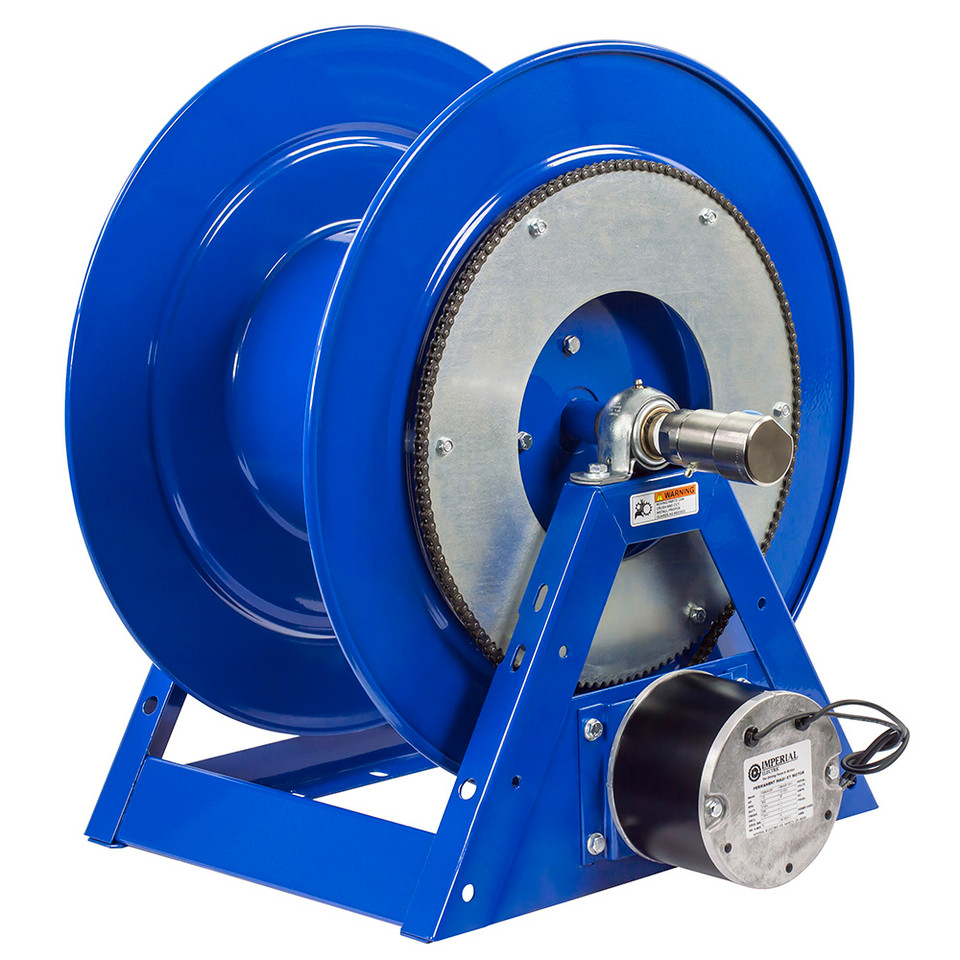

Coxreels 1175-6-200-EF Electric 24V DC Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

Large commercial vehicles, municipal equipment, and heavy construction machinery running 24-volt DC electrical systems sometimes need more than 135 feet of hose reach a long service body, a wide equipment yard, or a facility bay that a shorter drum simply can't cover from a single mount point. The Coxreels 1175-6-200-EF puts the maximum-capacity 1175 Series drum together with a 24V DC, 1/3 HP reversible motor (a non-explosion-proof electric rewind drive with powered operation in both pay-out and retraction directions, drawing from a standard 24V vehicle or equipment battery system) to deliver automatic hose management across a full 200 feet of 1-inch ID hose at 3,000 PSI no AC outlet, no compressed air supply, no classified-area rating required. The reversible motor gives operators powered control over hose deployment as well as retrieval, useful when friction across a long service body run or through a vehicle bulkhead makes manual pull-out impractical. AFLAS swivel seals, a nickel-plated steel 90° NPT swivel, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and the all-welded 12-gauge steel A-frame deliver the construction depth the maximum-capacity drum demands in daily production use.

Type: Electric Motor Rewind Hose Reel | Series: 1175 | Motor Type: 24V DC, 1/3 HP, Non-Explosion Proof, Reversible | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 200 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 26.13 | Length (in.): 24 | Mounting Pattern M (in.): 23.31 | Mounting Pattern N (in.): 13.75 | Base X (in.): 25.5 | Base Y (in.): 20.13 | Approx. Weight (lbs.): 96

Features

• 24V DC, 1/3 HP non-explosion-proof reversible motor with chain & sprocket drive connects directly to 24V vehicle or equipment battery systems; no AC outlet or compressed air supply required at the reel
• Reversible motor operation powered control in both directions for motorized hose pay-out and retraction across the full 200-foot drum capacity, enabling remote deployment and retrieval from a cab or service body switch
• 200-foot maximum capacity the longest single-drum reach in the 1175 Series, covering extended service bays, large equipment yards, and long vehicle service bodies from a single fixed-mount reel station
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet rated to 250°F with broad chemical resistance; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap across all 200 feet of drum capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation under the full weight of a loaded 200-foot drum
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• Extended-body commercial & municipal service vehicles long-wheelbase trucks, tanker bodies, and extended service units on 24V systems where 135 feet of hose reach falls short of covering the full vehicle length plus working distance
• Large construction equipment service trucks heavy-duty field service vehicles with 24V systems servicing excavators, graders, and large off-highway equipment across wide job sites where maximum reach from a single reel point is needed
• Agricultural & irrigation equipment large tractors, self-propelled sprayers, and agricultural service units on 24V systems where 200 feet of reach covers wide field service areas or large equipment sheds from a single overhead mount
• Airport ground support & tarmac service equipment 24V ground support vehicles and tarmac service units where wide aircraft service areas require maximum hose reach for fluid delivery or pneumatic tool supply
• Fixed plant & facility installations with 24V DC infrastructure large-bay maintenance shops, bus depots, and fleet facilities running 24V DC control systems where 200 feet of reach from a single ceiling- or wall-mount reel eliminates the need for multiple shorter-reach stations

FAQs

Q: When should I choose the 200-foot -EF over the 135-foot -EF?
A: The motor, pressure rating, swivel, and frame construction are identical between the two the difference is purely drum capacity and physical size. Choose the 200-foot model when the installation requires more than 135 feet of reach: a longer service body, a wider bay, or an installation where a single reel must cover the full work area without a hose extension. Note that the 200-foot drum is taller (26.13 inches versus 22.875 inches) and deeper (24 inches versus 20 inches) than the 135-foot model confirm ceiling clearance and mounting depth before ordering.

Q: What is the difference between the 200-foot -EF and the 200-foot -EB?
A: Both are 24V DC reversible motors at the same 200-foot capacity, but the -EB is 1/2 HP and explosion-proof required for classified hazardous locations where flammable gases, vapors, or combustible dusts may be present. The -EF is 1/3 HP and non-explosion-proof suited to standard service environments where no classified-area rating is needed. If the installation area is not a classified hazardous location, the -EF covers the application; if it is classified, the -EB is required.

Q: Does the reversible motor add significant current draw compared to a single-direction motor?
A: Reversible operation requires a control switch or relay that routes current in either direction through the motor, but the motor itself draws current based on load not direction. The main current consideration on the 200-foot drum is startup inertia: a fully loaded 200-foot drum carries more mass than shorter models, and the initial current surge at motor start may be higher. Coxreels does not publish exact amperage figures for this motor; confirm circuit fusing and wiring gauge with a qualified electrician sized for sustained bidirectional operation on the maximum drum load.

Q: Does the reel come with hose included?
A: No the 1175-6-200-EF ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 200 feet. Select hose rated for your working pressure, media, and temperature (up to 3,000 PSI and 250°F) and install it on the drum before use.

Q: Can this reel be mounted overhead on a ceiling in a large shop or facility?
A: Yes the A-frame mounting pattern supports wall, ceiling, and overhead installation. Before mounting, confirm that the structure can support the approximately 96-pound reel weight without hose, plus the weight of up to 200 feet of loaded 1-inch hose, plus any dynamic load from motor operation. The mounting bolt pattern is 23.31 inches × 13.75 inches; verify this against your structural attachment points and consult a structural engineer or qualified installer for overhead installations carrying significant combined weight.
