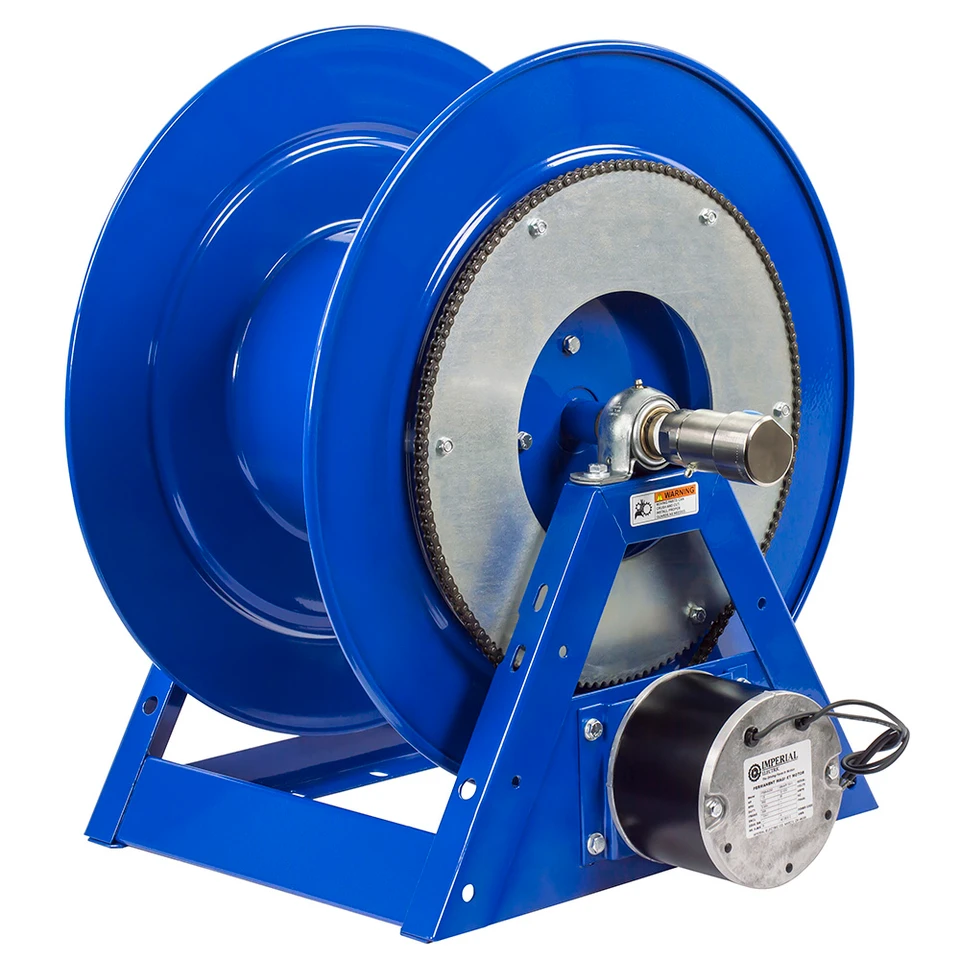

Coxreels 1175-6-200-AB Compressed Air Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

When a single overhead reel needs to reach across a long bay, a large service pit, or an extended production floor without a hose junction in the middle, 200 feet of 1-inch ID hose at 3,000 PSI is the spec that covers the run and the Coxreels 1175-6-200-AB is built to handle that full load automatically. It pairs the maximum-capacity 1175 Series drum with a cast iron 6-vane compressed air motor (a heavier-duty motor construction than the aluminum 4-vane version, with six vanes for smoother torque delivery and a cast iron body suited to the higher cycle loads that come with retracting a fully loaded 200-foot drum) and chain and sprocket drive, delivering push-button retraction from the same shop air supply that runs the tools. AFLAS swivel seals on the nickel-plated 90° NPT swivel inlet handle heat and chemical exposure up to 250°F, while the all-welded 12-gauge steel A-frame, CNC-spun ribbed discs, and permanently lubricated pillow block bearings give the largest drum in the 1175 Series the construction depth to cycle reliably over years of production use. For plant floors, large vehicle service facilities, and high-bay industrial maintenance where 135 feet isn't enough, the 1175-6-200-AB covers the distance in a single fixed-mount reel station.

Type: Compressed Air Motor Rewind Hose Reel | Series: 1175 | Motor Type: Cast Iron 6-Vane Compressed Air Motor | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 200 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 26.13 | Length (in.): 24 | Mounting Pattern M (in.): 23.31 | Mounting Pattern N (in.): 13.75 | Base X (in.): 25.5 | Base Y (in.): 20.13 | Approx. Weight (lbs.): 91

Features

• Cast iron 6-vane compressed air motor with chain & sprocket drive heavier motor construction matched to the maximum-capacity 200-foot drum for sustained cycling under full hose load
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet rated to 250°F with broad chemical resistance; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap across all 200 feet of drum capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, ceiling, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation under the increased weight of a fully loaded 200-foot drum
• Adjustable tension brake prevents free-wheeling during hose deployment, giving controlled pay-out at any extension length across the full 200-foot capacity
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• Large-bay plant & industrial maintenance single overhead reel stations serving long production lines, wide fabrication bays, or large equipment pads where 100 150 foot reels fall short of the required reach
• High-bay vehicle service facilities heavy truck shops, bus maintenance facilities, and fleet service centers with deep service lanes or extended pit areas where a single reel must supply tools across the full length of the work area
• Mining & heavy equipment service large underground or surface maintenance shops where equipment dimensions and bay depth require maximum hose reach from a permanently mounted overhead reel
• Manufacturing & assembly line MRO facilities where keeping hose off the floor across a long production floor is a safety priority and a single 200-foot station replaces multiple shorter-reach reels
• Agricultural & rural facilities large equipment sheds, grain facilities, and farm workshops where extended reach from a single wall or ceiling-mount point covers the full width of the structure

FAQs

Q: What air supply does the cast iron 6-vane motor need to retract a fully loaded 200-foot drum?
A: The compressed air motor uses your existing shop air supply (typically 90 120 PSI) delivered through a separate small-diameter air line to the motor independent of the 1-inch hose flow path through the drum. Coxreels does not publish a specific CFM draw for the retraction motor. On a fully loaded 200-foot drum, the motor carries a heavier load than on shorter-capacity reels, so confirm your compressed air system can supply both the motor and connected tools simultaneously before installation.

Q: What is the difference between the "-AB" (cast iron 6-vane) and the "-A" (aluminum 4-vane) motor on the 200-foot drum?
A: Both use your shop air supply for retraction, but the cast iron 6-vane motor delivers smoother torque through more vanes and carries a heavier-duty motor body suited to the sustained cycling loads of the maximum-capacity 200-foot drum. On shorter drums the aluminum 4-vane motor is adequate for most applications; on the 200-foot drum, where the full hose weight at retraction is at its greatest, the cast iron 6-vane construction is the more durable choice for high-cycle installations.

Q: How does the physical size of the 200-foot model compare to the 135-foot models?
A: The 200-foot drum is meaningfully larger than the 135-foot variants. Width is the same at 34.5 inches, but height increases to 26.13 inches (versus 22.875 inches on the 135-foot models) and depth increases to 24 inches (versus 20 inches). Plan accordingly when laying out mounting structure, ceiling clearance, and hose routing the additional drum width to accommodate 200 feet of 1-inch hose makes this a larger installation footprint in the height and depth dimensions.

Q: Does the reel come with hose included?
A: No the 1175-6-200-AB ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 200 feet. Select hose rated for your working pressure, media, and temperature (up to 3,000 PSI and 250°F) and install it on the drum before use.

Q: Is 200 feet the maximum capacity for this drum, or can it be loaded with less hose?
A: 200 feet is the maximum capacity for 1-inch ID / 1-7/16-inch OD hose on this drum. You can install a shorter length if your application requires less reach the drum will function normally with any length up to the maximum. Installing more than the rated capacity would overload the drum and is not recommended.
