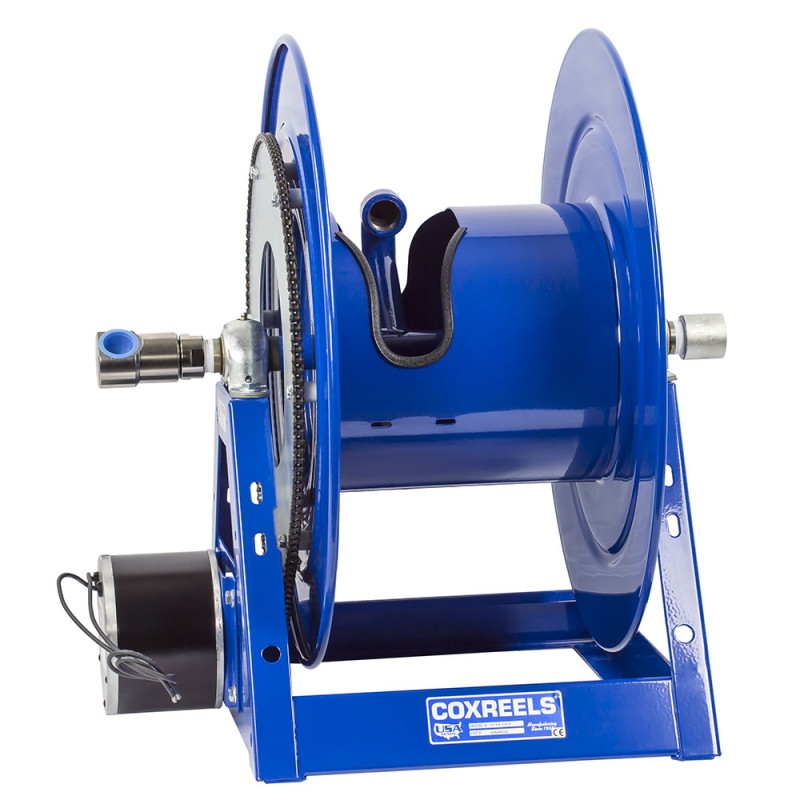

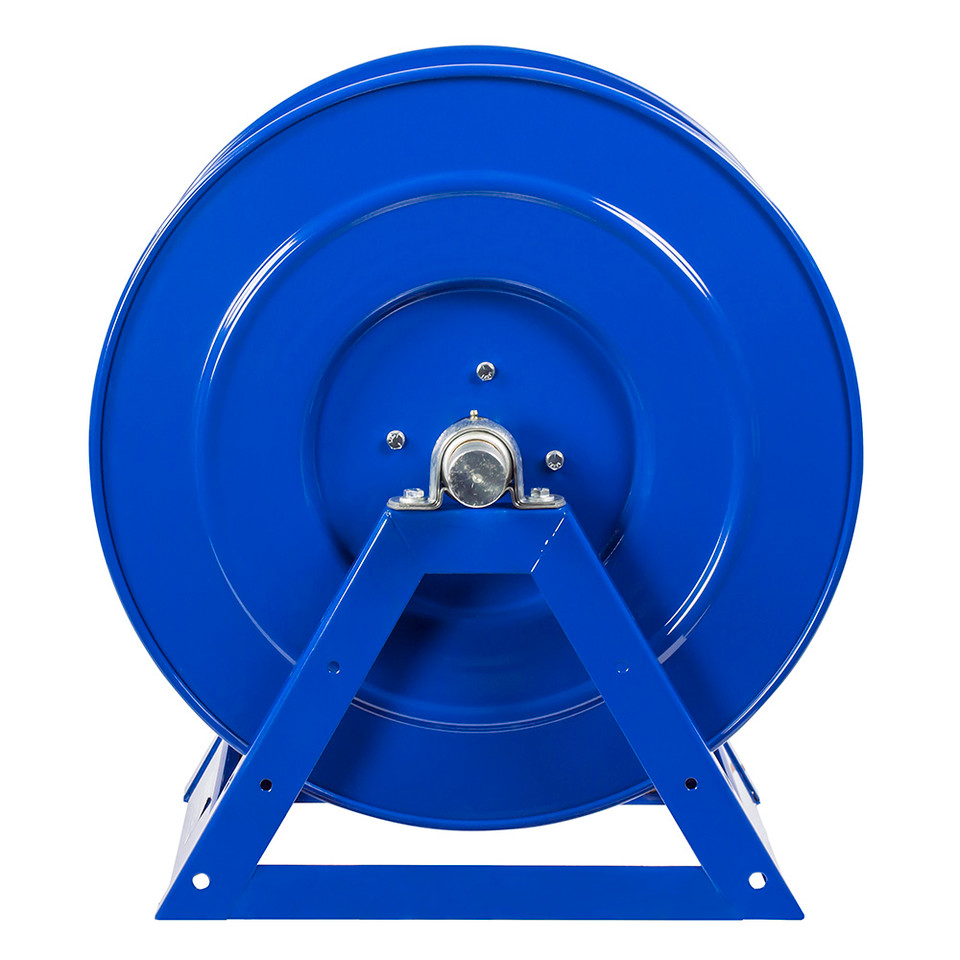

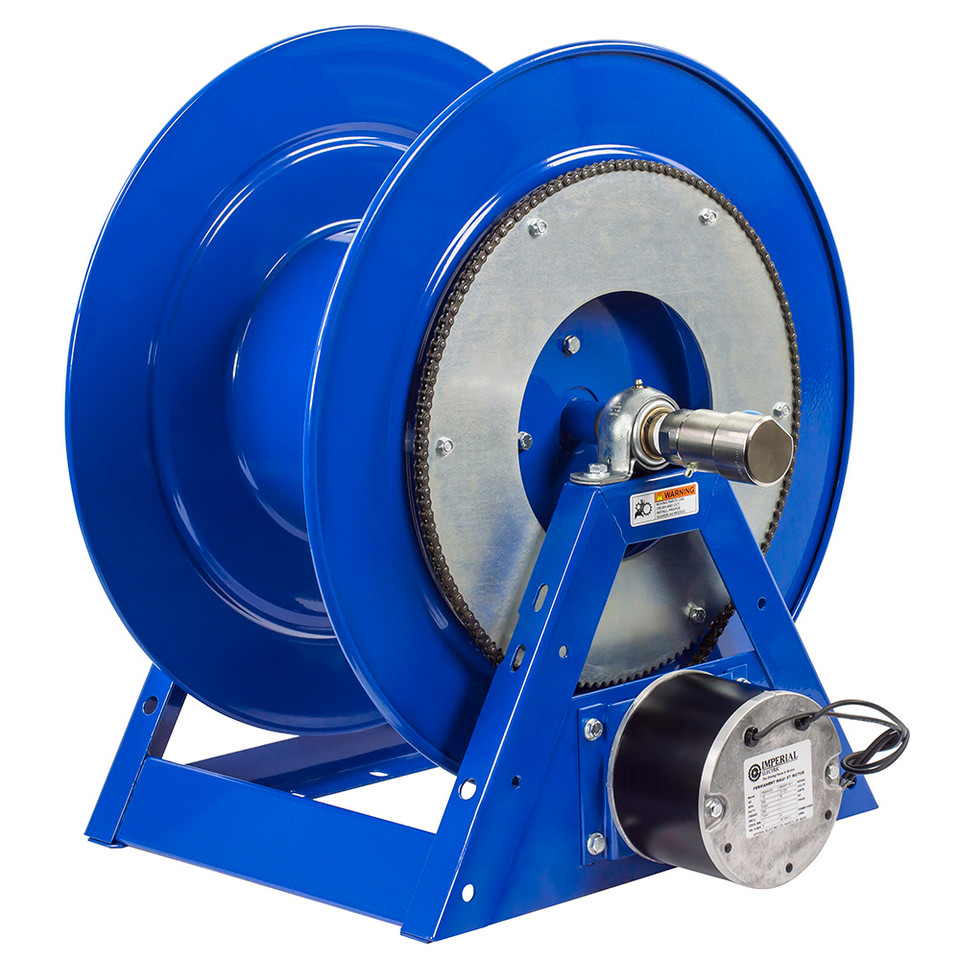

Coxreels 1175-6-200-EB Electric 24V DC Explosion Proof Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

Some installations stack three constraints at once: the platform runs 24-volt DC, the location is classified as hazardous, and the reach requirement exceeds what a 135-foot drum can cover. The Coxreels 1175-6-200-EB is built for exactly that intersection a 24V DC, 1/2 HP explosion-proof reversible motor (a full-output DC drive rated for classified hazardous locations where flammable gases, vapors, or combustible dusts may be present, capable of powered operation in both pay-out and retraction directions, and drawing from a 24V vehicle or equipment battery system) on the maximum-capacity 1175 Series drum, handling 200 feet of 1-inch ID hose at 3,000 PSI without an AC outlet or compressed air supply at the reel. At 200 feet, this is the longest single-drum reach in the 1175 Series suited to large classified-area installations, extended service bays on hazardous-duty vehicles, and fixed plant stations in refineries or chemical facilities where 135 feet falls short and the 24V DC electrical infrastructure is already in place. AFLAS swivel seals, nickel-plated steel 90° NPT swivel, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and the all-welded 12-gauge steel A-frame complete a reel built to operate in the field environments that demand the most from every component.

Type: Electric Motor Rewind Hose Reel | Series: 1175 | Motor Type: 24V DC, 1/2 HP, Explosion Proof, Reversible | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 200 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 26.13 | Length (in.): 24 | Mounting Pattern M (in.): 23.31 | Mounting Pattern N (in.): 13.75 | Base X (in.): 25.5 | Base Y (in.): 20.13 | Approx. Weight (lbs.): 109

Features

• 24V DC, 1/2 HP explosion-proof reversible motor with chain & sprocket drive rated for classified hazardous locations; connects directly to 24V vehicle or equipment battery systems with no AC outlet or air supply required at the reel
• Reversible motor operation powered control in both directions for motorized hose pay-out and retraction across the full 200-foot drum capacity, enabling remote deployment control from a cab or service body switch
• 200-foot maximum capacity the longest single-drum reach in the 1175 Series, covering large bays, extended service lanes, and wide classified-area installations from a single fixed-mount reel station
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet rated to 250°F with broad chemical resistance suited to petroleum, solvent, and chemical service environments
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap across all 200 feet of drum capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, ceiling, or vehicle-body installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation under the full weight of a loaded 200-foot drum
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• Large hazardous-area fixed plant installations classified zones in refineries, chemical plants, and petrochemical facilities running 24V DC control infrastructure where a single reel must span large bays or extended piping corridors
• Fuel delivery & petroleum service trucks with extended reach requirements 24V service vehicles where the standard 135-foot drum falls short of the required hose run and the classified-area rating remains mandatory
• Oil & gas production & compressor station service classified wellhead and processing areas with 24V DC electrical infrastructure where 200 feet of reach covers widely spaced equipment and eliminates the need for hose extensions or junction points
• Underground mining operations large underground maintenance bays and haul roads where 24V DC diesel-electric equipment operates in methane-classified atmospheres and extended hose reach is required for fluid or air delivery
• Marine & offshore classified installations vessels and platforms with 24V DC hotel or service circuits operating in classified zones, where 200 feet of reach covers large deck areas from a single fixed reel point

FAQs

Q: Why choose the 200-foot model over the 135-foot -EB when both are 24V DC explosion-proof?
A: The only functional difference between the 1175-6-135-EB and the 1175-6-200-EB is drum capacity and physical size. If your installation requires more than 135 feet of reach wide plant bays, long service lanes, large classified-area facilities the 200-foot model closes that gap from a single fixed reel station rather than requiring a hose extension or a second reel. The motor, pressure rating, swivel, and frame construction are identical. Note that the 200-foot drum is taller (26.13 inches versus 22.875 inches) and deeper (24 inches versus 20 inches) confirm ceiling clearance and mounting depth before ordering.

Q: What electrical connection does the 24V DC explosion-proof motor require?
A: The motor connects to a 24V DC power source typically a vehicle battery system, auxiliary battery, or DC power supply. In classified hazardous locations, all wiring methods, conduit, junction boxes, and control switches in the circuit must meet NEC Article 501 or 502 requirements (or the applicable international standard) for the site's Class, Division, and Group. Coxreels does not publish the exact amperage draw for this motor confirm current requirements and circuit sizing with a licensed electrician experienced in hazardous location wiring. On a fully loaded 200-foot drum, the motor carries greater inertial load at startup than on shorter-capacity reels; factor this into circuit fusing.

Q: Does the reel come with hose included?
A: No the 1175-6-200-EB ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 200 feet. Select hose rated for your working pressure, media, and temperature (up to 3,000 PSI and 250°F) and compatible with your specific fluid before installation. In petroleum or chemical service, verify hose compound compatibility with your media.

Q: How does the physical footprint of the 200-foot drum compare to other 1175 Series reels in this series?
A: The 200-foot drum is the largest in the 1175 Series. Width is 34.5 inches the same as the 135-foot motorized variants but height increases to 26.13 inches and depth to 24 inches, compared to 22.875 inches tall and 20 inches deep on the 135-foot drum. Allow additional ceiling clearance and wall depth when planning the mounting structure, and verify the mounting bolt pattern (23.31 inches × 13.75 inches) against your structural attachment points before installation.

Q: Is this reel suitable for a fixed overhead installation in a classified plant, or only for mobile vehicle mounting?
A: Both. The A-frame mounting pattern supports wall, ceiling, and overhead installation for fixed plant use, as well as vehicle-body mounting for mobile applications. The explosion-proof motor rating and AFLAS seals make it appropriate for classified hazardous locations in either configuration. Confirm that the mounting structure can support the approximately 109-pound reel weight (without hose) plus the loaded hose weight before installation.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
