Coxreels TSHL-N-550-DF-BBX DEF Supreme Duty Spring Rewind Hose Reel | DEF-T Series | 3/4" Hose Diameter | 50' Hose Length | 300 Max PSI | Less Hose

Built for Diesel Exhaust Fluid dispensing in fleet maintenance shops, DEF storage areas, equipment yards, and mobile service layouts, the Coxreels TSHL-N-550-DF-BBX DEF Supreme Duty Spring Rewind Hose Reel provides a reel-only platform for installing compatible DEF hose separately. This DEF-T Series reel is configured less hose, with capacity for 3/4" I.D. hose up to 50 ft and a 300 PSI maximum pressure rating, giving technicians longer working reach around trucks, tanks, and dispensing stations without purchasing a pre-hosed reel.

Diesel Exhaust Fluid (DEF) is a high-purity urea solution used in selective catalytic reduction systems, so fluid-path compatibility is an important selection factor. The TSHL-N-550-DF-BBX uses a non-corrosive stainless steel 90° full-flow NPT swivel and Viton seals for DEF dispensing applications. Its Supreme Duty dual pedestal T Series frame, Super Hub triple axle support system, and adjustable guide arm support stable hose payout and rewind in shop, wall, floor, vehicle, and overhead mounting layouts.

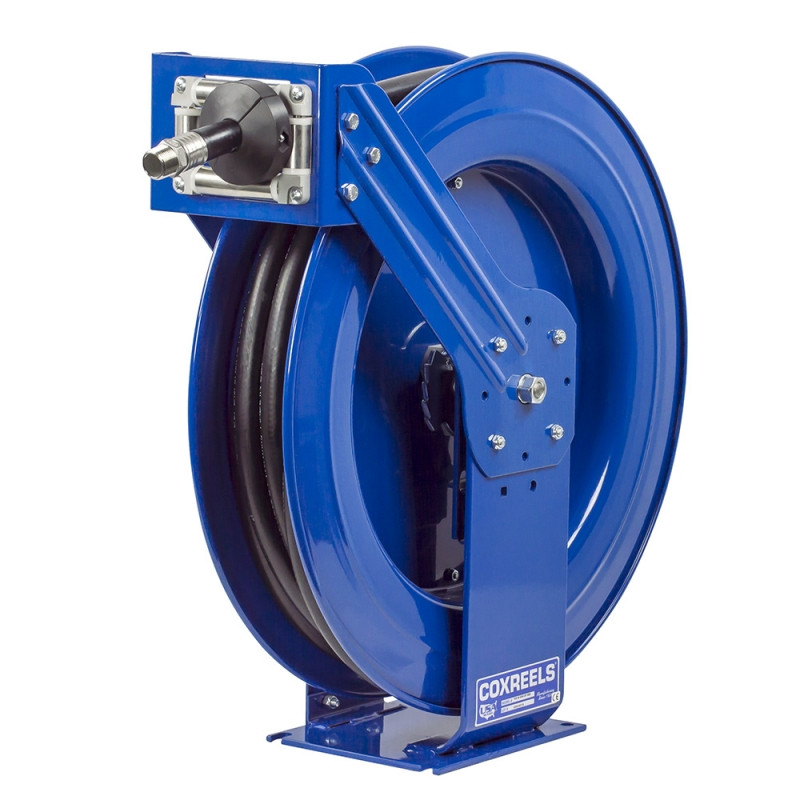

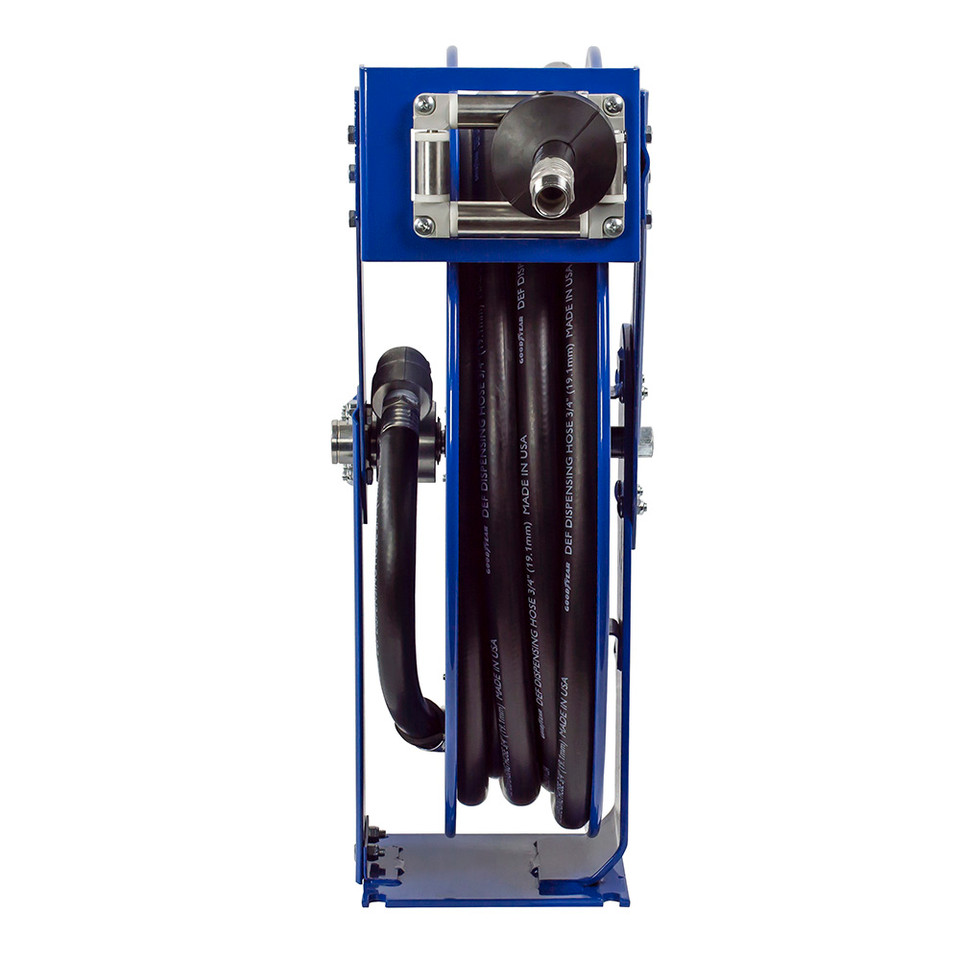

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: DEF Spring Rewind Hose Reel | Series: DEF-T Series | Model: TSHL-N-550-DF-BBX | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Hose Included: No | Swivel: Non-corrosive stainless steel 90° full-flow NPT swivel | Swivel Seals: Viton

Features:

• DEF-ready reel construction with non-corrosive stainless steel 90° full-flow NPT swivel for Diesel Exhaust Fluid dispensing applications.
• Viton swivel seals provide chemical resistance for DEF service.
• Less hose configuration allows the buyer to install a compatible 3/4" I.D. DEF hose selected for the dispensing system.
• Supreme Duty dual pedestal T Series frame supports higher-stability reel mounting in shop and mobile service environments.
• Super Hub triple axle support system increases structural support and helps reduce vibration during reel operation.
• Adjustable guide arm supports multiple mounting positions, including wall, floor, vehicle, and overhead installations.
• Enclosed factory-tuned cartridge-style spring motor supports controlled rewind and simplified spring service.
• Multi-position lock ratchet mechanism holds the hose at the desired working length during dispensing.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance shops dispensing DEF for diesel trucks, buses, vans, and municipal service vehicles.
• Mobile service trucks and lube skids where the dual pedestal frame helps support repeated field-use hose handling.
• Bulk DEF storage and transfer systems requiring a reel-only setup with separately specified compatible hose.
• Construction and equipment yards servicing diesel-powered machinery, work trucks, and off-road equipment.
• Utility, public works, and transportation maintenance facilities managing DEF fill operations across multiple assets.

FAQs:

• Q: What does less hose mean on the TSHL-N-550-DF-BBX?
  A: It means this reel is supplied without hose installed. The buyer must provide compatible DEF hose separately and should not exceed the listed 3/4" I.D. and 50 ft hose capacity.
• Q: Is this reel suitable for Diesel Exhaust Fluid?
  A: Yes. This DEF-T Series reel uses a stainless steel 90° full-flow NPT swivel and Viton seals for DEF dispensing applications.
• Q: How is the DEF-T Series different from a single pedestal DEF reel?
  A: The DEF-T Series uses a Supreme Duty dual pedestal frame with a Super Hub triple axle support system. That configuration is suited to installations where added frame support and stable hose handling are important.
• Q: Does the 50 ft hose length mean hose is included?
  A: No. On this less hose model, 50 ft refers to the reel's hose capacity. Hose is not included with the TSHL-N-550-DF-BBX.
• Q: Can the guide arm be repositioned for different mounting layouts?
  A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions when the reel is installed on a properly supported surface.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
