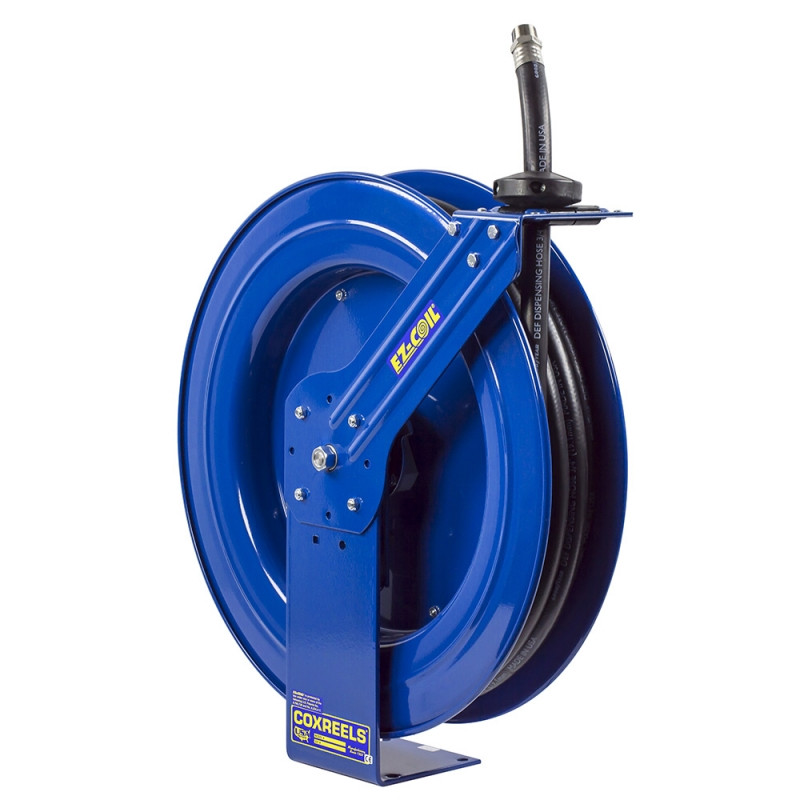

Coxreels EZ-SH-525-DF-BBX DEF Heavy Duty Spring Rewind Hose Reel | EZ-T-DEF Series | 3/4" Hose Diameter | 25' Hose Length | 300 Max PSI

Built for controlled Diesel Exhaust Fluid (DEF) dispensing in fleet shops, service trucks, and stationary fluid stations, the Coxreels EZ-SH-525-DF-BBX EZ-Coil spring rewind hose reel provides a ready-to-use DEF handling setup with 3/4" hose I.D., 25 ft hose length, and a 300 PSI maximum pressure rating. DEF, or Diesel Exhaust Fluid, requires compatible wetted components to help protect fluid integrity, and this reel is equipped with a stainless steel external full-flow swivel and Viton seals for DEF dispensing service.

The EZ-SH-525-DF-BBX is part of Coxreels' EZ-SH-DEF reel family, combining a heavy-duty single pedestal frame with the EZ-Coil safety system, which retracts hose more slowly than conventional spring reels for improved control during rewind. Its Super Hub's dual axle support system helps stabilize the reel during operation, while the multi-position guide arm allows installation on wall, floor, ceiling, overhead, or vehicle-mounted layouts.

Type: EZ-Coil Spring Rewind DEF Hose Reel | Series: EZ-SH-DEF Series | Model: EZ-SH-525-DF-BBX | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 25 ft | Hose Included: Yes | Max Pressure: 300 PSI | Swivel: Stainless steel 90° full-flow NPT | Swivel Seals: Viton | Ship Weight: 57 lb | Overall Dimensions: 9.38" W x 25.5" H x 19.5" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

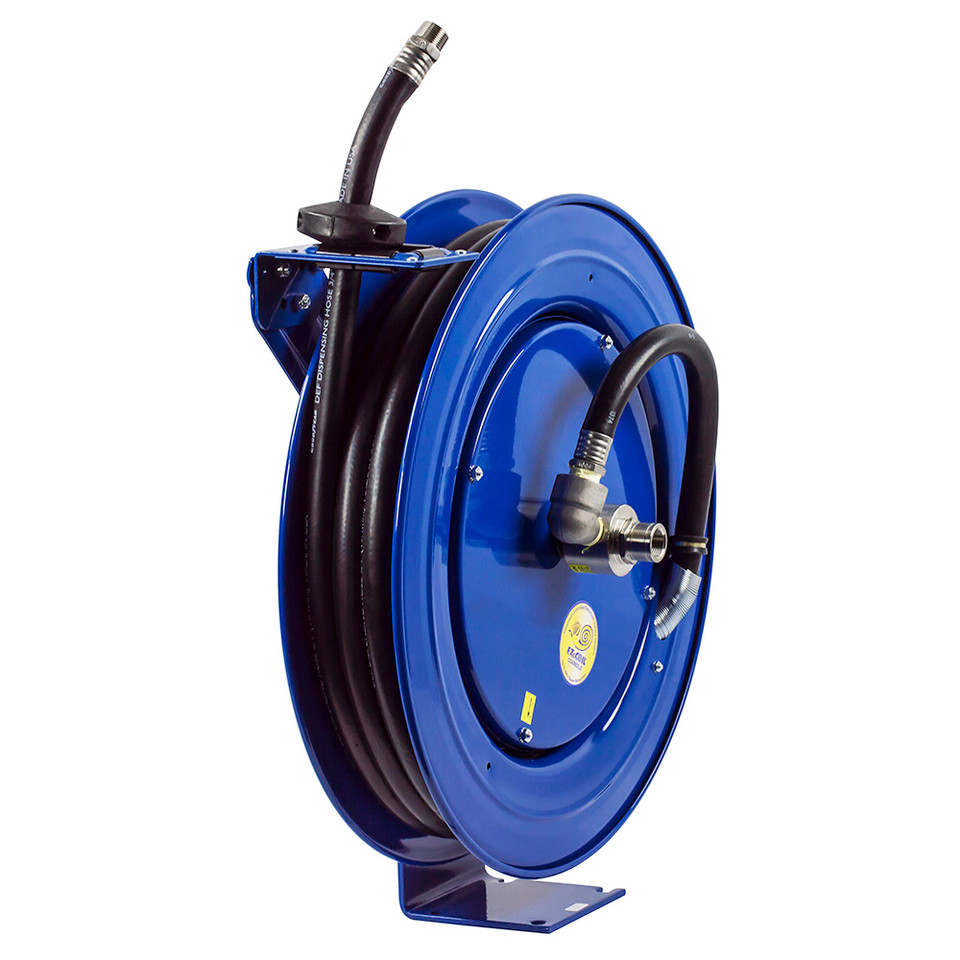

• Stainless steel external full-flow swivel supports Diesel Exhaust Fluid dispensing and is positioned for easier access during seal maintenance and hose installation.
• Viton swivel seals provide chemical resistance for DEF dispensing service.
• EZ-Coil safety system uses an enclosed cartridge-style spring motor to retract the hose up to 80% slower than conventional reels.
• Super Hub dual axle support system increases reel stability and helps reduce vibration during operation.
• Solid one-piece heavy gauge 1/4" steel base and support post provide a stable single pedestal mounting structure.
• CNC spun and ribbed discs with rolled edges help protect the hose and improve strength around the reel drum.
• Multi-position guide arm adjusts for wall, floor, ceiling, overhead, and vehicle mounting positions.
• Additional construction details include a chip-resistant CPC powder coat finish, adjustable solid rubber hose stop, non-corrosive stainless steel spring and pawl, zinc-plated ratchet, and permanently lubricated precision bearings.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance shops - dispensing DEF for diesel trucks, vans, buses, and service vehicles while keeping hose off the floor between uses.
• Mobile lube and service trucks - mounting the reel on vehicles where controlled hose payout and rewind help organize DEF service equipment.
• DEF storage and dispensing stations - connecting hose management to bulk DEF tanks or dispensing systems within the reel's pressure and compatibility limits.
• Municipal and utility garages - supporting diesel equipment service for public works, utility fleets, refuse trucks, and off-road support vehicles.
• Repair facilities and mixed-use garages - providing a cleaner hose storage solution for shops that service diesel vehicles and equipment.

FAQs:

• Q: Does the EZ-SH-525-DF-BBX include hose?
  A: Yes. This model is listed with hose included and is configured with 25 ft of 3/4" I.D. hose for DEF dispensing service.
• Q: What does DEF mean?
  A: DEF stands for Diesel Exhaust Fluid, a fluid used in modern diesel exhaust aftertreatment systems. Because DEF can be sensitive to contamination and material compatibility, the reel uses DEF-focused components such as a stainless steel swivel and Viton seals.
• Q: What is the benefit of the EZ-Coil system?
  A: EZ-Coil slows hose retraction compared with conventional spring rewind reels. This gives the user more control during rewind and helps reduce the snap-back effect common with standard spring reels.
• Q: Can this reel be mounted on a service truck?
  A: Yes. Coxreels lists the guide arm as adjustable for wall, floor, ceiling, vehicle, and overhead mounting positions. Always confirm available mounting space using the 9.38" W x 25.5" H x 19.5" L overall dimensions and mounting pattern before installation.
• Q: Is this reel for gasoline or diesel fuel transfer?
  A: This specific model is for DEF dispensing applications. Do not use it for fuels or other fluids unless the manufacturer confirms compatibility with the hose, seals, swivel, and pressure requirements.
