Coxreels TSHL-N-535-DF-BBX DEF Supreme Duty Spring Rewind Hose Reel | DEF-T Series | 3/4" Hose Diameter | 35' Hose Length | 300 Max PSI | Less Hose

Built for Diesel Exhaust Fluid dispensing in fleet maintenance shops, DEF storage areas, service trucks, and equipment yards, the Coxreels TSHL-N-535-DF-BBX DEF Supreme Duty Spring Rewind Hose Reel gives buyers a reel-only platform for installing compatible DEF hose separately. This DEF-T Series reel is configured less hose, with capacity for 3/4" I.D. hose up to 35 ft and a 300 PSI maximum pressure rating, making it a practical choice when the hose specification must be matched to an existing DEF dispensing system.

Diesel Exhaust Fluid (DEF) is a high-purity urea solution used in selective catalytic reduction systems, so wetted-path compatibility is an important buying consideration. The TSHL-N-535-DF-BBX uses a non-corrosive stainless steel 90° full-flow NPT swivel and Viton seals for DEF dispensing applications. Its Supreme Duty dual pedestal T Series frame, Super Hub triple axle support system, and adjustable guide arm help support stable hose payout and rewind in stationary shop installs or rugged mobile service layouts.

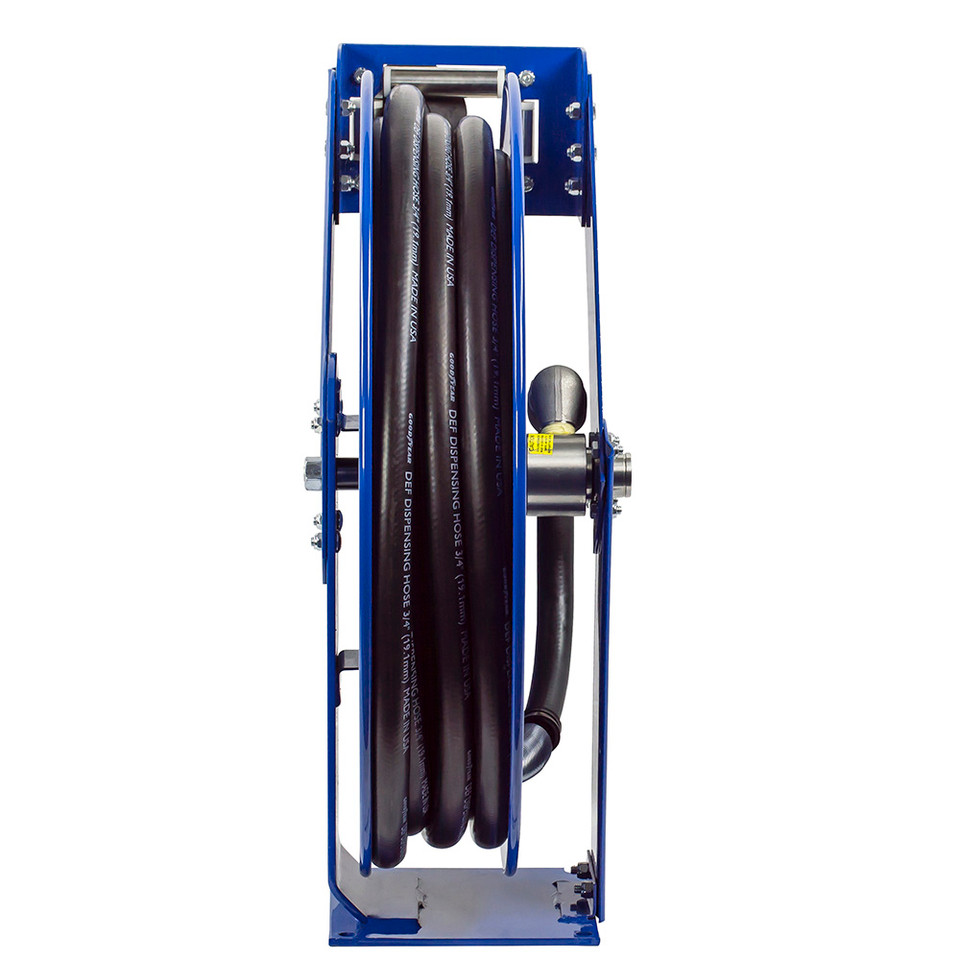

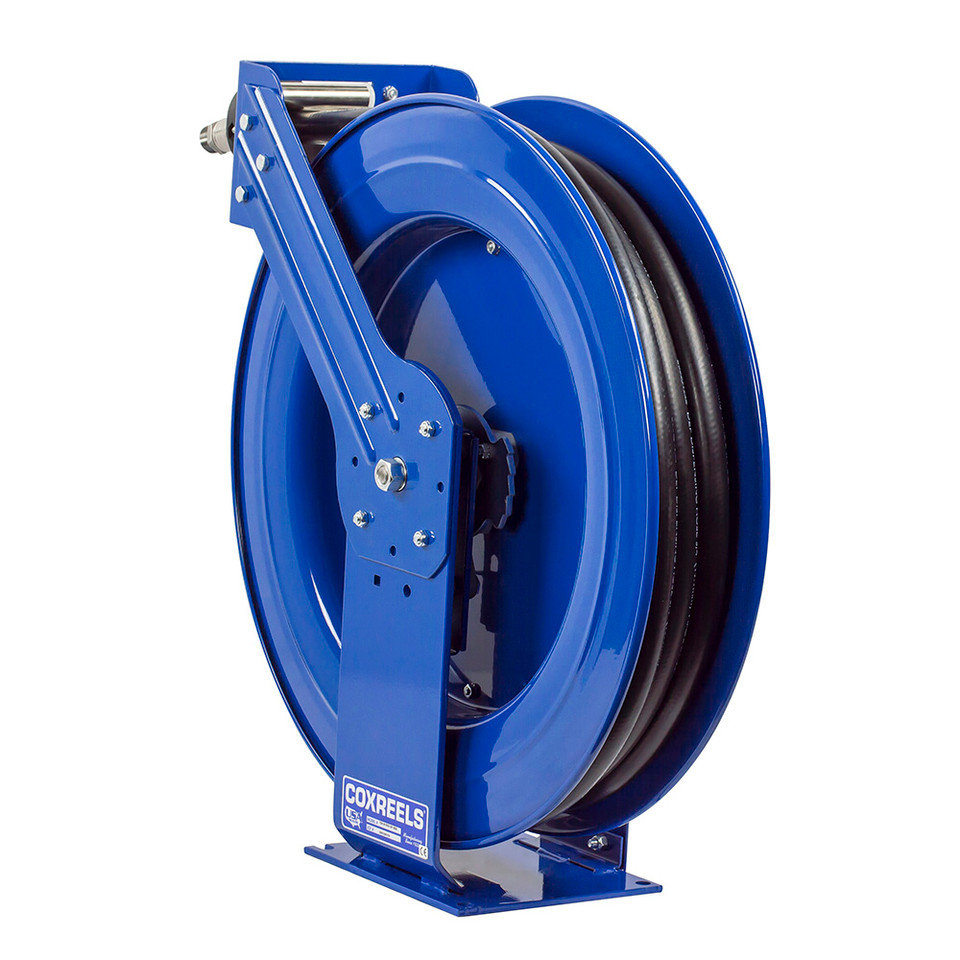

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: DEF Spring Rewind Hose Reel | Series: DEF-T Series | Model: TSHL-N-535-DF-BBX | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 35 ft | Max Pressure: 300 PSI | Hose Included: No | Swivel: Non-corrosive stainless steel 90° full-flow NPT swivel | Swivel Seals: Viton | Ship Weight: 67 lbs | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y

Features:

• DEF-ready reel construction with non-corrosive stainless steel 90° full-flow NPT swivel for Diesel Exhaust Fluid dispensing applications.
• Viton swivel seals support chemical resistance for DEF service.
• Less hose configuration allows the buyer to install a compatible 3/4" I.D. DEF hose selected for the dispensing system.
• Supreme Duty dual pedestal T Series frame supports demanding stationary and mobile hose reel installations.
• Super Hub triple axle support system increases stability and helps reduce vibration during reel operation.
• Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible mounting layouts.
• Enclosed factory-tuned cartridge-style spring motor supports controlled hose rewind and convenient spring maintenance.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during dispensing.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance shops dispensing DEF for diesel trucks, buses, vans, and municipal vehicles.
• Mobile service trucks and lube skids where the dual pedestal frame helps support field-use hose handling.
• DEF storage and dispensing systems requiring a reel-only setup with separately specified hose.
• Construction and equipment yards servicing diesel-powered off-road machinery and work trucks.
• Utility, transportation, and public works facilities managing repeated DEF fill operations across multiple assets.

FAQs:

• Q: What does less hose mean on the TSHL-N-535-DF-BBX?
  A: It means this reel is supplied without hose installed. The buyer must provide compatible hose separately and should not exceed the listed 3/4" I.D., 1-1/8" O.D., and 35 ft capacity.
• Q: Is this reel suitable for Diesel Exhaust Fluid?
  A: Yes. The DEF-T Series uses a stainless steel 90° full-flow NPT swivel and Viton seals for DEF dispensing applications.
• Q: How is the DEF-T Series different from the DEF-SH Series?
  A: The DEF-T Series uses a Supreme Duty dual pedestal frame with a Super Hub triple axle support system. The DEF-SH Series uses a single pedestal configuration, so the T Series is the better fit when the installation calls for additional frame support.
• Q: Does the 35 ft hose length mean hose is included?
  A: No. On this model, 35 ft refers to the reel's hose capacity. Hose is not included with the TSHL-N-535-DF-BBX.
• Q: Can the guide arm be repositioned for different mounting orientations?
  A: Yes. The adjustable guide arm can be set up for wall, floor, vehicle, and overhead mounting positions when the reel is installed on a properly supported surface.
