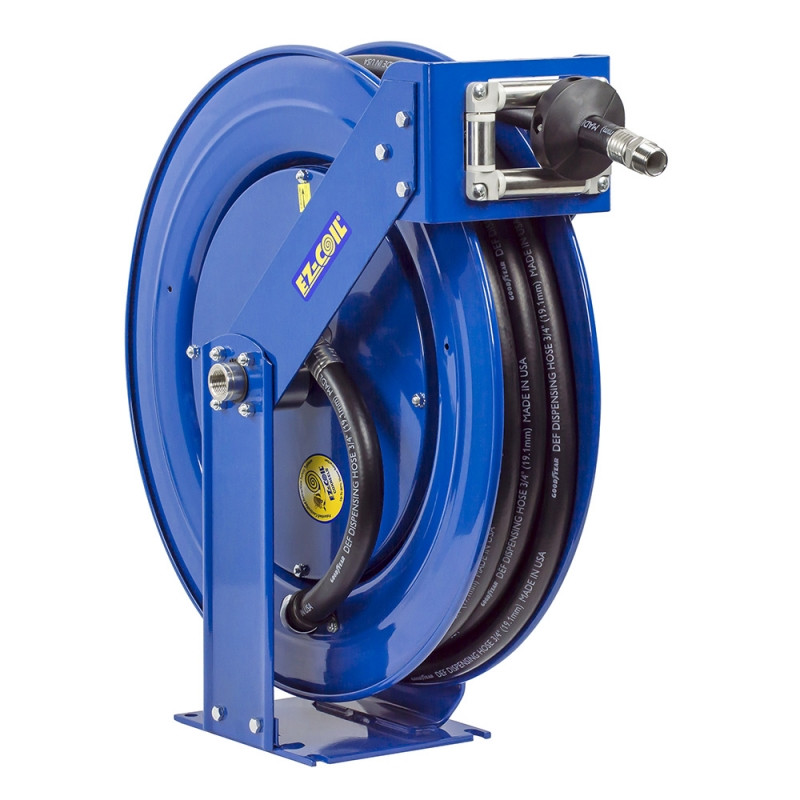

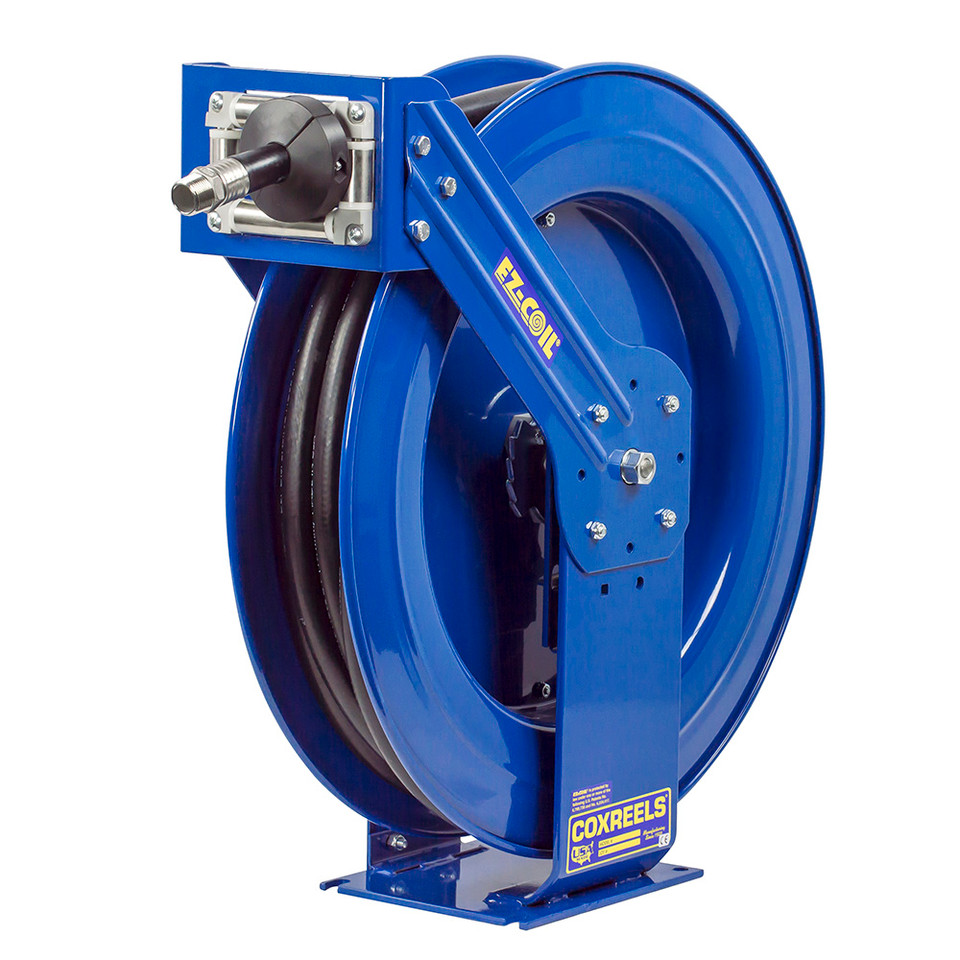

Coxreels EZ-TSH-550-DF-BBX DEF Supreme Duty Spring Rewind Hose Reel | EZ-T-DEF Series | 3/4" Hose Diameter | 50' Hose Length | 300 Max PSI

Built for Diesel Exhaust Fluid (DEF) dispensing in fleet shops, lube trucks, fueling islands, and mobile service equipment, the Coxreels EZ-TSH-550-DF-BBX gives buyers a controlled-rewind hose reel solution for cleaner hose storage and safer fluid handling. This EZ-T-DEF Series reel is supplied with a 3/4" I.D. x 50 ft DEF hose, giving operators practical reach around trucks, tanks, and equipment while keeping the hose off the floor when not in use. The 300 PSI pressure rating supports low-pressure DEF dispensing systems, while the stainless steel external full-flow swivel and Viton seals help protect fluid compatibility in DEF service.

The EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring reels, helping reduce hose whip during rewind. Its T Series supreme-duty configuration, Super Hub triple axle support system, and multi-position guide arm make this reel suitable for stationary mounting or rugged mobile applications where vibration, repeated hose pull-out, and compact mounting space are everyday concerns.

Type: DEF Spring Rewind Hose Reel | Series: EZ-T-DEF Series | Model: EZ-TSH-550-DF-BBX | Configuration: Hose Included | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 50 ft | Max Pressure: 300 PSI | Inlet: 3/4" FNPT | Outlet: 3/4" MNPT | Swivel: Stainless Steel 90° Full-Flow NPT | Seals: Viton | Hose Material: EPDM | Finish: CPC Powder Coat | Ship Weight: 91 lb | Dimensions: 9-3/8" W x 25-1/2" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y

Features:

• EZ-Coil controlled rewind system retracts the hose at a slower, more controlled speed than standard spring rewind reels.
• Stainless steel 90° full-flow NPT swivel supports Diesel Exhaust Fluid dispensing and provides accessible seal service.
• Viton swivel seals provide chemical resistance for DEF handling applications.
• Super Hub triple axle support system increases reel stability and helps reduce vibration during operation.
• Multi-position guide arm adjusts for wall, floor, vehicle, or overhead mounting layouts.
• Enclosed, factory tuned cartridge-style spring motor is removable for safe and convenient maintenance.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose during rewind.
• CPC powder coat finish helps resist chips and rust in shop, truck, and dispensing-system environments.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance shops - dispensing DEF for diesel trucks, vans, buses, and service vehicles while keeping hose runs organized.
• Fuel and lube trucks - mounting on mobile service units where vibration control and hose storage matter during daily routes.
• DEF storage and dispensing systems - transferring DEF from bulk tanks or packaged systems to equipment fill points.
• Truck stops and fueling islands - managing 50 ft of dispensing hose in fixed installations with controlled spring rewind.
• Marine, agricultural, and off-road equipment service - supporting DEF fill operations for diesel-powered equipment in service yards and field support setups.

FAQs:

• Q: Does the Coxreels EZ-TSH-550-DF-BBX include hose?
  A: Yes. This model is supplied with a 3/4" I.D. x 50 ft DEF hose installed. The related EZ-TSHL-550-BBX model is the less-hose version.
• Q: What does EZ-Coil mean on this DEF hose reel?
  A: EZ-Coil is Coxreels' controlled rewind safety system. It slows the rewind speed compared with a conventional spring reel, helping reduce hose whip and making hose return more controlled.
• Q: Can this reel be mounted on a service truck?
  A: Yes. The guide arm can be adjusted for wall, floor, vehicle, or overhead mounting positions, and the T Series configuration is suited to stationary or mobile DEF dispensing applications.
• Q: Why are stainless steel and Viton used on this reel?
  A: DEF compatibility is important because the fluid can react with unsuitable metals and elastomers. The stainless steel full-flow swivel and Viton seals help support reliable DEF dispensing service.
• Q: Is this reel for high-pressure hydraulic service?
  A: No. This is a low-pressure DEF dispensing reel rated for 300 PSI. For hydraulic oil, grease, or high-pressure fluid service, choose a reel series matched to the required pressure, hose size, and fluid compatibility.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
