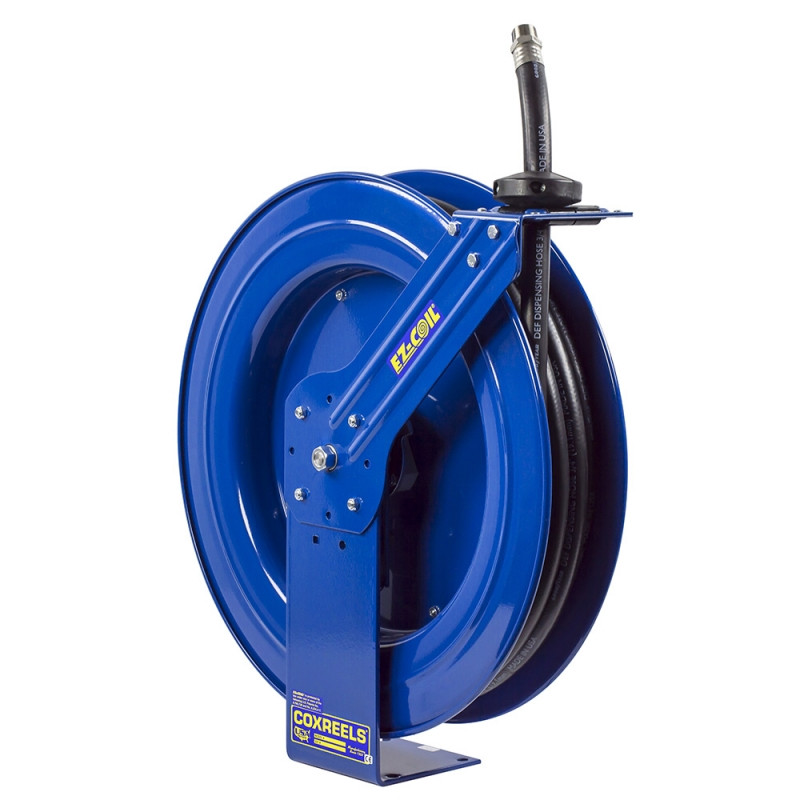

Coxreels EZ-SH-550-DF-BBX DEF Heavy Duty Spring Rewind Hose Reel | EZ-T-DEF Series | 3/4" Hose Diameter | 50' Hose Length | 300 Max PSI

Built for longer-reach Diesel Exhaust Fluid (DEF) dispensing in fleet maintenance shops, mobile service trucks, and DEF storage stations, the Coxreels EZ-SH-550-DF-BBX EZ-Coil spring rewind hose reel combines a 3/4" hose I.D., 50 ft hose length, and 300 PSI maximum pressure rating for controlled low-pressure DEF transfer. DEF, or Diesel Exhaust Fluid, requires compatible fluid-contact components, and this reel is equipped with a stainless steel external full-flow swivel and Viton seals to support DEF dispensing service.

The EZ-SH-550-DF-BBX is part of Coxreels' EZ-SH-DEF reel family and uses the EZ-Coil controlled-retraction system, which rewinds hose more slowly than conventional spring reels for improved handling. Its single pedestal frame, Super Hub dual axle support system, and adjustable guide arm make it a practical hose management choice where 50 ft of DEF hose is needed without leaving excess hose loose across the shop floor or service area.

Type: EZ-Coil Spring Rewind DEF Hose Reel | Series: EZ-SH-DEF Series | Model: EZ-SH-550-DF-BBX | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI | Swivel: Stainless steel 90° full-flow NPT | Swivel Seals: Viton | Ship Weight: 76 lb | Overall Dimensions: 9.88" W x 25.5" H x 24" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• Stainless steel external full-flow swivel supports DEF dispensing and allows easier access for seal maintenance and hose installation.
• Viton swivel seals provide chemical resistance for Diesel Exhaust Fluid handling.
• EZ-Coil safety system uses an enclosed cartridge-style spring motor to retract the hose up to 80% slower than conventional spring rewind reels.
• Super Hub dual axle support system helps improve stability and reduce vibration during payout and rewind.
• Solid one-piece heavy gauge 1/4" steel base and support post provide a stable single pedestal mounting structure.
• CNC spun and ribbed discs with rolled edges help protect the hose and reinforce the reel drum.
• Multi-position guide arm adjusts for wall, floor, ceiling, overhead, and vehicle mounting positions.
• Chip-resistant CPC powder coat finish, adjustable solid rubber hose stop, non-corrosive stainless steel spring and pawl, zinc-plated ratchet, and permanently lubricated precision bearings support reliable daily use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance facilities - dispensing DEF for diesel trucks, vans, buses, and service vehicles while keeping longer hose runs organized.
• Mobile lube and service trucks - mounting on vehicles where 50 ft of hose reach helps service equipment without repositioning the truck as often.
• Bulk DEF storage areas - managing hose between DEF tanks, pumps, and dispensing points within the reel's pressure and compatibility limits.
• Municipal and utility garages - supporting DEF service for refuse trucks, public works equipment, utility vehicles, and off-road diesel assets.
• Diesel repair shops - providing cleaner hose storage for service bays that handle SCR-equipped trucks and equipment.

FAQs:

• Q: Does the EZ-SH-550-DF-BBX come with hose installed?
  A: Yes. This model is supplied with 50 ft of 3/4" I.D. DEF hose, making it a hose-included version rather than a bare reel.
• Q: What is the advantage of the 50 ft hose length?
  A: The longer hose reach is useful when dispensing DEF across larger service bays, around trucks, or from a fixed DEF station. It can reduce the need to move vehicles or carts just to reach the fill point.
• Q: What does EZ-Coil do on this reel?
  A: EZ-Coil slows the hose rewind compared with conventional spring rewind reels. This helps the user maintain better control as the hose retracts and reduces the snap-back effect associated with standard spring reels.
• Q: Can this DEF reel be mounted on a ceiling or service vehicle?
  A: Yes. The guide arm is adjustable for floor, wall, ceiling, overhead, and vehicle mounting. Confirm mounting clearance using the 9.88" W x 25.5" H x 24" L overall dimensions and the 4" x 5" mounting pattern before installation.
• Q: Can this reel be used for diesel fuel, gasoline, or oil?
  A: This model is specified for DEF dispensing. Do not use it for fuels, oils, or other fluids unless Coxreels confirms compatibility with the hose, seals, swivel, pressure rating, and fluid being transferred.
