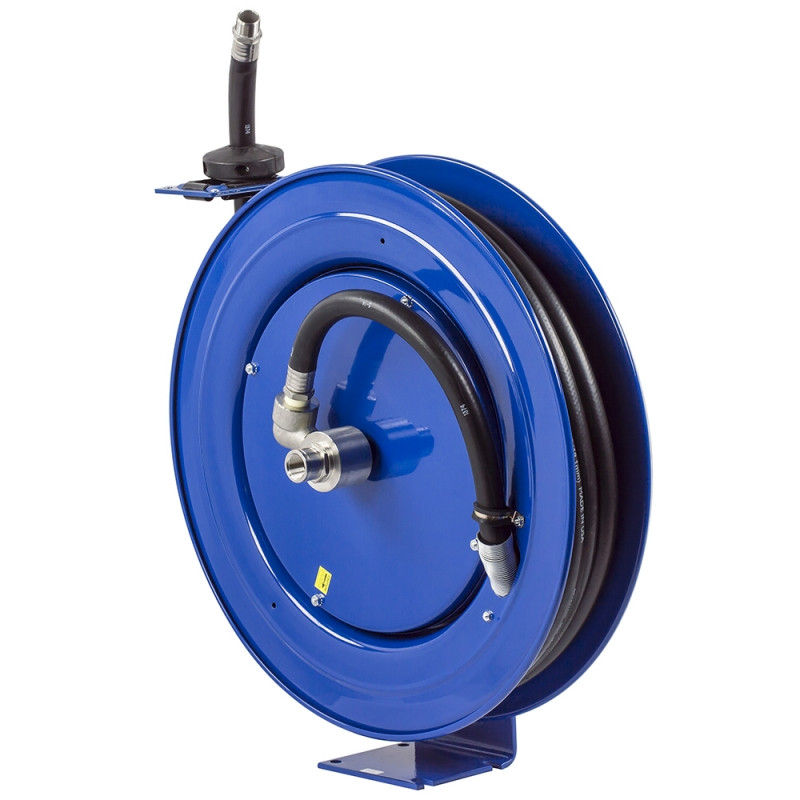

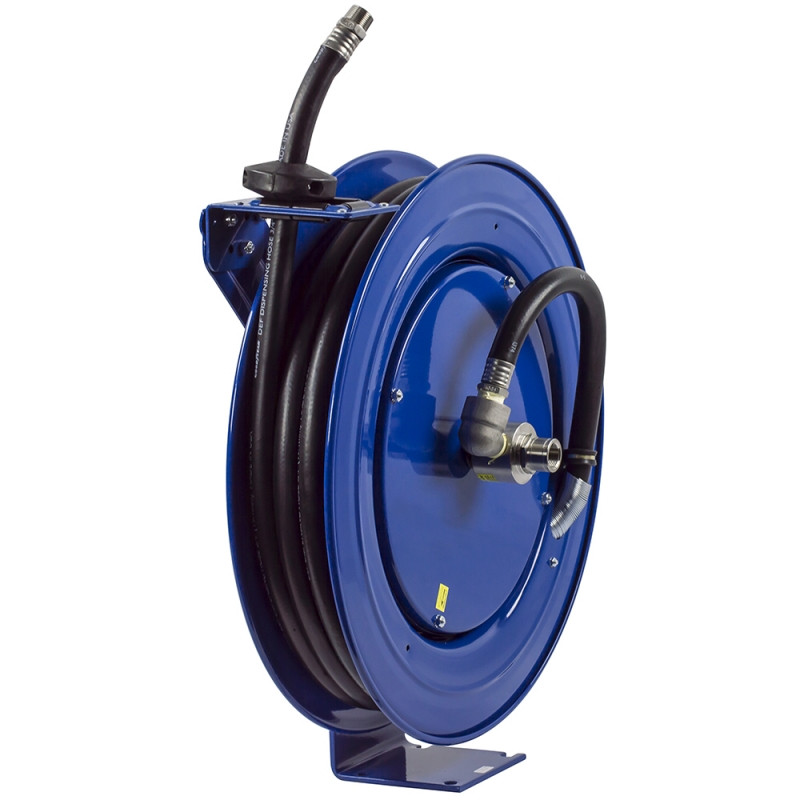

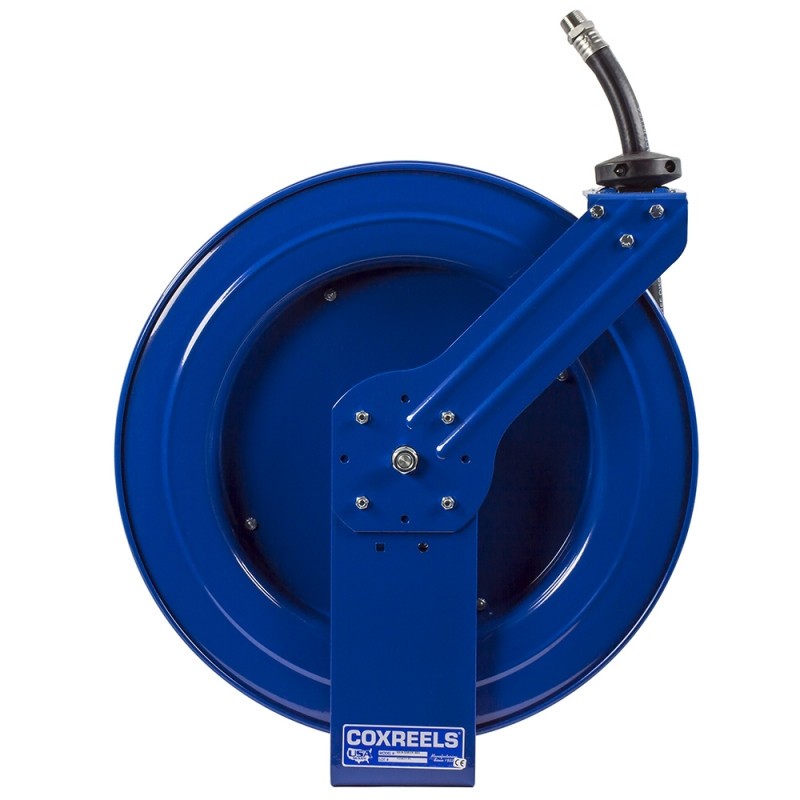

Coxreels SHL-N-450-BBX DEF Heavy Duty Spring Rewind Hose Reel | DEF-SH Series | 1/2" Hose Diameter | 50' Hose Length | 300 Max PSI | Less Hose

Built for organized Diesel Exhaust Fluid (DEF) dispensing setups, the Coxreels SHL-N-450-BBX DEF Heavy Duty Spring Rewind Hose Reel provides controlled hose storage for systems requiring a 1/2" hose I.D., 50 ft hose capacity, and 300 PSI maximum working pressure. DEF is an emissions-control fluid used in many modern diesel vehicles and equipment, and this DEF-SH Series reel supports clean handling with a stainless steel 90° full-flow NPT swivel and Viton seals selected for chemical resistance.

The spring rewind design helps reduce loose hose on shop floors, service trucks, and dispensing areas, while the Super Hub dual axle support system improves reel stability during pull-out and rewind. With an adjustable guide arm, permanently lubricated precision bearings, and a powder-coated steel frame, the DEF-SH Series is suited to stationary installations as well as mobile service applications where hose control, mounting flexibility, and fluid compatibility matter.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: DEF-SH Series | Model: SHL-N-450-BBX | Configuration: Less Hose | Hose Included: No | Hose I.D.: 1/2" | Max Hose O.D.: 7/8" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Inlet: 1/2" FNPT | Swivel Material: Stainless Steel | Seal Type: Viton | Finish: Powder Coated | Weight: 46 lbs | Width: 8-1/4" | Height: 21-1/4" | Length: 19-1/2"

Features:

• Stainless steel 90° full-flow NPT swivel supports DEF dispensing applications and allows easier access for seal maintenance.
• Viton swivel seals provide chemical resistance for DEF system requirements.
• Enclosed, factory-tuned cartridge-style spring motor supports smooth spring rewind operation and can be removed for maintenance.
• CNC robotically spun and ribbed discs with rolled edges add reel strength while helping protect the hose during pull-out and rewind.
• Super Hub dual axle support system improves reel stability and reduces vibration during use.
• Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• Solid one-piece heavy gauge 1/4" steel base and support post provide stable single-pedestal mounting.

Made in USA:

2 Year Warranty

Applications:

• Diesel fleet service: Managing DEF dispensing hose in truck shops, bus garages, municipal fleet bays, and equipment service areas.
• Mobile service vehicles: Mounting a controlled spring rewind reel on service trucks where loose hose can create storage and handling issues.
• Industrial maintenance areas: Keeping compatible fluid transfer hose organized near tanks, totes, dispensing stations, or maintenance work cells.
• Agricultural and construction equipment support: Servicing diesel-powered machinery that requires DEF handling as part of regular fleet upkeep.
• Shop and facility hose management: Reducing trip hazards and protecting hose from dragging, kinking, or being left across work areas.

FAQs:

• Q: What does less hose mean on the SHL-N-450-BBX?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible hose separately, making sure the hose I.D., O.D., length, pressure rating, and fluid compatibility match the application.
• Q: Can this reel be used for DEF dispensing?
  A: Yes. The DEF-SH Series uses a stainless steel 90° full-flow NPT swivel and Viton seals for Diesel Exhaust Fluid dispensing applications. The hose still needs to be selected separately because this SKU is sold less hose.
• Q: What hose size should be used with this reel?
  A: This model is listed for 1/2" hose I.D. with 50 ft capacity and a maximum hose O.D. of 7/8". Do not exceed the listed hose O.D. if you need the full rated hose capacity.
• Q: Where can the guide arm be mounted?
  A: The guide arm can be adjusted for wall, floor, ceiling, vehicle, and overhead mounting positions. This helps the reel fit fixed shop installations as well as mobile service layouts.
• Q: Is the hose stop included?
  A: Coxreels lists an adjustable solid rubber hose stop among the reel features. The hose itself is not included with this less-hose configuration.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
