Coxreels SHL-N-525-DF-BBX DEF Heavy Duty Spring Rewind Hose Reel | DEF-SH Series | 3/4" Hose Diameter | 25' Hose Length | 300 Max PSI | Less Hose

Built for Diesel Exhaust Fluid (DEF) dispensing layouts where a larger hose I.D. is preferred in a shorter reach, the Coxreels SHL-N-525-DF-BBX DEF Heavy Duty Spring Rewind Hose Reel provides controlled hose storage for 3/4" hose I.D., 25 ft hose capacity, and 300 PSI maximum working pressure. DEF is used in many modern diesel vehicles and equipment to support emissions-control systems, so reel construction and fluid-contact components matter. This DEF-SH Series reel uses a stainless steel 90° full-flow NPT swivel and Viton seals to support compatible DEF handling while keeping the swivel accessible for seal maintenance.

The spring rewind mechanism retracts hose after use to help reduce floor clutter, hose damage, and cleanup time in fleet shops, service bays, dispensing stations, and mobile service vehicles. Coxreels’ Super Hub dual axle support system improves reel stability and reduces vibration during use, while the adjustable guide arm gives installers flexibility for wall, floor, ceiling, vehicle, and overhead mounting positions. Because this model is supplied less hose, it is a practical choice when the buyer wants to select a specific compatible hose for the fluid, fitting, and routing requirements of the installation.

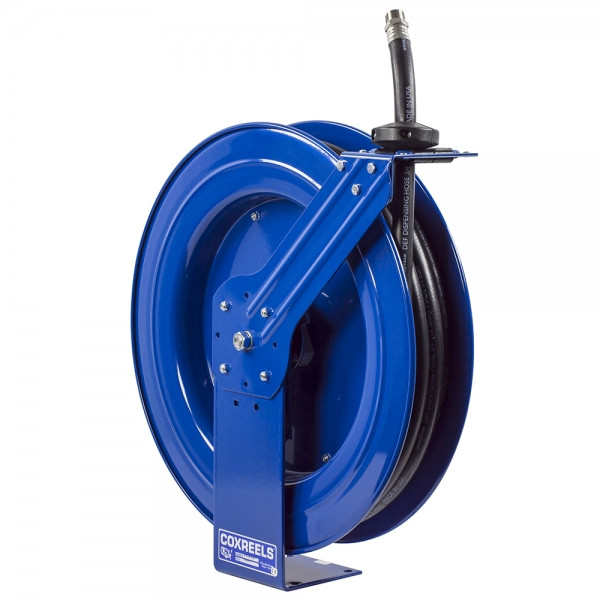

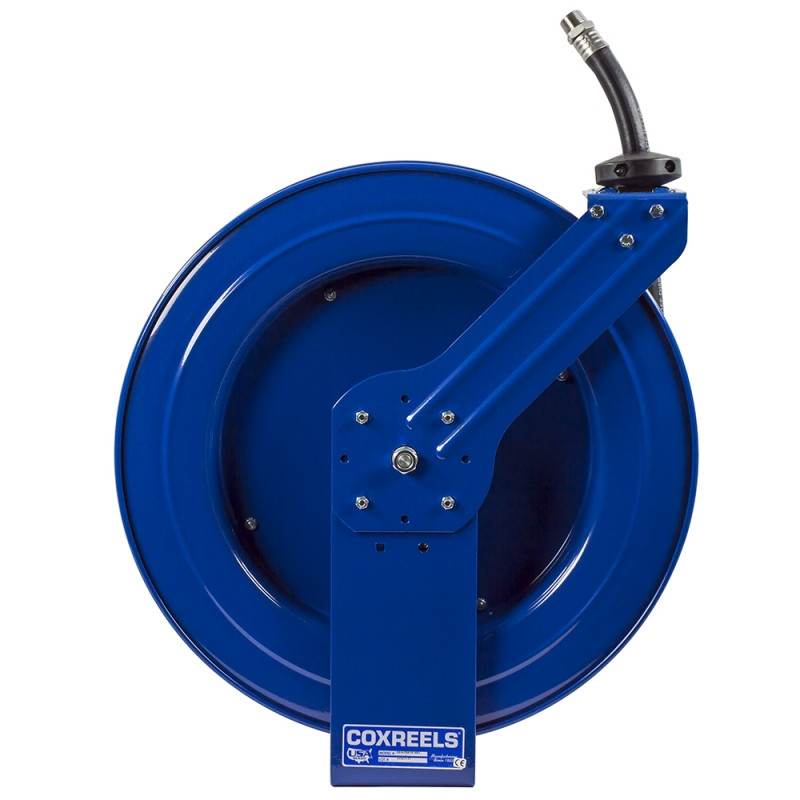

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: DEF-SH Series | Model: SHL-N-525-DF-BBX | Configuration: Less Hose | Hose Included: No | Hose I.D.: 3/4" | Max Hose O.D.: 1-1/16" | Hose Capacity: 25 ft | Max Pressure: 300 PSI | Swivel: Stainless Steel 90° Full-Flow NPT | Seal Type: Viton | Finish: CPC Powder Coat | Weight: 45 lbs | Width: 9-3/8" | Height: 25-1/2" | Length: 19-1/2" | Mounting Pattern: 4" x 5" | Base: 6" x 6"

Features:

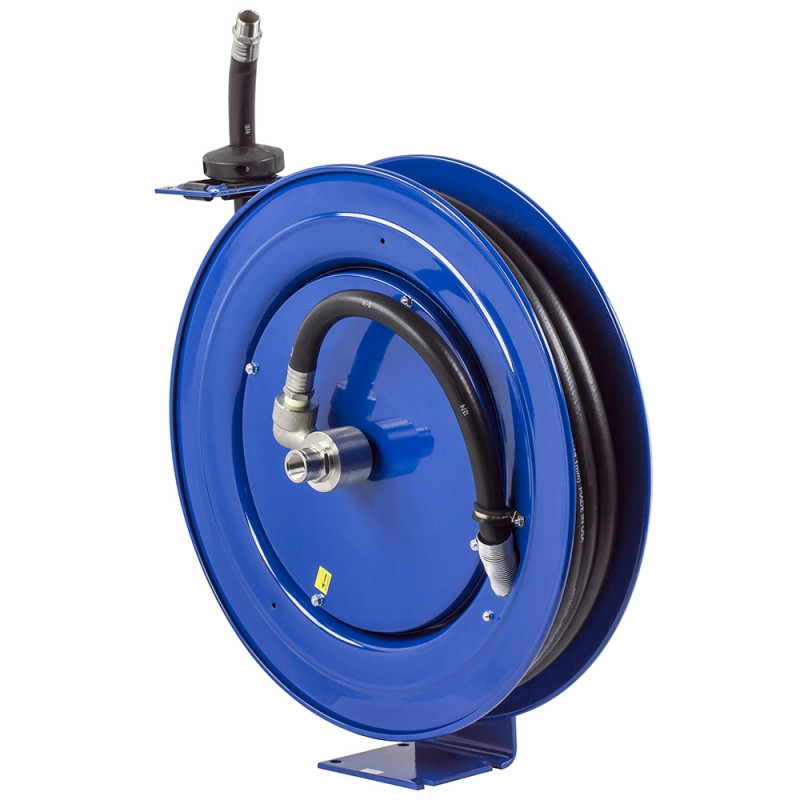

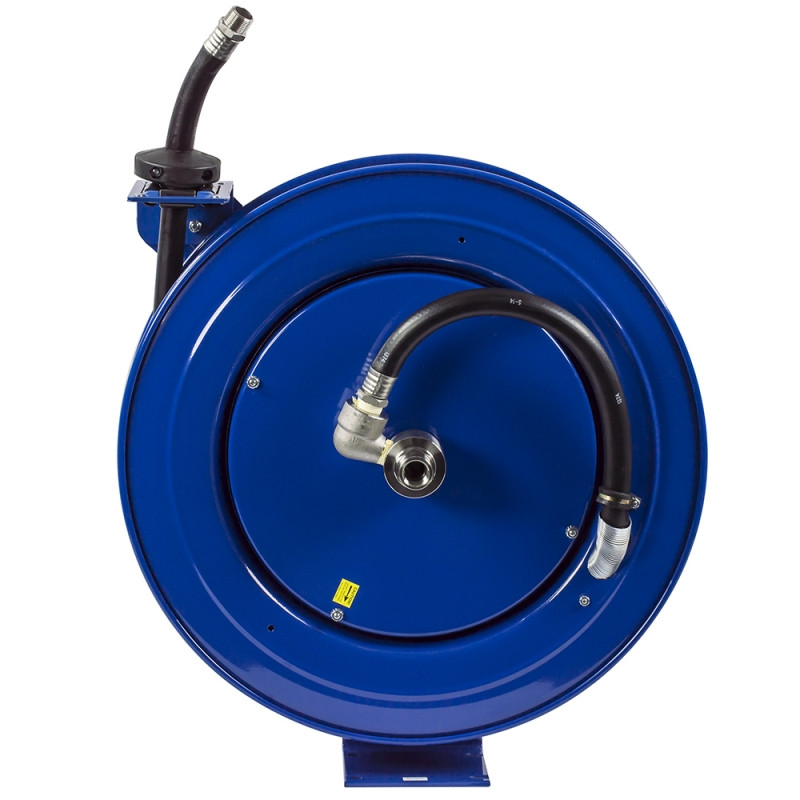

• Non-corrosive stainless steel 90° full-flow NPT swivel supports Diesel Exhaust Fluid (DEF) dispensing applications.
• Viton swivel seals provide chemical resistance for compatible DEF handling systems.
• Lubricated and enclosed cartridge-style spring motor is factory tuned and removable for safer, more convenient maintenance.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose during pull-out and rewind.
• Super Hub dual axle support system improves stability and helps reduce vibration during operation.
• Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• Solid one-piece heavy gauge 1/4" steel base and support post provide stable single-pedestal mounting.

Made in USA:

2 Year Warranty

Applications:

• Diesel fleet maintenance: Managing DEF dispensing hose in truck shops, bus depots, municipal garages, and mixed diesel equipment fleets.
• Mobile service trucks: Adding spring rewind hose control to service vehicles where compact hose storage and fast rewind help keep the truck organized.
• DEF storage and dispensing stations: Routing compatible hose from tanks, totes, or pump assemblies while keeping unused hose off the floor.
• Agricultural and construction equipment service: Supporting DEF handling for tractors, loaders, excavators, generators, and other diesel-powered equipment.
• Industrial maintenance areas: Reducing loose hose in shop aisles, maintenance bays, and facility service points where hose protection and storage matter.

FAQs:

• Q: What does less hose mean for the SHL-N-525-DF-BBX?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible hose separately, making sure the hose I.D., O.D., length, pressure rating, fittings, and fluid compatibility match the DEF dispensing system.
• Q: What hose size is this reel built to handle?
  A: This model is listed for 3/4" hose I.D. with 25 ft capacity and a maximum hose O.D. of 1-1/8". Do not exceed the listed hose O.D. if you need the reel to hold the full rated length.
• Q: Can this reel be mounted on a service truck?
  A: Yes. The guide arm can be adjusted for vehicle mounting, and the Super Hub™ dual axle support system helps stabilize the reel during pull-out and rewind. Confirm mounting surface strength and hose routing before installation.
• Q: Is this reel only for DEF?
  A: The DEF-SH Series is equipped with DEF-focused components, including a stainless steel full-flow swivel and Viton seals. Coxreels notes that less-hose models can also be used for air, water, or oil when the separately selected hose and system requirements are compatible.
• Q: Does the reel include a hose stop?
  A: Coxreels lists an adjustable solid rubber hose stop among the series features. The dispensing hose itself is not included with this less-hose model.
