Coxreels EZ-TSHL-3100 EZ Coil Spring Rewind Hose Reel | EZ-T Series | 3/8" Hose Diameter | 100' Hose Length | 300 Max PSI | Less Hose

When a hose reel needs to survive truck beds, service vehicles, mobile maintenance rigs, and exposed shop mounting locations, the Coxreels EZ-TSHL-3100 gives buyers the strength of the EZ-T Truck Mount platform with the added safety of EZ-Coil controlled retraction. This spring rewind hose reel is built for 3/8" I.D. hose with up to 100 ft hose capacity, a 300 PSI low-pressure rating, and a less hose configuration for users who want to install their own compatible air, water, or oil hose.

The EZ-Coil system controls rewind speed up to 80% slower than conventional spring driven reels, helping reduce snap-back during retrieval. Coxreels dual pedestal frame, Super Hub triple axle support system, 1" solid steel axle, and 1/4" steel base give the reel the structure needed for mobile and off-road service where vibration, impact, and frequent pull-out cycles are part of daily work.

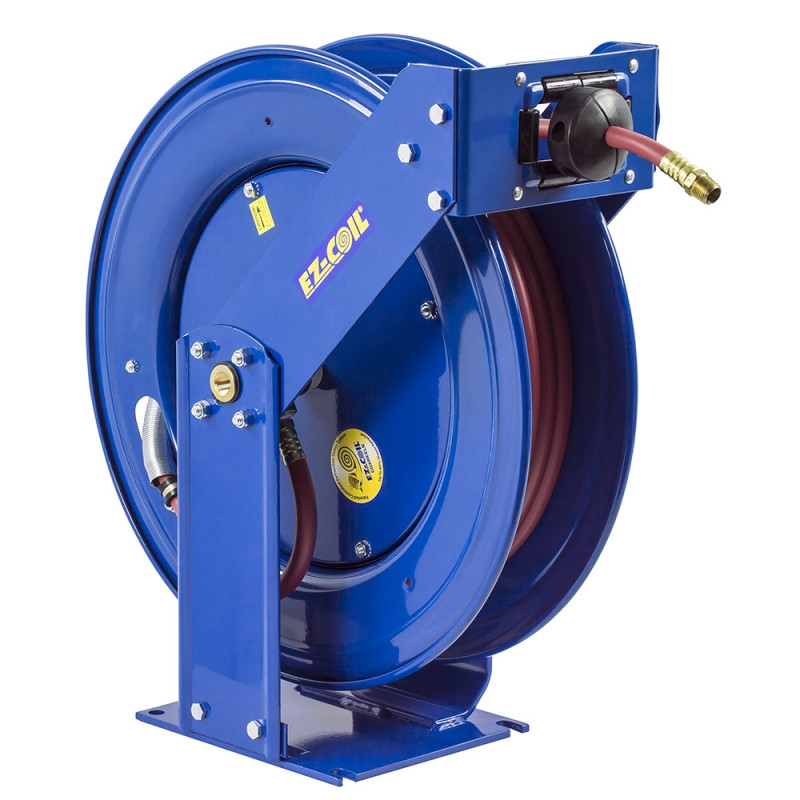

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TSHL-3100 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 100 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Swivel: Machined Solid Brass 90° Full-Flow NPT | Swivel Seals: Nitrile | Ship Weight: 74 lbs | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y

Features:

• EZ-Coil controlled retraction system rewinds up to 80% slower than conventional spring driven reels for safer hose return.
• Sturdy dual pedestal reel features Coxreels exclusive Super Hub™ triple axle support system for added structural stability.
• External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet for efficient flow and easier seal maintenance.
• Nitrile swivel seals support low-pressure air, water, and oil service when matched with compatible hose.
• Solid one-piece, heavy gauge 1/4" steel base and support posts provide a rigid mounting foundation.
• 1" solid steel axle and lubricated precision bearings support smooth drum rotation during pull-out and rewind.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Service trucks and utility vehicles where a spring rewind reel must handle vibration, movement, and repeated field use.
• Fleet maintenance bays using 3/8" hose for air tools, tire service, and general vehicle repair tasks.
• Industrial MRO areas that need organized hose storage for air, water, or oil delivery points.
• Construction and mobile equipment service where the reel may be mounted to a truck, trailer, bench, wall, floor, or overhead location.
• Garage and workshop installations where the buyer wants to select a specific compatible hose rather than purchase a reel with hose installed.

FAQs:

• Q: What does 'less hose' mean on the EZ-TSHL-3100?
  A: Less hose means the reel is supplied without hose installed. The buyer must provide compatible 3/8" I.D. hose separately, making sure the hose O.D., pressure rating, fittings, and service type match the reel and application.
• Q: Can this reel be used for air, water, or oil?
  A: Yes. Coxreels lists low-pressure less-hose models for air, water, or oil service. Always confirm that the hose and fittings you install are rated for the same media, temperature, and pressure requirements.
• Q: What is EZ-Coil controlled retraction?
  A: EZ-Coil is Coxreels' controlled retraction system. It slows rewind speed up to 80% compared with conventional spring driven reels, helping reduce hose whip and improving safety during hose return.
• Q: What mounting positions are supported?
  A: The guide arm adjusts for wall, floor, vehicle, and overhead positions. Use the listed 7" x 8" mounting pattern and 8" x 9" base dimensions when planning the mounting plate or bracket.
• Q: Is 300 PSI the correct pressure rating for shop air?
  A: For many standard shop air systems, 300 PSI provides more pressure capacity than the system operating pressure. The complete hose assembly must still be rated for the working pressure and media being used.
