Cleco 19TTA07Q T-Handle Pneumatic Screwdriver | 19 Series | Trigger Start | 660 RPM | 1.2 - 5 (ft-lbs) Torque Range

Built for higher-torque screw fastening in compact assembly stations, the Cleco 19TTA07Q T-handle pneumatic screwdriver delivers 660 RPM free speed with a 15–60 in-lb torque range for controlled installation of machine screws and light threaded fasteners. Compared with lower-torque 19 Series models, this configuration gives operators more fastening capacity while keeping the quick, balanced feel needed for repetitive line work. Its CLECOmatic clutch (an adjustable shut-off clutch that stops the tool when the preset torque is reached) helps improve repeatability and reduce over-tightening on production assemblies.

The 19 Series body keeps the tool compact at 8.3" overall length and 1.54 lbs, making it practical for bench stations, fixtures, and conveyor-fed assembly cells. A 1/4" quick-change drive accepts common hex screwdriver bits, while the trigger-start throttle gives the operator positive control before rundown begins. The T-handle pistol layout works well on pre-threaded fasteners where the tool is guided into position and torque control matters more than impact force.

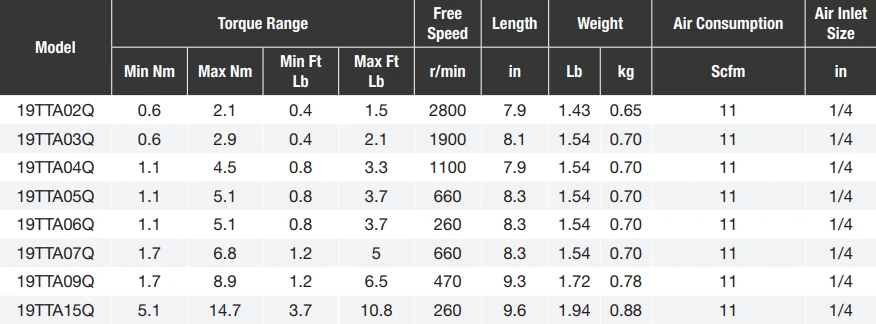

Type: Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19TTA07Q | Handle Style: T-Handle Pistol | Start Type: Trigger Start | Clutch Type: CLECOmatic Shut-Off Clutch | Drive: 1/4" Quick Change | Torque Range: 15–60 in-lb / 1.7–6.8 Nm / 1.2–5 ft-lbs | Torque Range with Standard Spring: 24–60 in-lb / 2.7–6.8 Nm | Free Speed: 660 RPM | Overall Length: 8.3" / 210 mm | Weight: 1.54 lbs / 0.7 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Air Consumption: 11 SCFM | Recommended Air Pressure: 90 PSI

Features:

• CLECOmatic shut-off clutch supports accurate, repeatable tightening in light-to-medium assembly fastening.
• 15–60 in-lb torque range provides more fastening capacity than lower-torque 19 Series models while remaining suitable for small threaded fasteners.
• 660 RPM free speed balances production pace with controlled rundown for screws that need repeatable seating.
• Trigger-start throttle gives the operator positive control over tool activation before the bit engages the fastener.
• 1/4" quick-change drive allows fast bit swaps when changing screw styles or moving between assembly tasks.
• T-handle pistol configuration helps guide the tool on pre-threaded fasteners in bench, fixture, and line-station work.
• Thumb-actuated reverse lever supports one-hand direction changes and can be adapted for left- or right-handed users.
• Top air inlet helps keep the air hose routed away from the operator’s hand and the workpiece.

Applications:

• Appliance assembly: Installing screws into panels, brackets, guards, covers, and light structural components where repeatable torque helps maintain product consistency.
• Automotive interior and trim production: Fastening clips, plastic trim, dashboard components, light brackets, and subassemblies using controlled pneumatic torque.
• Electronics and enclosure manufacturing: Tightening screws in housings, control boxes, instrument panels, and small assemblies that require consistent torque without impact action.
• Aerospace and precision manufacturing: Supporting controlled fastening on light hardware, panels, and pre-threaded components in production or repair environments.
• General industrial workstations: Repetitive screwdriving in fixtures, benches, and conveyor cells where the tool must be compact, repeatable, and easy to position.

FAQs:

• Q: How is the 19TTA07Q different from lower-torque 19 Series models?
  A: The 19TTA07Q covers a higher 15–60 in-lb torque range while keeping the same compact 19 Series T-handle format. Choose it when the fastener requires more torque than the 10–45 in-lb models can provide.
• Q: What does the CLECOmatic clutch do during fastening?
  A: The CLECOmatic clutch shuts the tool off when the preset torque is reached. This improves fastening repeatability and helps prevent over-driving screws, especially in production assembly work.
• Q: Is this screwdriver meant for removing stuck screws?
  A: It is reversible and can back out threaded fasteners, but it is not an impact tool. Use it for controlled screw fastening and removal within the tool’s torque range, not for seized or damaged fasteners.
• Q: What type of bits does this model use?
  A: The 19TTA07Q uses a 1/4" quick-change drive for compatible hex screwdriver bits. Match the bit tip to the screw head to reduce cam-out, fastener damage, and bit wear.
• Q: What air setup is recommended?
  A: Use clean, regulated air at 90 PSI with a 1/4" NPT connection and a 3/8" minimum hose I.D. A properly sized FRL helps keep air pressure stable and protects the pneumatic motor and clutch system.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
