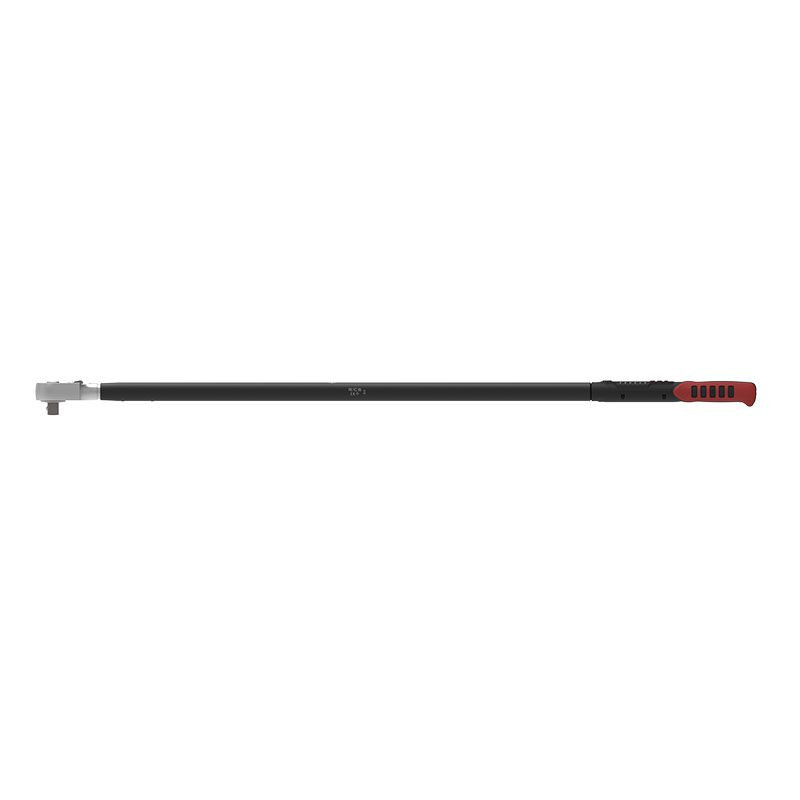

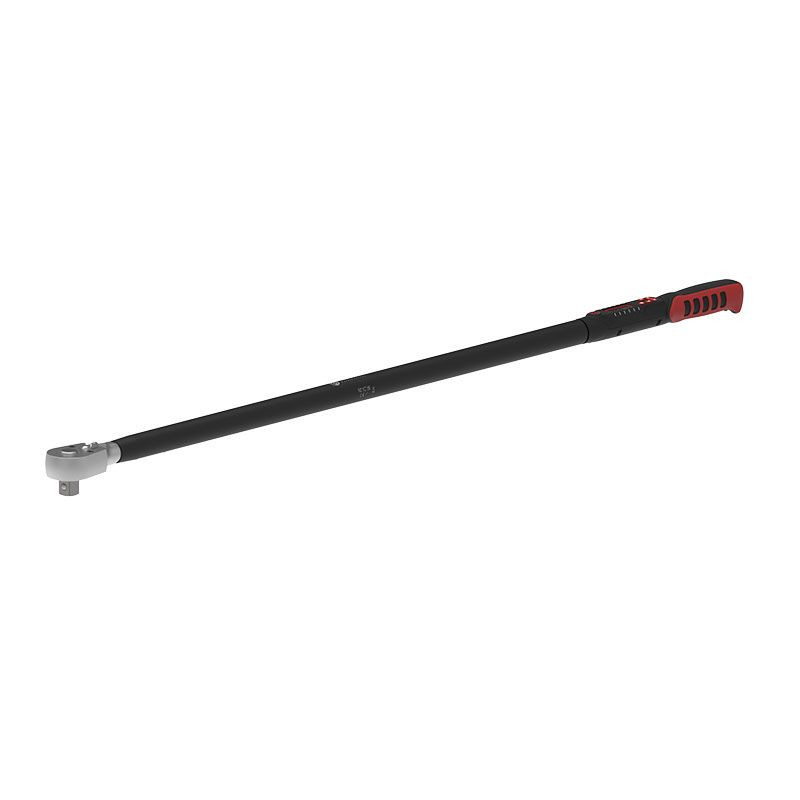

Chicago Pneumatic Electronic Torque Wrench | CP8922TC | 32-625 (ft-lbs) Torque Range | 3/4" Square Drive

Built for high-capacity torque-and-angle verification with connected reporting, the Chicago Pneumatic CP8922TC Electronic Torque & Angle Wrench gives technicians a digital 32-625 ft-lbs / 50-850 Nm torque range in a 3/4" square drive format. The TC, or Torque Check, version adds angle measurement, Bluetooth communication, P-Sets, sequencing, torque check, re-hit detection, and reporting through the CPLinQ application, helping service and quality teams document large-fastener tightening with more process control than a standalone electronic torque wrench.

The CP8922TC is the higher-capacity 3/4" drive Torque Check model in the CP89 eTorque range, suited for heavy vehicle service, fleet maintenance, industrial MRO, equipment repair, and inspection-focused work. Its acoustic buzzer, strong vibration motor, and 12 LED progressive light display help guide the operator as the selected torque or angle target is approached. With ±3% torque accuracy, ±2° angle accuracy, and onboard memory for up to 2,000 results, this wrench supports controlled manual tightening and documentation on larger service fasteners.

Type: Electronic Torque & Angle Wrench | Model: CP8922TC | SKU: 8941189221 | Series: CP89 eTorque | Version: Torque Check | Drive Size: 3/4" | Drive Type: Square | Torque Range: 32-625 ft-lbs / 50-850 Nm | Max Torque: 850 Nm / 627 ft-lbf | Min Torque: 50 Nm / 36.9 ft-lbf | Torque Accuracy: ±3% | Angle Measurement: Yes | Angle Accuracy: ±2° | Tightening Direction: CW Only | Overload Torque: 10% / 935 Nm | Feedback Type: Acoustic Buzzer and 2x6 LEDs | Communication Type: Bluetooth | Wireless Communication: Yes | Results Memory Capacity: 2000 | Unit Measurement Supported: Nm, ft/lb | Quality Strategies: Yes | Compliance: ISO 6789:2017 | Type Class: Type I, Class 3 | Battery Type: AA Batteries | Autonomy: 8 hr | Lever Arm Length: 48.03" / 1220 mm | Overall Length: 48.03" / 1220 mm | Width: 2.36" / 60 mm | Height: 1.77" / 45 mm | Weight: 9.19 lb / 4.17 kg | Operating Temperature: -10°C to 40°C / 14°F to 104°F

Features:

• Torque Check configuration adds torque and angle measurement, P-Sets, sequencing, torque check, re-hit detection, and reporting through the CPLinQ application.
• 32-625 ft-lbs / 50-850 Nm torque range supports high-capacity manual tightening on large service and maintenance fasteners.
• 3/4" square drive accepts compatible 3/4" drive sockets commonly used in heavy vehicle, equipment, and industrial service work.
• Bluetooth communication and wireless capability support connected result management and reporting workflows.
• 12 LED progressive light display gives visual feedback as the selected torque or angle value is approached.
• Acoustic buzzer and strong vibration motor provide audible and tactile alerts during torque application.
• Robust gear system is rated by Chicago Pneumatic for accuracy up to 25,000 cycles.
• Soft grip, non-slip handle helps maintain control during higher-torque manual tightening and final torque checks.

Included Items:

• CP89 eTorque electronic torque wrench.
• USB connection cable.
• Calibration certificate.
• Molded plastic case.
• Removable foam insert.

Applications:

• Heavy vehicle service - torque-and-angle checks on trucks, trailers, buses, suspension components, chassis hardware, and large service fasteners within the rated range.
• Fleet maintenance - documented tightening on high-load repair components, larger mechanical assemblies, frames, brackets, and service hardware.
• Industrial MRO - connected torque verification on pumps, skids, guards, flanges, machinery frames, and heavy equipment maintenance hardware.
• Equipment repair shops - final torque confirmation on construction equipment, agricultural machinery, and shop-repaired mechanical assemblies.
• Inspection and quality checks - recording high-capacity fastening results where traceability is useful for service records or process documentation.

FAQs:

• Q: What makes the CP8922TC different from the CP8922?
  A: The CP8922TC is the Torque Check version. Compared with the standalone CP8922, it adds torque and angle measurement, Bluetooth communication, P-Sets, sequencing, torque check, re-hit detection, and reporting through the CPLinQ application.
• Q: What torque range does the CP8922TC cover?
  A: The CP8922TC covers 32-625 ft-lbs / 50-850 Nm. This makes it a high-capacity 3/4" drive option in the CP89 eTorque family for large fasteners and heavy service work.
• Q: Does the CP8922TC measure angle?
  A: Yes. The CP8922TC includes angle measurement with ±2° angle accuracy, making it useful for procedures that require both torque and angle confirmation.
• Q: Does this wrench store tightening results?
  A: Yes. Manufacturer data lists a results memory capacity of 2,000 results. Bluetooth communication and CPLinQ compatibility support connected reporting and result management workflows.
• Q: Is the CP8922TC an air tool?
  A: No. The CP8922TC is an electronic manual torque-and-angle wrench. AA batteries power the display, measurement, alert, memory, and communication functions, while torque is applied manually by the operator.
