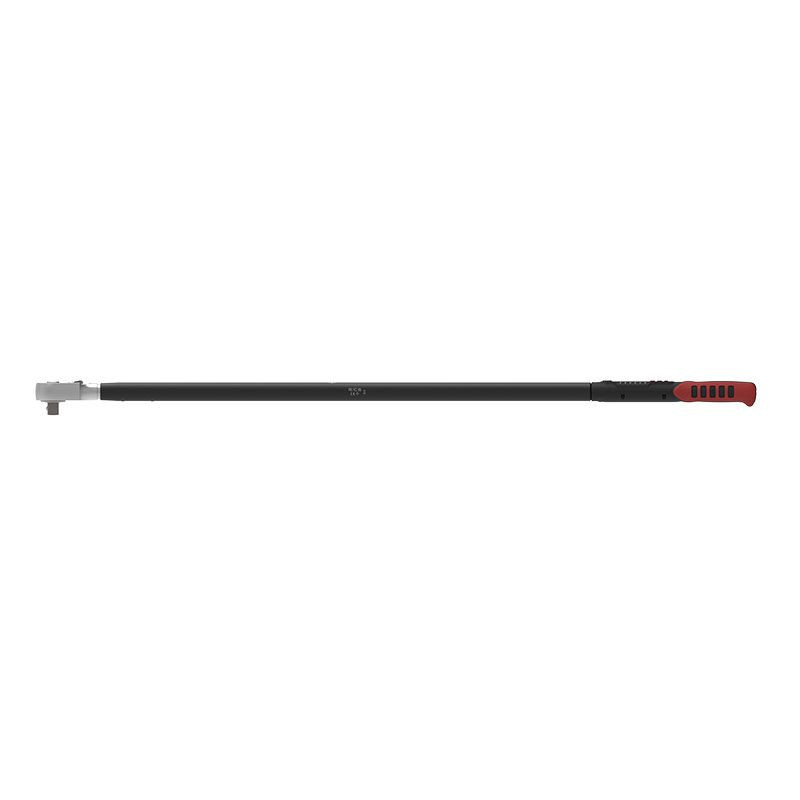

Chicago Pneumatic Electronic Torque Wrench | CP8922 | 32-625 (ft-lbs) Torque Range | 3/4" Square Drive

Built for high-capacity manual torque verification on large service and maintenance fasteners, the Chicago Pneumatic CP8922 Electronic Torque Wrench gives technicians a digital 32-625 ft-lbs / 50-850 Nm torque range in a 3/4" square drive format. This CP89 eTorque model is suited for heavy vehicle service, fleet maintenance, equipment repair, and industrial MRO work where larger fasteners require more capacity than lower-range torque wrenches can provide. The digital feedback system helps operators confirm final torque more clearly than a mechanical click-style wrench.

The CP8922 is the standalone version, meaning it provides onboard electronic torque measurement without Bluetooth communication, wireless reporting, or angle measurement. Its acoustic buzzer, strong vibration motor, and 12 LED progressive light display help guide the operator as the selected torque value is approached and reached. With ±3% torque accuracy, ISO 6789:2017 compliance, AA battery power, and included calibration documentation, this 3/4" drive wrench is built for controlled manual torque checks on larger assemblies and high-load service components.

Type: Electronic Torque Wrench | Model: CP8922 | SKU: 8941189220 | Series: CP89 eTorque | Version: Standalone | Drive Size: 3/4" | Drive Type: Square | Torque Range: 32-625 ft-lbs / 50-850 Nm | Max Torque: 850 Nm / 627 ft-lbf | Min Torque: 50 Nm / 36.9 ft-lbf | Torque Accuracy: ±3% | Angle Measurement: No | Tightening Direction: CW Only | Overload Torque: 10% / 935 Nm | Feedback Type: Acoustic Buzzer and 2x6 LEDs | Communication Type: None | Wireless Communication: No | Unit Measurement Supported: Nm, ft/lb | Compliance: ISO 6789:2017 | Type Class: Type I, Class 3 | Battery Type: AA Batteries | Autonomy: 8 hr | Lever Arm Length: 48.03" / 1220 mm | Overall Length: 48.03" / 1220 mm | Width: 2.36" / 60 mm | Height: 1.77" / 45 mm | Weight: 9.19 lb / 4.17 kg | Operating Temperature: -10°C to 40°C / 14°F to 104°F

Features:

• Digital torque measurement supports controlled manual tightening on large service, maintenance, and inspection fasteners.
• 32-625 ft-lbs / 50-850 Nm torque range covers high-capacity applications where a long 3/4" drive wrench is required.
• 3/4" square drive accepts compatible 3/4" drive sockets commonly used in heavy vehicle, equipment, and industrial service work.
• 12 LED progressive light display gives visual feedback as the selected torque value is approached.
• Acoustic buzzer and strong vibration motor provide audible and tactile alerts during torque application.
• Standalone configuration provides onboard torque measurement without Bluetooth communication or torque-angle reporting features.
• Robust gear system is rated by Chicago Pneumatic for accuracy up to 25,000 cycles.
• Soft grip, non-slip handle helps maintain control during higher-torque manual tightening and final torque checks.

Included Items:

• CP89 eTorque electronic torque wrench.
• USB connection cable.
• Calibration certificate.
• Molded plastic case.
• Removable foam insert.

Applications:

• Heavy vehicle service - controlled tightening on trucks, trailers, buses, suspension components, chassis hardware, and large service fasteners within the rated range.
• Fleet maintenance - torque checks on high-load repair components, larger mechanical assemblies, frames, brackets, and service hardware.
• Industrial MRO - manual torque verification on pumps, skids, guards, flanges, machinery frames, and heavy equipment maintenance hardware.
• Equipment repair shops - final torque confirmation on construction equipment, agricultural machinery, and shop-repaired mechanical assemblies.
• Inspection and quality checks - verifying higher-torque fasteners where digital feedback is preferred over a mechanical click-style wrench.

FAQs:

• Q: What torque range does the CP8922 cover?
  A: The CP8922 is listed with a customer-facing torque range of 32-625 ft-lbs / 50-850 Nm. The detailed technical data also lists 50 Nm minimum torque and 850 Nm maximum torque.
• Q: Does the CP8922 measure angle?
  A: No. Manufacturer specifications list angle measurement as not available on the CP8922 standalone model. For torque-and-angle measurement and connected reporting, review the CP8922TC Torque Check version.
• Q: What is the difference between CP8922 and CP8922TC?
  A: The CP8922 is the standalone version with digital torque measurement and operator feedback alerts. The CP8922TC is the Torque Check version and adds torque-and-angle functions such as Bluetooth communication, reporting, sequencing, and result management.
• Q: What sockets fit this torque wrench?
  A: The CP8922 uses a 3/4" square drive. Use compatible 3/4" drive sockets and extensions that match the fastener, torque value, and approved work procedure.
• Q: Is the CP8922 an air tool?
  A: No. The CP8922 is an electronic manual torque wrench. AA batteries power the display, feedback alerts, and electronics, while torque is applied manually by the operator.
