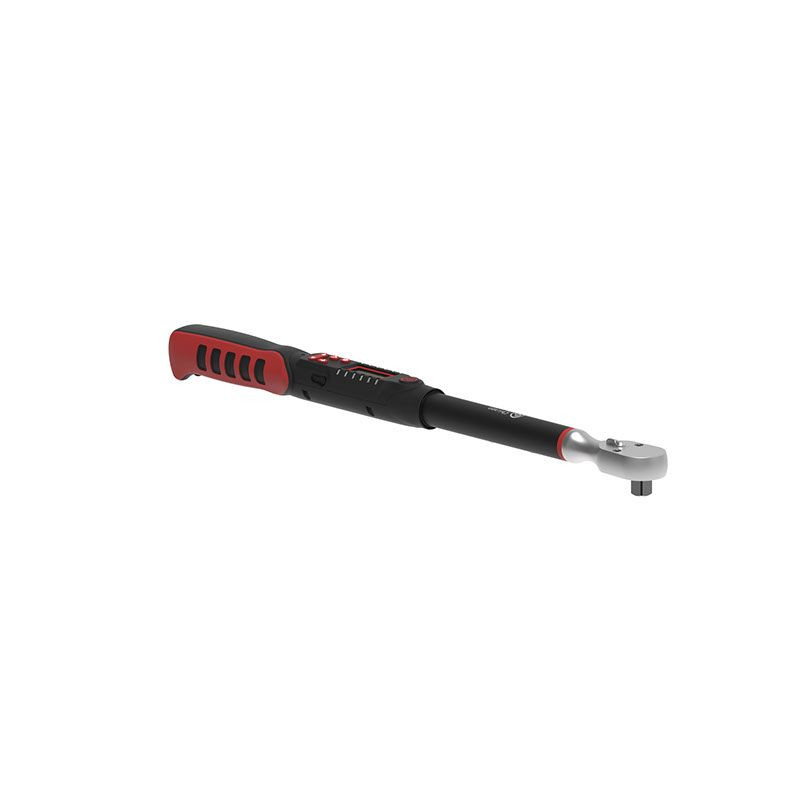

Chicago Pneumatic Electronic Torque Wrench | CP8916TC | 15-147 (ft-lbs) Torque Range | 1/2" Square Drive

Built for controlled torque-and-angle tightening with traceability, the Chicago Pneumatic CP8916TC Electronic Torque & Angle Wrench gives technicians a connected 15-147 ft-lbs / 20-200 Nm torque range in a 1/2" square drive format. The TC, or Torque Check, version adds angle measurement, P-Sets, sequencing, re-hit detection, and reporting through the CPLinQ application, helping maintenance and quality teams confirm fasteners with more process control than a standalone digital torque wrench.

The CP8916TC uses a fixed-head 72-tooth ratchet for precise clockwise torque application, while the digital LED display, acoustic buzzer, vibration alert, and progressive LED feedback help guide the operator as the target value is approached and reached. With Bluetooth communication, ±2% clockwise torque accuracy, ±2° angle accuracy, and onboard memory for up to 2,000 results, this wrench is suited for service bays, MRO teams, aviation support, energy maintenance, shipbuilding, and other inspection-focused fastening work.

Type: Electronic Torque & Angle Wrench | Model: CP8916TC | SKU: 8941089161 | Series: CP89 eTorque | Version: Torque Check | Drive Size: 1/2" | Drive Type: Square | Head Type: Fixed | Ratchet Gear Teeth: 72 | Torque Range: 15-147 ft-lbs / 20-200 Nm | Torque Accuracy: ±2% CW | Angle Measurement: Yes | Angle Accuracy: ±2° | Tightening Direction: CW Only | Overload Torque: 110% | Feedback Type: Acoustic Buzzer and 2x6 LEDs | Communication Type: Bluetooth | Results Memory Capacity: 2000 | Unit Measurement Supported: Nm, ft/lb | Compliance: ISO 6789:2017 | Type Class: Type I, Class 3 | Battery Type: AA Batteries | Autonomy: 8 hr | Lever Arm Length: 17.13" | Overall Length: 20.87" | Width: 1.73" | Height: 1.77" | Side to Center: 0.81" | Weight: 2.87 lb | Operating Temperature: 14°F to 104°F

Features:

• Torque Check configuration adds angle measurement, P-Sets, sequencing, data collection, and reporting capability through the CPLinQ application.
• 15-147 ft-lbs / 20-200 Nm torque range covers many medium-duty automotive, fleet, maintenance, and MRO fastening tasks.
• 1/2" square drive accepts compatible 1/2" drive sockets commonly used for service and inspection torque work.
• Fixed 72-tooth ratchet head supports smaller swing movement while applying torque in confined or partially obstructed work areas.
• 12 LED progressive light display gives visual feedback as the target torque or angle value is approached.
• Acoustic buzzer and strong vibration motor provide audible and tactile alerts for easier confirmation during tightening.
• Bluetooth communication supports connected workflows, including quick reports, .XLS reports, tool status management, and tool lock/finder functions.
• Soft grip, non-slip handle helps maintain control during repeated torque checks and final tightening operations.

Included Items:

• CP89 eTorque electronic torque wrench.
• USB connection cable.
• Calibration certificate.
• Molded plastic case.
• Removable foam insert.
• Safety documentation.

Applications:

• Automotive and fleet service - torque-and-angle checks on wheel, suspension, brake, chassis, and powertrain fasteners within the tool’s rated range.
• General MRO - controlled tightening on pumps, brackets, covers, guards, panels, and mechanical assemblies that require recorded torque results.
• Aviation support work - manual torque application and verification where the maintenance procedure calls for the tool’s torque range and drive size.
• Energy and utility maintenance - tightening and documenting fasteners on skids, frames, service equipment, access covers, and field-maintained assets.
• Shipbuilding and repair - torque confirmation on mechanical components, brackets, covers, and maintenance hardware where traceability is useful.

FAQs:

• Q: What makes the CP8916TC different from the CP8916?
  A: The CP8916TC is the Torque Check version. Compared with the standalone CP8916, it adds angle measurement, accuracy adjustment, P-Set library, counting sequence, data collection, quick report, .XLS report, tool status management, and tool lock/finder functions.
• Q: Does the CP8916TC measure both torque and angle?
  A: Yes. The CP8916TC measures torque from 15-147 ft-lbs / 20-200 Nm and includes angle measurement with ±2° angle accuracy.
• Q: What sockets fit this torque wrench?
  A: The CP8916TC uses a 1/2" square drive. Use compatible 1/2" drive sockets and extensions that match the fastener, torque value, and approved work procedure.
• Q: Does this wrench store results?
  A: Yes. Manufacturer data lists a results memory capacity of 2,000 results. With Bluetooth communication and CPLinQ compatibility, the Torque Check version supports reporting workflows for documented fastening.
• Q: Is this a pneumatic torque wrench?
  A: No. The CP8916TC is an electronic manual torque-and-angle wrench powered by AA batteries for the display, measurement, alerts, and connectivity functions. Torque is applied manually by the operator.
