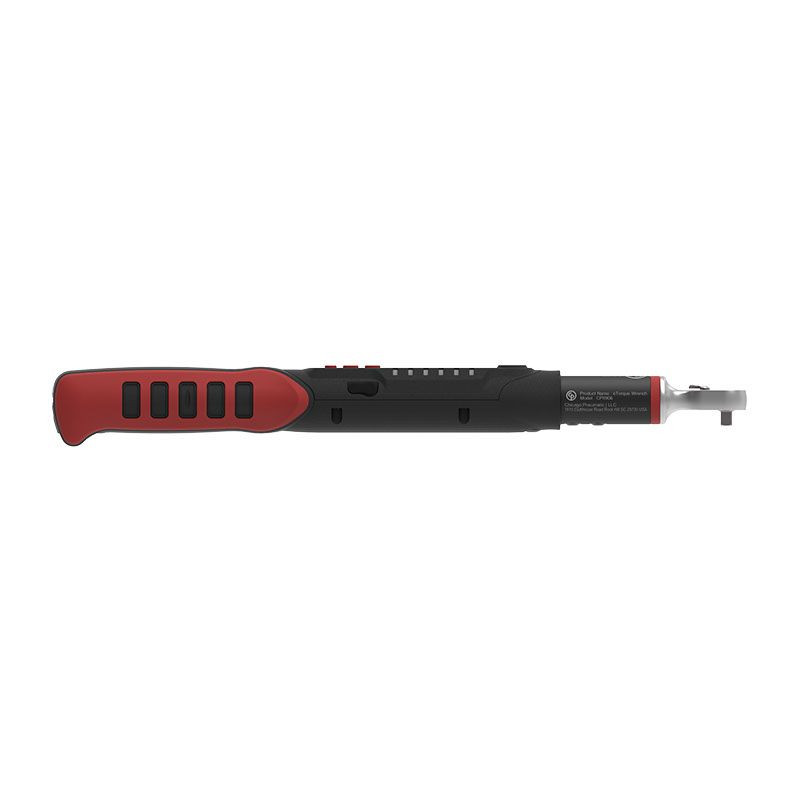

Chicago Pneumatic Electronic Torque Wrench | CP8906TC | 2-22 (ft-lbs) Torque Range | 1/4" Square Drive

Built for low-torque torque-and-angle verification with connected reporting, the Chicago Pneumatic CP8906TC Electronic Torque & Angle Wrench gives technicians a compact digital wrench with a 2-22 ft-lbs / 2-30 Nm torque range and 1/4" square drive. The TC, or Torque Check, version adds angle measurement, Bluetooth communication, P-Sets, sequencing, torque check, re-hit detection, and reporting through the CPLinQ application, helping service and quality teams document fastening results on smaller fasteners where process control matters.

The CP8906TC is suited for light mechanical assembly, inspection, maintenance, and low-torque service work where a larger torque wrench may be too bulky or too high in range. Its acoustic buzzer, strong vibration motor, and 12 LED progressive light display help guide the operator as the target torque or angle value is approached. With ±3% torque accuracy, ±2° angle accuracy, and onboard memory for up to 2,000 results, this 1/4" drive Torque Check wrench supports controlled tightening and traceability in compact fastening applications.

Type: Electronic Torque & Angle Wrench | Model: CP8906TC | SKU: 8941189061 | Series: CP89 eTorque | Version: Torque Check | Drive Size: 1/4" | Drive Type: Square | Torque Range: 2–22 ft-lbs / 2–30 Nm | Max Torque: 30 Nm | Min Torque: 1.5 Nm | Torque Accuracy: ±3% | Angle Measurement: Yes | Angle Accuracy: ±2° | Tightening Direction: CW Only | Overload Torque: 10% / 33 Nm | Feedback Type: Acoustic Buzzer and 2x6 LEDs | Communication Type: Bluetooth | Wireless Communication: Yes | Results Memory Capacity: 2000 | Curves Memory Capacity: N/A | Unit Measurement Supported: Nm, ft/lb | Quality Strategies: Yes | Compliance: ISO 6789:2017 | Type Class: Type I, Class 3 | Battery Type: AA Batteries | Autonomy: 8 hr | Lever Arm Length: 15.04" / 382 mm | Overall Length: 15.04" / 382 mm | Width: 1.73" / 44 mm | Height: 1.77" / 45 mm | Weight: 1.7 lb / 0.77 kg | Operating Temperature: -10°C to 40°C / 14°F to 104°F

Features:

• Torque Check configuration adds torque and angle measurement, P-Sets, sequencing, torque check, re-hit detection, and reporting through the CPLinQ application.
• 2-22 ft-lbs / 2-30 Nm torque range supports controlled tightening on smaller fasteners and low-torque service applications.
• 1/4" square drive accepts compatible 1/4" drive sockets commonly used for light mechanical fastening and inspection work.
• Bluetooth communication and wireless capability support connected result management and reporting workflows.
• 12 LED progressive light display gives visual feedback as the target torque or angle value is approached.
• Acoustic buzzer and strong vibration motor provide audible and tactile alerts during torque application.
• Robust gear system is rated by Chicago Pneumatic for accuracy up to 25,000 cycles.
• Soft grip, non-slip handle helps maintain control during repeated torque checks and final tightening tasks.

Included Items:

• CP89 eTorque electronic torque wrench.
• USB connection cable.
• Calibration certificate.
• Molded plastic case.
• Removable foam insert.

Applications:

• Light mechanical assembly - torque-and-angle verification on small brackets, housings, covers, and subassemblies.
• Maintenance and MRO - controlled tightening on access panels, light guards, small equipment hardware, and serviceable components.
• Automotive and powersports service - smaller fasteners on motorcycles, ATVs, interior components, light engine covers, and accessory hardware.
• Electronics and appliance support - low-torque fastening where digital feedback helps reduce overtightening risk.
• Inspection and quality checks - documenting low-torque fasteners where Bluetooth reporting and stored results are useful.

FAQs:

• Q: What makes the CP8906TC different from the CP8906?
  A: The CP8906TC is the Torque Check version. Compared with the standalone CP8906, it adds torque and angle measurement, Bluetooth communication, P-Sets, sequencing, torque check, re-hit detection, and reporting through the CPLinQ application.
• Q: What torque range does the CP8906TC cover?
  A: The CP8906TC covers 2-22 ft-lbs / 2-30 Nm. This makes it the compact 1/4" drive option in the CP89 eTorque range for smaller fasteners and low-torque applications.
• Q: Does the CP8906TC measure angle?
  A: Yes. The CP8906TC includes angle measurement with ±2° angle accuracy, making it useful for procedures that require both torque and angle confirmation.
• Q: Does this wrench store tightening results?
  A: Yes. Manufacturer data lists a results memory capacity of 2,000 results. Bluetooth communication and CPLinQ compatibility support connected reporting and result management workflows.
• Q: Is the CP8906TC an air tool?
  A: No. The CP8906TC is an electronic manual torque-and-angle wrench. AA batteries power the display, measurement, alert, memory, and communication functions, while torque is applied manually by the operator.
