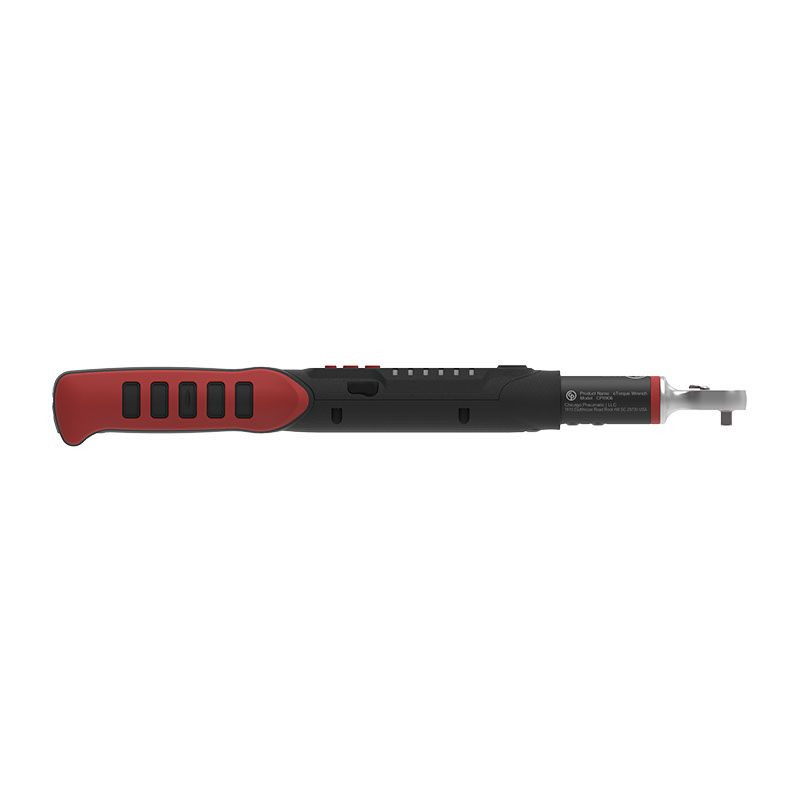

Chicago Pneumatic Electronic Torque Wrench | CP8906 | 2-22 (ft-lbs) Torque Range | 1/4" Square Drive

Built for low-torque manual fastening and inspection work, the Chicago Pneumatic CP8906 Electronic Torque Wrench gives technicians a compact digital wrench with a 2-22 ft-lbs / 2-30 Nm torque range and 1/4" square drive. This smaller-drive CP89 eTorque model is useful for controlled tightening on smaller fasteners where a larger 3/8" or 1/2" torque wrench would be too bulky or too high in range. The digital feedback system helps reduce guesswork during final torque checks, while the fixed head and slim body support service, maintenance, and assembly work in tighter areas.

The CP8906 is the standalone version, meaning it provides onboard electronic torque measurement without Bluetooth communication, angle measurement, or Torque Check reporting functions. A 12 LED progressive light display, acoustic buzzer, and vibration feedback help guide the operator as the target torque is approached. With ±3% torque accuracy, ISO 6789:2017 compliance, AA battery power, and included calibration documentation, the CP8906 is suited for technicians who need reliable digital torque confirmation in a small 1/4" drive format.

Type: Electronic Torque Wrench | Model: CP8906 | SKU: 8941189060 | Series: CP89 eTorque | Version: Standalone | Drive Size: 1/4" | Drive Type: Square | Torque Range: 2-22 ft-lbs / 2-30 Nm | Torque Accuracy: ±3% | Angle Measurement: No | Tightening Direction: CW Only | Overload Torque: 10% | Feedback Type: Acoustic Buzzer and 2x6 LEDs | Communication Type: None | Wireless Communication: No | Unit Measurement Supported: Nm, ft/lb | Compliance: ISO 6789:2017 | Type Class: Type I, Class 3 | Battery Type: AA Batteries | Autonomy: 8 hr | Lever Arm Length: 15.04" / 382 mm | Overall Length: 15.04" / 382 mm | Width: 1.73" / 44 mm | Height: 1.77" / 45 mm | Weight: 1.7 lb / 0.77 kg | Operating Temperature: -10°C to 40°C / 14°F to 104°F

Features:

• Digital torque measurement supports controlled manual tightening on smaller fasteners and low-torque service work.
• 2-22 ft-lbs / 2-30 Nm torque range suits light assembly, inspection, and maintenance tasks that require a compact torque wrench.
• 1/4" square drive fits compatible 1/4" drive sockets commonly used on smaller mechanical fasteners.
• 12 LED progressive light display gives visual feedback as the target torque value is approached.
• Acoustic buzzer and strong vibration motor provide audible and tactile alerts during torque application.
• Standalone configuration provides onboard torque measurement without Bluetooth communication or torque-angle reporting features.
• Soft grip, non-slip handle helps maintain control during repeated torque checks and final tightening work.
• Robust gear system is rated by Chicago Pneumatic for accuracy up to 25,000 cycles.

Included Items:

• CP89 eTorque electronic torque wrench.
• USB connection cable.
• Calibration certificate.
• Molded plastic case.
• Removable foam insert.

Applications:

• Light mechanical assembly - controlled tightening on small brackets, housings, covers, and subassemblies.
• Maintenance and MRO - torque checks on access panels, light guards, small equipment hardware, and serviceable components.
• Automotive and powersports service - smaller fasteners on motorcycles, ATVs, interior components, light engine covers, and accessory hardware.
• Electronics and appliance support - manual fastening where low torque and digital feedback help reduce overtightening risk.
• Inspection and quality checks - verifying low-torque fasteners where a compact 1/4" drive wrench is easier to position than a larger tool.

FAQs:

• Q: What is the CP8906 used for?
  A: The CP8906 is used for low-torque manual tightening and torque verification on smaller fasteners. Its 1/4" drive and compact torque range make it useful for light assembly, service work, and inspection tasks.
• Q: Does the CP8906 measure angle?
  A: No. Manufacturer data lists angle measurement as not available for the CP8906 standalone model. If torque-and-angle measurement or Bluetooth reporting is required, review the CP8906TC Torque Check version.
• Q: What is the difference between CP8906 and CP8906TC?
  A: The CP8906 is the standalone version with digital torque measurement and operator alerts. The CP8906TC is the Torque Check version and adds connected functions such as communication, angle measurement, and reporting features.
• Q: What sockets fit this torque wrench?
  A: The CP8906 uses a 1/4" square drive. Use compatible 1/4" drive sockets and extensions that match the fastener, torque value, and approved work procedure.
• Q: Is the CP8906 an air tool?
  A: No. The CP8906 is an electronic manual torque wrench. AA batteries power the display and alert system, while torque is applied manually by the operator.

Looking for more information about Chicago Pneumatic Electronic Torque Wrench? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Electronic Torque Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
