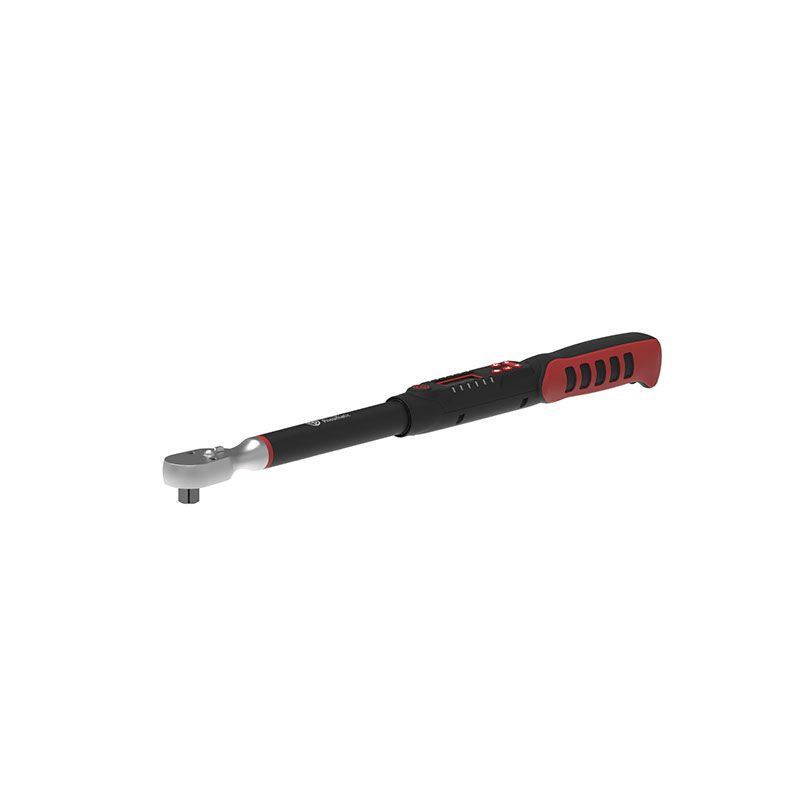

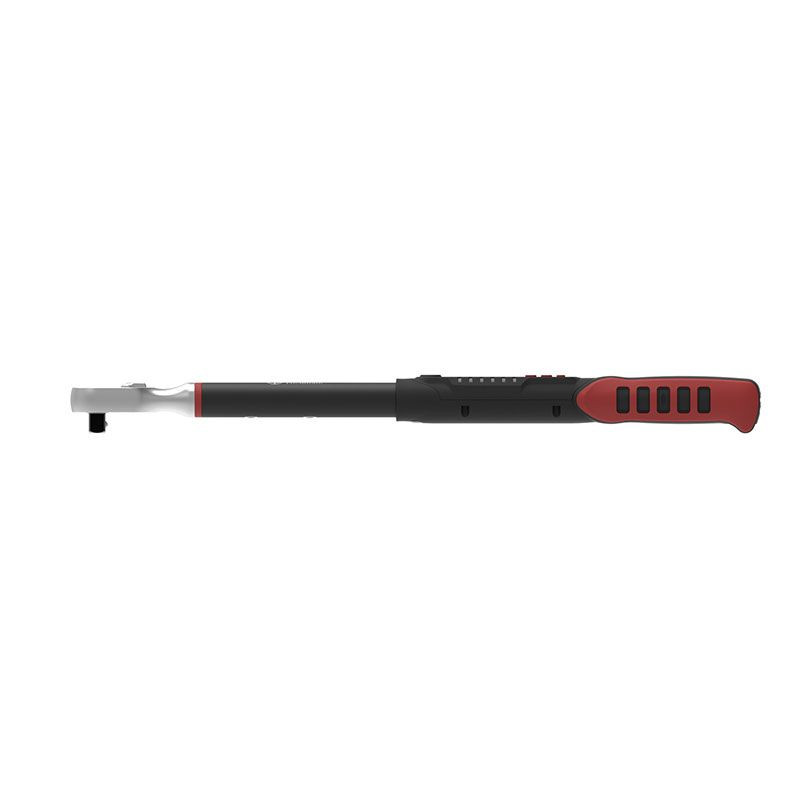

Chicago Pneumatic Electronic Torque Wrench | CP8916 | 15-147 (ft-lbs) Torque Range | 1/2" Square Drive

Built for controlled torque tightening in vehicle service, maintenance, and quality-control work, the Chicago Pneumatic CP8916 Electronic Torque Wrench gives technicians a digital 15-147 ft-lbs / 20-200 Nm torque range in a 1/2" square drive format. The fixed-head 72-tooth ratchet helps apply torque precisely in clockwise tightening, while the digital display and operator alerts help reduce guesswork during final torque checks. At 2.9 lb, the CP8916 is sized for service bays, plant maintenance teams, aviation support work, and general MRO tasks where repeatable manual torque application matters.

The CP8916 is the standalone model in the CP89 eTorque range, meaning it provides onboard torque measurement and operating alerts without the connected reporting features found on the Torque Check version. Its 12 LED progressive light display, acoustic buzzer, and vibration alert give clear feedback as the target torque is approached and reached. Delivered with a molded plastic case, USB connection cable, calibration certificate, removable foam insert, and safety documentation, this electronic torque wrench is ready for organized storage and controlled shop use.

Type: Electronic Torque Wrench | Model: CP8916 | SKU: 8941089160 | Series: CP89 eTorque | Version: Standalone | Drive Size: 1/2" | Drive Type: Square | Head Type: Fixed | Ratchet Gear Teeth: 72 | Torque Range: 15-147 ft-lbs / 20-200 Nm | Torque Accuracy: ±2% CW | Overload Torque: 110% | Angle Measurement: No | Tightening Direction: CW Only | Feedback Type: Acoustic Buzzer and 2x6 LEDs | Results Memory Capacity: 2000 | Unit Measurement Supported: Nm, ft/lb | Communication Type: None | Compliance: ISO 6789:2017 | Type Class: Type I, Class 3 | Battery Type: AA Batteries | Autonomy: 8 hr | Lever Arm Length: 435 mm | Overall Length: 530 mm | Width: 44 mm | Height: 45 mm | Side to Center: 20.5 mm | Weight: 2.9 lb / 1.3 kg | Operating Temperature: -10°C to 40°C / 14°F to 104°F

Features:

• Digital torque measurement supports controlled tightening where manual torque confirmation is required.
• 15-147 ft-lbs / 20-200 Nm working range covers many automotive, fleet, equipment, and MRO fastening tasks.
• 1/2" square drive fits compatible 1/2" drive sockets commonly used for medium-duty torque work.
• Fixed head supports precise application of torque during clockwise tightening.
• 72-tooth ratchet mechanism provides smaller swing movement for working around wheels, brackets, machinery, and service components.
• 12 LED progressive light display gives visual feedback as the target torque is approached and reached.
• Acoustic buzzer and vibration motor provide audible and tactile alerts so operators do not have to rely only on the display.
• Soft grip, non-slip handle helps maintain control during repeated torque checks and final tightening.

Included Items:

• CP89 eTorque electronic torque wrench.
• USB connection cable.
• Calibration certificate.
• Molded plastic case.
• Removable foam insert.
• Safety documentation.

Applications:

• Automotive and fleet service - final torque checks on wheel, suspension, brake, engine, and chassis fasteners within the tool's rated range.
• General MRO - controlled tightening on pumps, guards, brackets, covers, and serviceable plant equipment components.
• Aviation support work - manual torque application on approved maintenance tasks where the required torque range and tool specification match the procedure.
• Energy and utility maintenance - fastening checks on skids, frames, panels, service hardware, and mechanical assemblies.
• Shipbuilding and repair - controlled torque work on mechanical components, brackets, access covers, and maintenance hardware.

FAQs:

• Q: What is the torque range of the CP8916?
  A: The CP8916 covers 15-147 ft-lbs / 20-200 Nm. This makes it useful for many medium-duty fastening and torque verification tasks in automotive, fleet, maintenance, and MRO environments.
• Q: Does the CP8916 measure angle?
  A: No. Manufacturer data for the CP8916 standalone model lists angle measurement as not available. If angle measurement and connected reporting are required, review the CP8916TC Torque Check version before ordering.
• Q: What is the difference between CP8916 and CP8916TC?
  A: The CP8916 is the standalone version with digital display, torque measurement, and operating alerts. The CP8916TC adds Torque Check version features such as angle measurement, P-set library, counting sequence, data collection, reporting, tool status management, and tool lock/finder functions.
• Q: What sockets fit this torque wrench?
  A: The CP8916 uses a 1/2" square drive. Use compatible 1/2" drive sockets and extensions that are appropriate for the fastener, torque value, and work procedure.
• Q: Is this an air tool?
  A: No. The CP8916 is an electronic manual torque wrench, not a pneumatic tool. It uses AA batteries for the electronic display and alert system while torque is applied manually by the operator.
