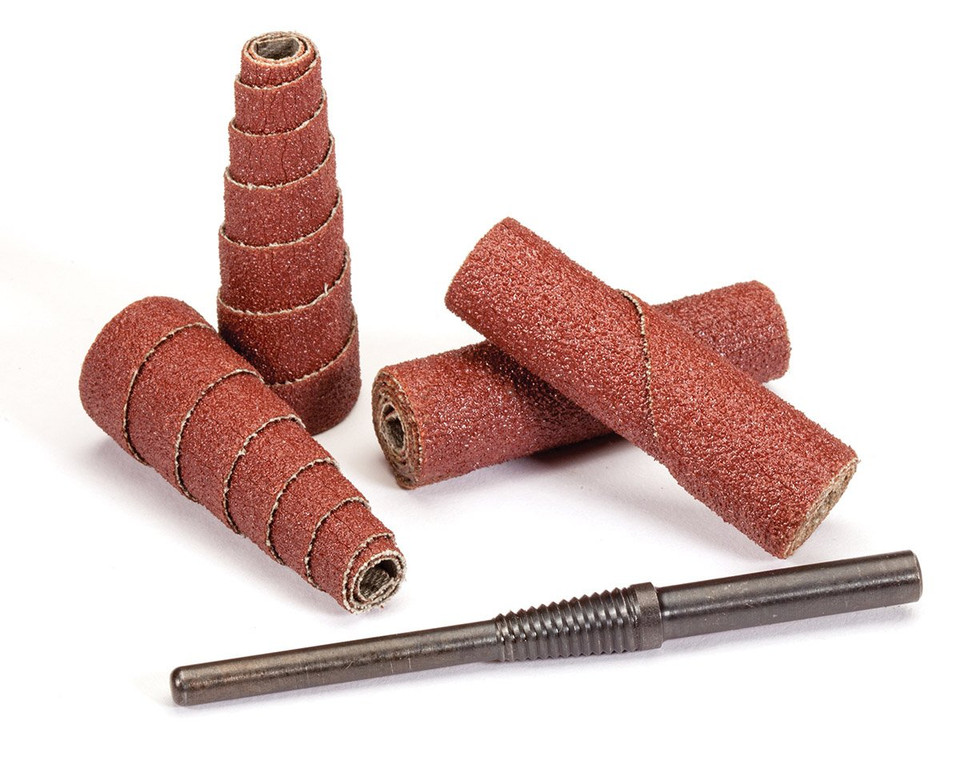

United Abrasives Cartridge Roll Mandrel | 95106 | 1/4" Shank Diameter | 1-1/2" Pilot Length

For securing cartridge rolls used in recessed metal finishing and deburring operations, the United Abrasives 95106 Cartridge Roll Mandrel provides a mounting solution for compatible straight and full taper cartridge rolls. Featuring a 1/4" shank diameter, 3/16" pilot diameter, and 1-1/2" pilot length, this mandrel connects correctly sized abrasive rolls to a die grinder equipped with a matching collet. The pilot is the projecting section that supports the cartridge roll, while the shank is secured in the grinder. Its dimensions make it suitable for selected cartridge rolls used to finish grooves, internal contours, machined edges, and difficult-to-access metal surfaces.

United Abrasives specifies the 95106 mandrel for selected 2" long cartridge rolls with 3/16" arbor holes, including 1/2" and 3/4" diameter straight configurations and compatible tapered rolls. The 1-1/2" pilot length distinguishes this model from the shorter 95107 mandrel, which uses a 1" pilot with the same pilot and shank diameters. Choosing the manufacturer-recommended mandrel helps establish the correct mounting arrangement for abrasive finishing operations. Supplied as one mandrel per unit, the 95106 serves as a replacement or additional accessory for fabrication shops, machining facilities, and maintenance departments.

Type: Cartridge Roll Mandrel | Part Number: 95106 | Pilot Diameter: 3/16" | Pilot Length: 1-1/2" | Shank Diameter: 1/4" | Compatible Abrasive Types: Straight and Full Taper Cartridge Rolls | Quantity: 1 Mandrel

Features:

• Mounting accessory for compatible straight and full taper cartridge rolls used in abrasive metal finishing.
• 3/16" pilot diameter matches cartridge rolls with the corresponding arbor hole and manufacturer-specified mounting requirements.
• 1-1/2" pilot length accommodates selected 2" long cartridge rolls requiring this mounting configuration.
• 1/4" shank diameter allows installation in a suitable die grinder equipped with a matching collet.
• Manufacturer-recommended for selected 1/2" and 3/4" diameter straight cartridge rolls and corresponding full taper configurations.
• Removable cartridge roll mounting arrangement permits abrasive replacement while retaining the correctly sized mandrel.
• Available individually for replacement needs, additional grinder setups, and workshop abrasive accessory inventory.

Applications:

• Metal fabrication - Mounting compatible cartridge rolls for localized sanding, edge blending, and deburring of fabricated steel components.
• Machine shops - Supporting abrasives used to finish machined grooves, internal contours, and recessed metal surfaces.
• Welding and surface preparation - Holding correctly sized cartridge rolls for smoothing accessible weld transitions and surrounding metal features.
• Tool and die manufacturing - Preparing die grinders for detailed abrasive finishing of contours, recesses, and small component features.
• Industrial maintenance and repair - Replacing cartridge roll mandrels used during metal component refurbishment and routine equipment servicing.

FAQs:

• Q: Which United Abrasives cartridge rolls are compatible with mandrel 95106?
  A: The United Abrasives catalog identifies mandrel 95106 for selected 2" long straight cartridge rolls with 3/16" arbor holes, including part numbers 38087, 38088, 38089, 38119, 38120, 38121, and 38122. It is also specified for tapered cartridge rolls 38344, 38345, and 38346. Always verify the recommended mandrel for the exact abrasive part number before installation.
• Q: What is the difference between United Abrasives mandrels 95106 and 95107?
  A: Both mandrels have a 3/16" pilot diameter and 1/4" shank diameter. Model 95106 features a 1-1/2" pilot length, while model 95107 has a shorter 1" pilot. The appropriate model depends on the cartridge roll's specified mounting requirements.
• Q: Can the 95106 mandrel be used with United Abrasives tapered cartridge rolls 38344, 38345, and 38346?
  A: Yes. These tapered cartridge rolls have a 3/4" base diameter, 2" length, and 3/16" arbor hole, and the manufacturer's catalog specifies mandrel 95106 for mounting them. Select the appropriate grit based on the required material removal and surface finish.
• Q: Will the 95106 fit a die grinder with a 1/4" collet?
  A: The mandrel has a 1/4" shank diameter and is dimensionally suitable for a compatible 1/4" collet. Confirm that the collet securely holds the mandrel and that the tool, mandrel, and abrasive meet the applicable operating speed requirements.
• Q: Does United Abrasives 95106 come with cartridge rolls?
  A: The manufacturer lists part number 95106 as one cartridge roll mandrel. Abrasive cartridge rolls are separate products and must be selected according to their dimensions, grit, and specified mandrel compatibility.
