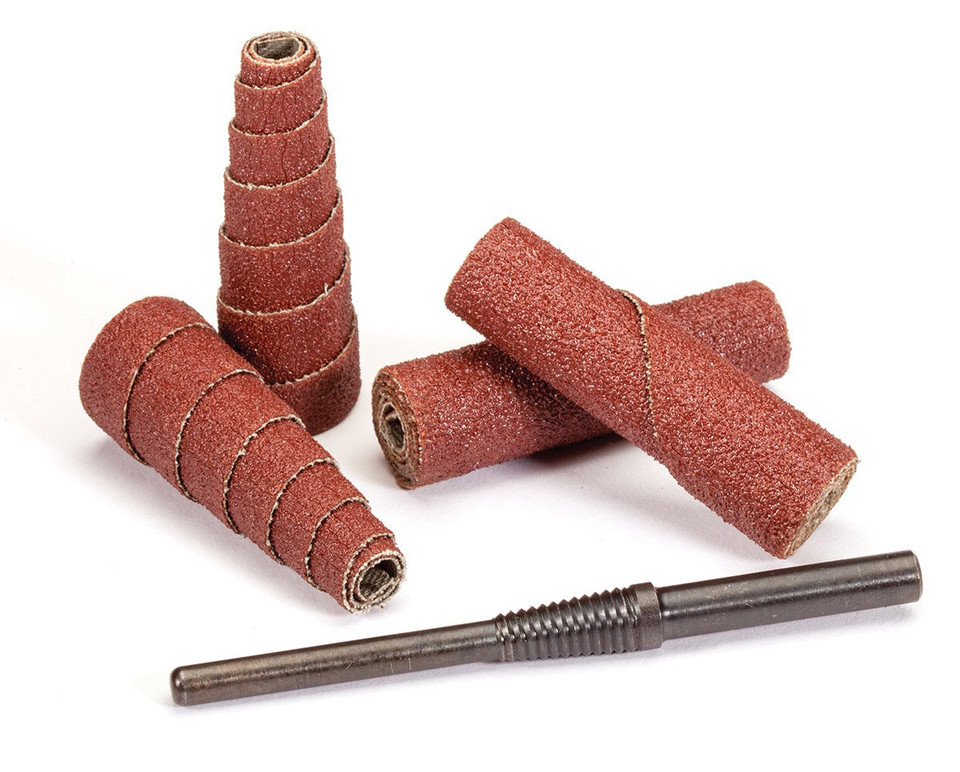

United Abrasives Cartridge Roll Mandrel | 95102 | 1/4" Shank Diameter | 1" Pilot Length

For mounting abrasive cartridge rolls during metal deburring, sanding, and surface finishing, the United Abrasives 95102 Cartridge Roll Mandrel provides a practical connection between compatible abrasive rolls and die grinders. Featuring a 1/4" shank diameter, 1/4" pilot diameter, and 1" pilot length, this mandrel is intended for straight and full taper cartridge rolls requiring the corresponding mounting dimensions. The pilot is the portion of the mandrel that fits inside and supports the abrasive roll, while the shank is held in the grinder's collet. Its shorter pilot configuration distinguishes it from longer mandrels in the United Abrasives range, allowing buyers to select the appropriate mounting accessory for their cartridge roll dimensions.

The United Abrasives 95102 is specified in the manufacturer's catalog for selected 1" diameter x 1-1/2" length straight cartridge rolls, including part numbers 38126, 38127, and 38128. Its 1/4" shank accommodates a suitably sized die grinder collet, while the 1" pilot provides the specified mounting length for these abrasive configurations. Correct mandrel selection helps establish a secure mounting arrangement when working on machined edges, recessed surfaces, and localized metal features. Supplied as 1 mandrel per unit, the 95102 is a useful replacement or additional accessory for machine shops, fabrication operations, and maintenance departments that regularly work with cartridge rolls.

Type: Cartridge Roll Mandrel | Part Number: 95102 | Pilot Diameter: 1/4" | Pilot Length: 1" | Shank Diameter: 1/4" | Compatible Abrasive Types: Straight and Full Taper Cartridge Rolls | Quantity: 1 Mandrel

Features:

• Cartridge roll mounting accessory intended for use with compatible straight and full taper abrasive rolls.
• 1/4" pilot diameter provides the specified mounting size for cartridge rolls with corresponding arbor dimensions.
• 1" pilot length accommodates selected cartridge roll configurations requiring a shorter mounting pilot.
• 1/4" shank diameter supports installation in a die grinder equipped with a compatible collet.
• Manufacturer-specified for selected 1" diameter x 1-1/2" length straight cartridge rolls, including part numbers 38126, 38127, and 38128.
• Allows compatible worn cartridge rolls to be removed and replaced while retaining the correctly sized mandrel.
• Available individually for replacing an existing mandrel or equipping an additional die grinder setup.

Applications:

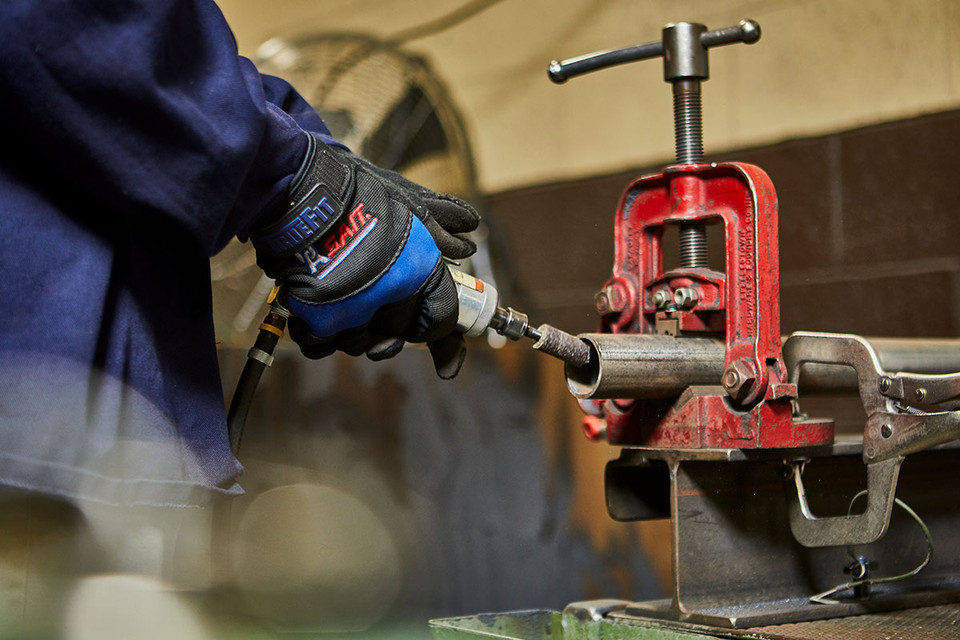

• Machine shops and precision machining - Mounting compatible cartridge rolls for removing burrs and finishing machined contours, grooves, and internal surfaces.
• Metal fabrication - Supporting abrasive rolls used to smooth fabricated edges, blend surface irregularities, and perform localized metal finishing.
• Welding and repair workshops - Holding correctly sized cartridge rolls for refining accessible weld transitions and preparing metal surfaces.
• Industrial maintenance and MRO - Replacing cartridge roll mounting accessories used during mechanical component servicing and equipment refurbishment.
• Toolrooms and general workshops - Setting up compatible die grinders for small-area sanding, contour finishing, and routine deburring operations.

FAQs:

• Q: Which United Abrasives cartridge rolls are specified for mandrel 95102?
  A: The United Abrasives catalog identifies mandrel 95102 for straight cartridge roll part numbers 38126 (60 grit), 38127 (80 grit), and 38128 (120 grit). These rolls have a 1" base diameter, 1-1/2" length, and 1/4" arbor hole. Always check the manufacturer's mandrel recommendation before using another cartridge roll.
• Q: What is the difference between United Abrasives mandrels 95101 and 95102?
  A: Both models feature a 1/4" pilot diameter and 1/4" shank diameter. The difference is pilot length: model 95101 has a 1-1/2" pilot, while model 95102 has a shorter 1" pilot. The appropriate choice depends on the mounting requirements of the specific abrasive cartridge roll.
• Q: Can the 95102 mandrel be installed in a 1/4" die grinder collet?
  A: The 95102 has a 1/4" shank, making it dimensionally compatible with a suitable 1/4" collet. Confirm that the die grinder securely accepts the mandrel and that the complete assembly meets the manufacturer's operating and speed requirements.
• Q: Is mandrel 95102 suitable for the 3/4" tapered cartridge rolls 38344, 38345, and 38346?
  A: No. Those tapered cartridge rolls have a 3/16" arbor hole and are specified for mandrel 95106. The 95102 has a 1/4" pilot diameter, so it is not the correct mounting accessory for those models.
• Q: Are abrasive cartridge rolls supplied with United Abrasives 95102?
  A: The manufacturer lists part number 95102 with a quantity of one mandrel. Cartridge rolls are separate abrasive products and should be selected according to their specified arbor dimensions and recommended mandrel.
