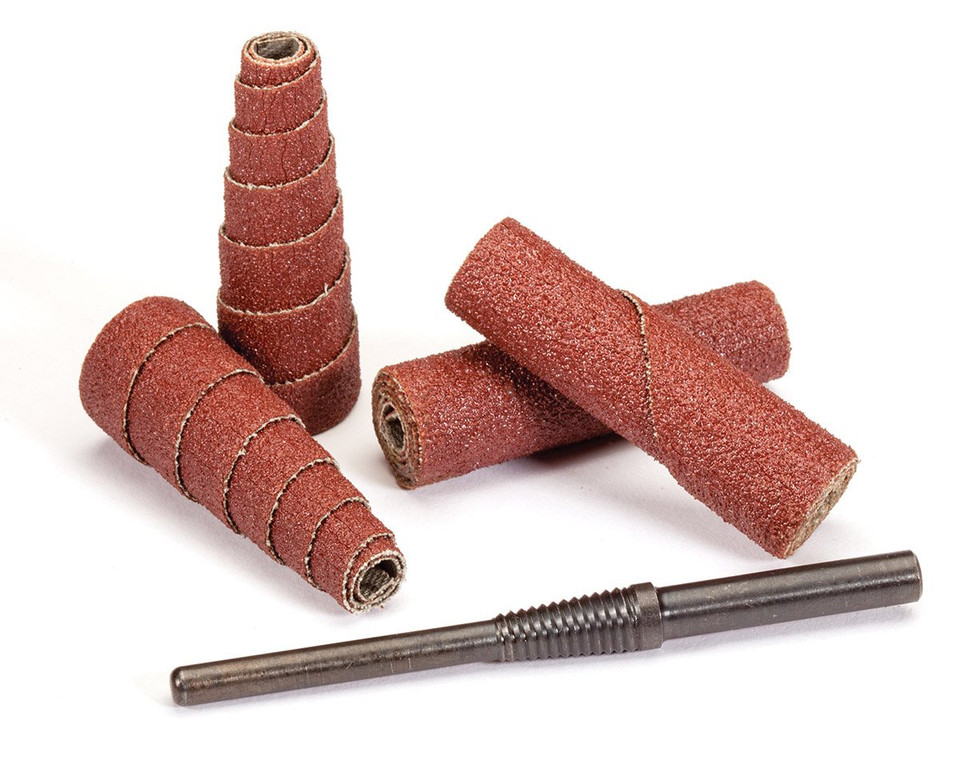

United Abrasives Cartridge Roll Mandrel | 95104 | 1/4" Shank Diameter | 1" Pilot Length

For detailed sanding and deburring work that requires securely mounted cartridge rolls, the United Abrasives 95104 Cartridge Roll Mandrel provides a mounting solution for compatible straight and full taper abrasive rolls. Featuring a 1/4" shank diameter, 1/8" pilot diameter, and 1" pilot length, this accessory connects the abrasive roll to a properly sized die grinder collet. The pilot is the portion of the mandrel that supports the cartridge roll, while the shank is secured in the tool. Its compact pilot configuration accommodates selected cartridge rolls used for finishing grooves, recessed surfaces, machined edges, and other confined metalworking features.

The United Abrasives 95104 is identified in the manufacturer's catalog for selected 1/4" and 3/8" diameter, 1-1/2" long straight cartridge rolls with matching arbor holes. Unlike model 95103, which has a 1-1/2" pilot length, the 95104 features a shorter 1" pilot for the corresponding abrasive configurations. This dimensional distinction is important when choosing replacement mounting accessories. Supplied as one mandrel per unit, the 95104 supports machine shops, fabrication facilities, and maintenance workshops that use cartridge rolls for localized metal finishing.

Type: Cartridge Roll Mandrel | Part Number: 95104 | Pilot Diameter: 1/8" | Pilot Length: 1" | Shank Diameter: 1/4" | Compatible Abrasive Types: Straight and Full Taper Cartridge Rolls | Quantity: 1 Mandrel

Features:

• Cartridge roll mandrel provides a mounting connection for compatible straight and full taper abrasive rolls.
• 1/8" pilot diameter accommodates cartridge rolls with corresponding arbor dimensions.
• 1" pilot length matches the mounting requirements of selected 1-1/2" long cartridge rolls.
• 1/4" shank diameter permits installation in die grinders equipped with a compatible collet.
• Manufacturer-specified for selected straight cartridge rolls, including part numbers 38014, 38015, 38017, 38019, 38047, 38048, 38049, and 38051.
• Removable mounting configuration allows compatible worn cartridge rolls to be replaced while retaining the mandrel.
• Sold individually for replacing an existing mandrel or equipping an additional abrasive finishing setup.

Applications:

• Precision machining - Mounting cartridge rolls for deburring small machined openings, grooves, and internal contours.
• Metal fabrication - Supporting abrasive rolls used for localized sanding and blending of fabricated metal components.
• Toolroom operations - Equipping compatible die grinders for detailed finishing around recessed edges and narrow surfaces.
• Welding and surface preparation - Holding correctly sized cartridge rolls for refining accessible weld transitions and surrounding metal surfaces.
• Industrial maintenance and repair - Replacing worn or misplaced mandrels used for routine component finishing and refurbishment.

FAQs:

• Q: Which United Abrasives cartridge rolls are compatible with mandrel 95104?
  A: The United Abrasives catalog specifies 95104 for selected 1/4" and 3/8" diameter straight cartridge rolls with a 1-1/2" length and 1/8" arbor hole. Examples include part numbers 38014, 38015, 38017, 38019, 38047, 38048, 38049, and 38051. Check the catalog recommendation for other roll configurations.
• Q: How is the 95104 different from the 95103 mandrel?
  A: Both mandrels have a 1/8" pilot diameter and 1/4" shank diameter. Model 95104 has a 1" pilot length, while model 95103 has a 1-1/2" pilot length. Choose the model specified for the cartridge roll being mounted.
• Q: Can this mandrel be used with a 1/4" collet die grinder?
  A: The 95104 features a 1/4" shank for use with a compatible 1/4" collet. Verify proper clamping, mandrel fit, and operating speed compatibility before use.
• Q: Does United Abrasives 95104 include abrasive cartridge rolls?
  A: No cartridge rolls are listed as part of this product. The manufacturer's stated quantity is one mandrel, and compatible abrasive rolls are selected separately.
