United Abrasives Cartridge Roll Mandrel | 95105 | 1/4" Shank Diameter | 3/4" Pilot Length

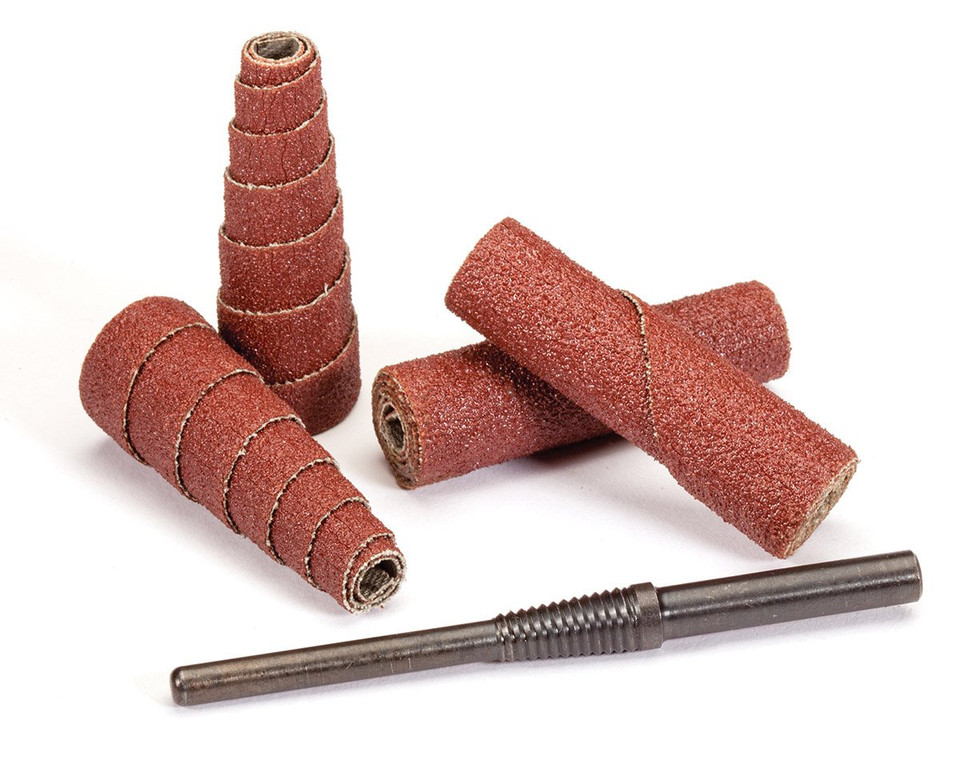

For finishing narrow grooves, small openings, and recessed metal surfaces with cartridge roll abrasives, the United Abrasives 95105 Cartridge Roll Mandrel provides a compact mounting solution for compatible straight and full taper cartridge rolls. Featuring a 1/4" shank diameter, 1/8" pilot diameter, and 3/4" pilot length, this accessory connects appropriately sized abrasive rolls to a die grinder equipped with a matching collet. The pilot is the projecting section that supports the cartridge roll, while the shank is secured in the grinder. Its shorter pilot length makes this configuration suitable for cartridge rolls requiring a compact mounting arrangement during detailed deburring, sanding, and metal finishing.

The United Abrasives 95105 differs from other mandrels in the manufacturer's range through its 3/4" pilot length, while retaining the 1/8" pilot diameter found on models 95103 and 95104. This distinction helps buyers select the mounting accessory that corresponds to their cartridge roll's arbor hole and required support length. Proper dimensional matching is important when preparing abrasive tools for finishing machined features, blending metal edges, and accessing confined surfaces. Supplied as one mandrel per unit, the 95105 provides a replacement or additional mounting accessory for workshops using compatible cartridge rolls.

Type: Cartridge Roll Mandrel | Part Number: 95105 | Pilot Diameter: 1/8" | Pilot Length: 3/4" | Shank Diameter: 1/4" | Compatible Abrasive Types: Straight and Full Taper Cartridge Rolls | Quantity: 1 Mandrel

Features:

• Cartridge roll mandrel provides a mounting connection for compatible straight and full taper abrasive cartridge rolls.
• 3/4" pilot length offers a shorter mounting configuration than the 1" and 1-1/2" pilot alternatives in the United Abrasives range.
• 1/8" pilot diameter accommodates cartridge rolls with matching arbor hole dimensions and manufacturer-approved mounting requirements.
• 1/4" shank diameter allows installation in a die grinder equipped with a correctly sized collet.
• Compact pilot configuration supports properly matched cartridge rolls used for localized sanding and detailed metal finishing.
• Removable mounting arrangement allows compatible worn abrasive rolls to be replaced while retaining the mandrel.
• Sold individually for replacement needs, additional grinder setups, and abrasive accessory inventory.

Applications:

• Precision machining - Mounting compatible cartridge rolls for deburring machined grooves, small openings, and recessed metal contours.
• Metal fabrication - Supporting appropriately sized abrasives for smoothing edges and refining localized surface irregularities.
• Tool and die workshops - Preparing die grinders for detail sanding and finishing of accessible internal features and small metal components.
• Welding and metal repair - Holding compatible abrasive rolls for blending confined areas and preparing metal surfaces during component rework.
• Industrial maintenance and MRO - Replacing cartridge roll mounting accessories used for equipment servicing, component refurbishment, and routine metal finishing.

FAQs:

• Q: What is the United Abrasives 95105 Cartridge Roll Mandrel used for?
  A: The 95105 is a mounting accessory for compatible straight and full taper cartridge rolls. It connects the abrasive roll to a suitable die grinder so the abrasive can be used for deburring, blending, and finishing metal surfaces. The mandrel is not an abrasive by itself.
• Q: How does the 95105 differ from the 95103 and 95104 mandrels?
  A: All three mandrels have a 1/8" pilot diameter and 1/4" shank diameter. Their pilot lengths differ: 95103 measures 1-1/2", 95104 measures 1", and 95105 measures 3/4". Select the mandrel specified for the particular cartridge roll rather than choosing solely by shank size.
• Q: Will mandrel 95105 fit a die grinder with a 1/4" collet?
  A: The 95105 has a 1/4" shank diameter, making it dimensionally suitable for a compatible 1/4" collet. Confirm secure installation, the tool manufacturer's mounting requirements, and the operating speed limits of the assembled equipment before use.
• Q: Can the 95105 be used with any cartridge roll that has a 1/8" arbor hole?
  A: Not automatically. In addition to the 1/8" arbor hole, the cartridge roll must be suitable for the mandrel's 3/4" pilot length and approved mounting arrangement. Check the manufacturer's recommended mandrel for the exact abrasive part number.
• Q: Are abrasive cartridge rolls included with the 95105 mandrel?
  A: The manufacturer lists a quantity of one mandrel for part number 95105. Cartridge rolls are separate abrasive products and should be selected according to their specified mounting requirements.
