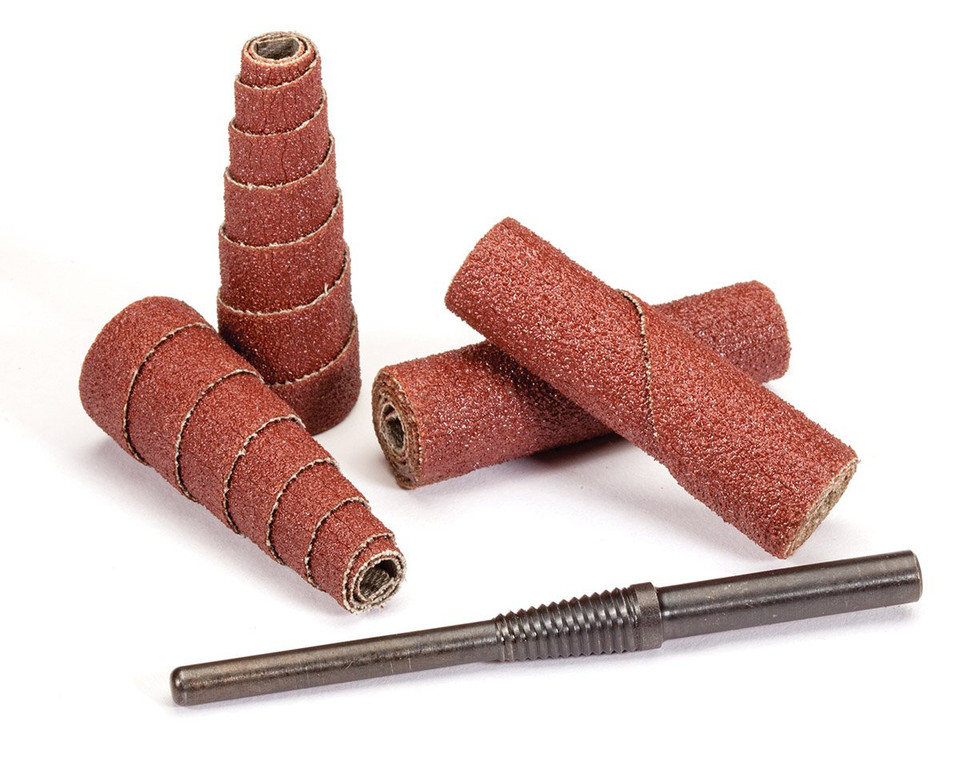

United Abrasives Cartridge Roll Mandrel | 95101 | 1/4" Shank Diameter | 1-1/2" Pilot Length

Secure mounting is essential when using cartridge rolls for deburring, blending, and finishing metal surfaces. The United Abrasives 95101 Cartridge Roll Mandrel provides a mounting accessory for straight and full taper cartridge rolls used in metalworking and surface preparation. Featuring a 1/4" shank diameter, 1/4" pilot diameter, and 1-1/2" pilot length, this mandrel is intended for cartridge rolls with a matching arbor size and suitable length. The pilot is the portion of the mandrel that supports the abrasive roll, while the shank is secured in the tool's collet. This configuration allows operators to use compatible cartridge rolls for sanding recessed surfaces, removing burrs, and refining metal components.

United Abrasives identifies the 95101 mandrel for selected straight and full taper cartridge rolls, including specific 1" diameter by 2" length configurations listed in its catalog. Its 1/4" shank fits a suitably sized die grinder collet, while the 1-1/2" pilot provides the specified mounting length for the corresponding abrasive roll. Selecting the correct mandrel helps ensure proper abrasive fit and secure installation during grinding and finishing operations. This part is listed as a single mandrel, making it a replacement or additional mounting accessory for machine shops, fabrication facilities, and maintenance workshops using compatible cartridge rolls.

Type: Cartridge Roll Mandrel | Part Number: 95101 | Pilot Diameter: 1/4" | Pilot Length: 1-1/2" | Shank Diameter: 1/4" | Compatible Abrasive Types: Straight and Full Taper Cartridge Rolls | Quantity: 1 Mandrel

Features:

• Cartridge roll mandrel provides a mounting accessory for compatible straight and full taper abrasive cartridge rolls.
• 1/4" pilot diameter accommodates cartridge rolls specified for the corresponding arbor size.
• 1-1/2" pilot length supports the mounting requirements of selected cartridge roll configurations.
• 1/4" shank diameter allows installation in a die grinder equipped with a matching collet.
• Manufacturer-listed compatibility helps simplify mandrel selection when purchasing replacement cartridge rolls.
• Removable mounting accessory allows operators to replace worn cartridge rolls while retaining a suitable mandrel.
• Supplied individually for replacement, additional tool setups, or workshop abrasive accessory inventory.

Applications:

• Metal fabrication shops - Mounting compatible cartridge rolls for deburring fabricated components, blending edges, and localized abrasive finishing.
• Machine shops - Supporting abrasive rolls used to finish machined recesses, internal contours, channels, and other difficult-to-access surfaces.
• Welding and surface preparation - Holding compatible cartridge rolls for refining weld transitions and smoothing localized metal features.
• Industrial maintenance and repair - Replacing or adding cartridge roll mandrels for equipment servicing and metal component rework.
• Workshop and toolroom operations - Equipping die grinders with appropriately sized mandrels for detailed sanding and finishing tasks.

FAQs:

• Q: What is the United Abrasives 95101 Cartridge Roll Mandrel used for?
  A: The 95101 holds compatible straight and full taper cartridge rolls for use with a suitable die grinder. It allows the abrasive roll to be mounted for deburring, sanding, blending, and finishing metal surfaces. The mandrel itself does not contain abrasive material.
• Q: What cartridge roll sizes are compatible with mandrel 95101?
  A: The mandrel has a 1/4" pilot diameter and 1-1/2" pilot length. The United Abrasives catalog identifies it for selected 1" diameter by 2" length straight cartridge rolls, including part numbers 38132, 38133, and 38134. Always confirm the specific cartridge roll's recommended mandrel rather than selecting by outside diameter alone.
• Q: Can I use mandrel 95101 with United Abrasives tapered cartridge rolls 38344, 38345, or 38346?
  A: No. Those tapered cartridge rolls have a 3/16" arbor hole and are specified for United Abrasives mandrel 95106. The 95101 has a larger 1/4" pilot diameter and is not the correct mounting accessory for those models.
• Q: Will the 95101 fit a die grinder with a 1/4" collet?
  A: The mandrel has a 1/4" shank diameter, so it is dimensionally suited to a compatible 1/4" collet. Verify the tool manufacturer's mounting instructions, permitted accessories, and operating speed requirements before use.
• Q: Does United Abrasives 95101 include cartridge rolls?
  A: The manufacturer lists part number 95101 as one cartridge roll mandrel. Abrasive cartridge rolls are separate products and should be selected according to their specified arbor dimensions and recommended mandrel part numbers.
