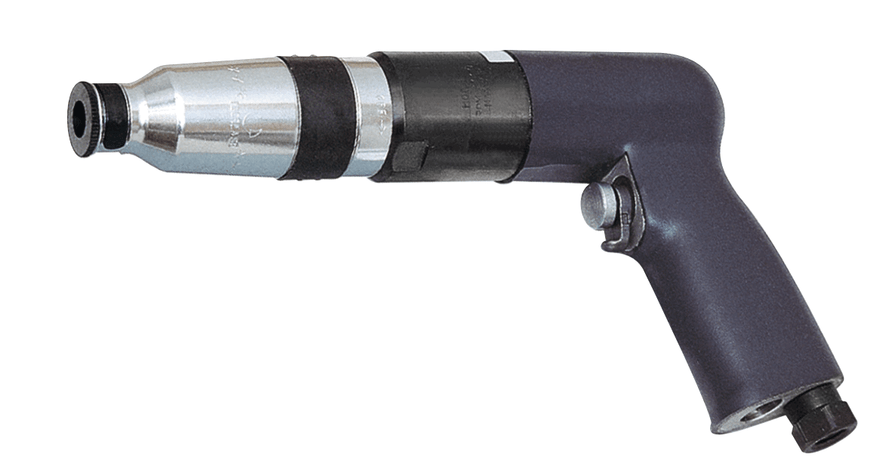

Ingersoll Rand 41PA24PSQ4 Pneumatic Screwdriver is designed for high-speed, controlled fastening in repetitive assembly applications. This 2,400 RPM pneumatic screwdriver features an adjustable shut-off clutch with a 15–40 in-lb torque range, allowing the fastening torque to be adjusted to suit the application. Its push-to-start operation provides convenient activation during repetitive fastening, while the pistol-grip configuration provides a practical format for production assembly work.
The 41PA24PSQ4 is suited to applications where rapid fastener rundown and controlled torque are both important. The adjustable shut-off clutch helps provide consistent fastening within the specified torque range, while push-to-start actuation allows the operator to activate the tool by applying the driver to the fastener.
Type: Pneumatic Screwdriver | Series: 41 Series | Grip Style: Pistol | Actuation: Push-to-Start | Free Speed: 2,400 RPM | Torque Range: 15–40 in-lb | Clutch Type: Adjustable Shut-Off Clutch
|
Feature:
|
 |
Made in USA:
Applications:
- High-speed production assembly.
- Precision fastening of plastic components.
- Composite component assembly.
- Light-duty metal fastening within the specified torque range.
- Repetitive fastening operations where push-to-start operation and adjustable shut-off torque are required.
FAQs:
- Q: What is the torque range of the 41PA24PSQ4?
A: The specified torque range is 15–40 in-lb. - Q: What is the free speed of this pneumatic screwdriver?
A: The specified free speed is 2,400 RPM. - Q: What does push-to-start mean?

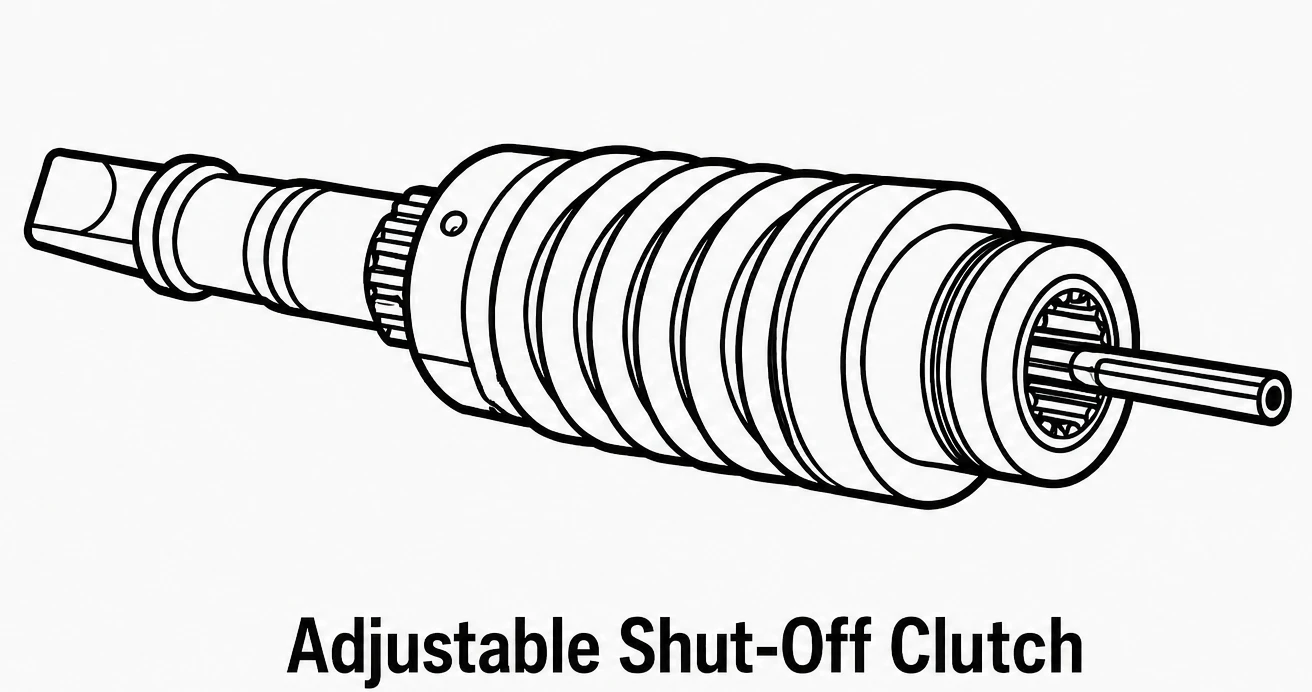

A: Push-to-start actuation starts the screwdriver when the driver is pushed against the fastener, providing convenient activation for repetitive assembly operations. - Q: What does the adjustable shut-off clutch do?
A: It allows the fastening torque to be adjusted for the application and provides shut-off operation when the selected fastening condition is reached. - Q: What types of applications suit this screwdriver?
A: The 41PA24PSQ4 is suited to compatible production fastening applications involving plastics, composites, and metals when the required torque falls within its 15–40 in-lb range.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Trigger Start | |||||||||
| 41PA24TSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Push-To-Start | |||||||||
| 41PA24PSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Trigger + Push-To-Start | |||||||||
| 41PA16TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.0 (1.36) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the Ingersoll Rand Screwdrivers proper for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Screwdriver
- Grip Style
- Pistol
- Actuation
- Push to Start
- Torque Range (nm)
- 1.7 - 4.5
- Torque Range (in-lbs)
- 15 - 40
- RPM
- 2400
- Length (in.)
- 9.4
- Length (mm)
- 239
- Side to Center (mm)
- 22
- Side to Center (in.)
- 0.9
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 78
- Inlet Location
- Std
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 28
- Air Consumption (l/mn)
- 790
