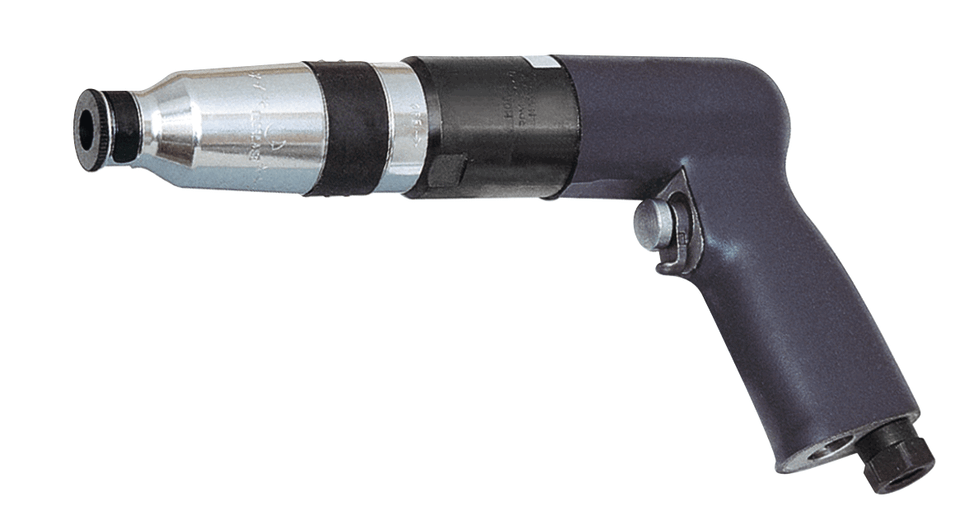

Ingersoll Rand 41PA8PSQ4 Pneumatic Screwdriver is designed for repetitive fastening applications where precise torque control and dependable shut-off performance are required. This 800 RPM pistol-grip screwdriver uses a push-to-start actuation system and an adjustable shut-off clutch with a maximum specified torque range of 15–100 in-lbs, depending on clutch setting. Its balanced design, comfortable grip, and quick shut-off make it well suited for fastening plastics, composites, and metals in production environments.
The 41PA8PSQ4 combines adjustable torque control with a 1/4" hex quick-change drive for efficient bit changes. Its one-handed reverse lever provides convenient directional control, while the adjustable shut-off clutch and quick shut-off help support precise fastening and reduced air consumption. The tool operates at 28 CFM air consumption through a 1/4" NPT air inlet and produces a published 78 dBA sound level.
Type: Pneumatic Screwdriver | Series: 41 Series | Grip Style: Pistol | Actuation: Push to Start | Torque Range: 15–100 in-lbs | Free Speed: 800 RPM | Drive Size: 1/4" | Drive Type: Hex Quick Change | Air Inlet: 1/4" NPT | Air Consumption: 28 CFM | Sound Level: 78 dBA | Length: 9.8" | Side-to-Center: 0.9" | Weight: 3.1 lb
|
Feature:
|
 |
Made in USA:
Applications:
- Production fastening of plastic components.
- Assembly of composite components.
- Metal fastening applications requiring controlled torque.
- Repetitive assembly-line fastening where push-to-start operation is preferred.
- Applications requiring adjustable shut-off torque and quick tool response.
FAQs:
- Q: What is the torque range of the 41PA8PSQ4?
A: The model is specified with a maximum adjustable torque range of 15–100 in-lbs. The manufacturer's 41 Series specifications identify different torque ranges according to clutch configuration, including 15–40, 25–60, and 35–100 in-lbs. - Q: What does push-to-start mean?
A: Push-to-start actuation starts the screwdriver when the driver is pressed against the fastener, which can be convenient for repetitive assembly operations. - Q: What type of drive does this screwdriver use?
A: The 41PA8PSQ4 uses a 1/4-inch hex quick-change drive for compatible screwdriver bits. - Q: How does the adjustable shut-off clutch help during fastening?
A: The clutch allows the fastening torque to be selected for the application and shuts the tool off when the applicable fastening condition is reached, helping provide controlled and repeatable fastening. - Q: What is the air consumption of the 41PA8PSQ4?
A: The published air consumption is 28 CFM, with a 1/4-inch NPT air inlet. - Q: Is the 41PA8PSQ4 reversible?
A: Yes. The tool features a one-handed reverse lever for convenient directional control.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Trigger Start | |||||||||
| 41PA24TSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Push-To-Start | |||||||||
| 41PA24PSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Trigger + Push-To-Start | |||||||||
| 41PA16TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.0 (1.36) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the Ingersoll Rand Screwdrivers proper for your assembly application please email info@intlairtool.com or call (800) 608-5210
- Type
- Screwdriver
- Grip Style
- Pistol
- Actuation
- Push to Start
- Torque Range (Nm)
- 1.7 - 11.3
- Torque Range (in-lbs)
- 15 - 100
- RPM
- 800
- Length (in.)
- 9.8
- Length (mm)
- 249
- Side to Center (mm)
- 22
- Side to Center (in.)
- 0.9
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 78
- Inlet Location
- Std
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 28
- Air Consumption (l/mn)
- 790
