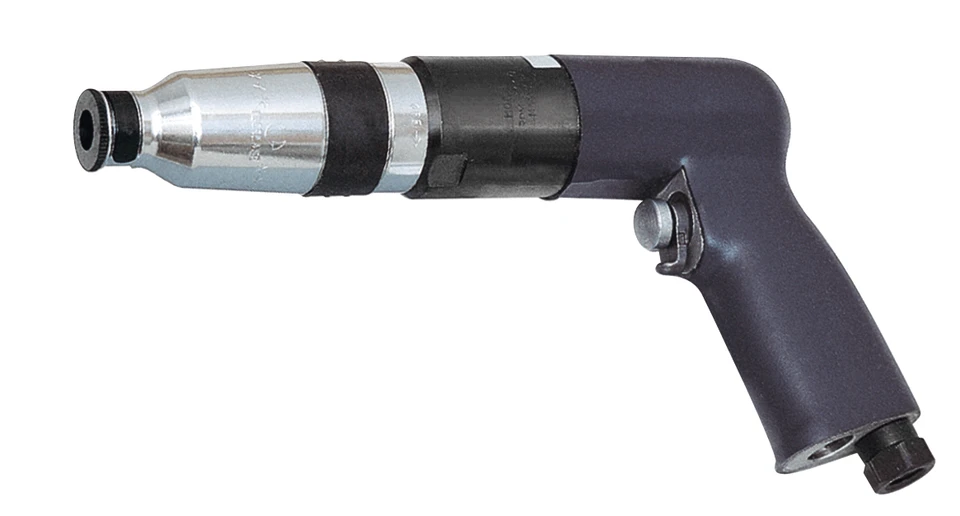

Ingersoll Rand 41PA10PSQ4 Pneumatic Screwdriver is designed for precision fastening applications involving plastics, composites, and metals. This 1,000 RPM pneumatic screwdriver features an adjustable shut-off clutch with a 15–80 in-lbs torque range, allowing fastening torque to be adjusted for the application. Its push-to-start actuation provides convenient operation during repetitive assembly, while the ergonomic pistol-grip design supports operator comfort and controlled fastening.
The 41PA10PSQ4 combines adjustable torque control with quick shut-off to help reduce air consumption and limit torque reaction. A 1/4" hex quick-change drive accepts compatible screwdriver bits, while the one-handed reverse lever provides convenient directional control. With 28 CFM air consumption, a 1/4" air inlet, and a 78 dBA sound level, this 41 Series screwdriver is suited to repetitive production fastening where consistent torque control is important.
Type: Pneumatic Screwdriver | Series: 41 Series | Grip Style: Pistol | Actuation: Push to Start | Torque Range: 15–80 in-lbs | Free Speed: 1,000 RPM | Drive Size: 1/4" | Drive Type: Hex Quick Change | Air Inlet: 1/4" | Air Consumption: 28 CFM | Sound Level: 78 dBA | Length: 9.8" | Side-to-Center: 0.9" | Weight: 3.1 lb
|
Feature:
|
 |
Made in USA:
Applications:
- Precision fastening of plastic components.
- Assembly of composite components.
- Metal fastening applications within the specified torque range.
- Production assembly lines requiring repeatable pneumatic fastening.
- Repetitive fastening operations where adjustable torque and quick shut-off are important.
FAQs:
- Q: What is the torque range of the 41PA10PSQ4?
A: The specified torque range is 15–80 in-lbs, equivalent to 1.7–9.0 Nm. - Q: What does the adjustable shut-off clutch do?
A: It allows the fastening torque to be adjusted for the application and provides shut-off operation when the selected fastening condition is reached. - Q: How does the 41PA10PSQ4 start?
A: This model uses push-to-start actuation, meaning the tool starts when the driver is pushed against the fastener. - Q: What type of drive does this screwdriver use?
A: The 41PA10PSQ4 uses a 1/4-inch hex quick-change drive for compatible screwdriver bits. - Q: Is the 41PA10PSQ4 reversible?
A: Yes. The tool features a one-handed reverse lever for convenient directional control. - Q: What is the air consumption of this screwdriver?
A: The published air consumption is 28 CFM, with a 1/4-inch air inlet.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Trigger Start | |||||||||
| 41PA24TSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Push-To-Start | |||||||||
| 41PA24PSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Trigger + Push-To-Start | |||||||||
| 41PA16TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.0 (1.36) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the Ingersoll Rand Screwdrivers proper for your assembly application please email info@intlairtool.com or call (800) 608-5210
- Type
- Screwdriver
- Grip Style
- Pistol
- Actuation
- Push to Start
- Torque Range (Nm)
- 1.7 - 9.0
- Torque Range (in-lbs)
- 15 - 80
- RPM
- 1000
- Length (in.)
- 9.8
- Length (mm)
- 249
- Side to Center (mm)
- 22
- Side to Center (in.)
- 0.9
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 78
- Inlet Location
- Std
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 28
- Air Consumption (l/mn)
- 790
